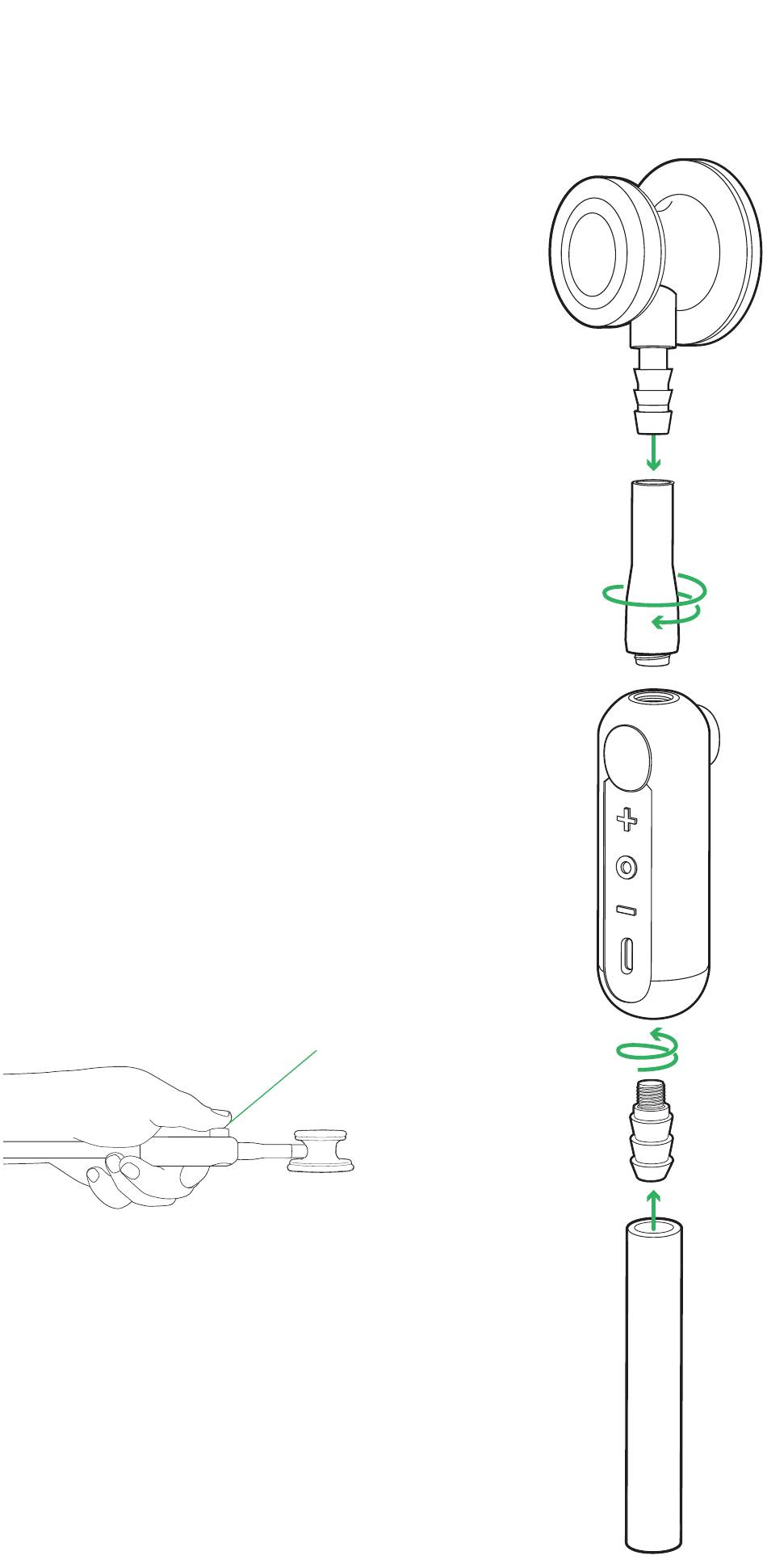

Assemble your CORE™
Step 1: Remove the
chestpiece from your
stethoscope by pulling the
chestpiece and tubing apart.
Step 2:
Screw the tubing
connector into the CORE™
and then insert the chestpiece
(for pediatric stethoscopes,
use the smaller connector).
Step 3:
Screw the barb
connector into the bottom
of the CORE™. Insert that
barb into the stethoscope/
earpiece tubing.
To Power ON and OFF
Press the power toggle to turn
the CORE™ on and off. Off is
when the toggle is protruding
from the surface of the volume
buttons. On is when the toggle
is flush with the surface of the
volume buttons.
User manual and support
Review the user manual before
using your Eko CORE™.
To view the manual visit:
ekohealth.com/ifu
For support, please visit:
support.ekohealth.com
Press On/Off
Power Toggle
Chestpiece
Tubing
Connector
CORE™
Barb
Connector
Stethoscope
Tubing
