Installation of wall-hung
Morsø 7370/7470
The wall mounting is supplied with 8 holes for
fixing to the wall with expanding bolts. A min-
imum of 4 of the 8 holes in the wall mounting
must be used to fix the oven to the wall.
The bolts must be sized to ensure that the wall
and the material it is made of are capable of
supporting the oven. The self weight of the oven
is 114 kg. The installer/ client must therefore
ensure that the wall/ chimney can support the
oven in an appropriate manner. Note that unit
chimneys and unlined ½ brick chimneys do not
always have the necessary load-bearing capac-
ity. If you are in any doubt, you should therefore
contact a qualified person.
The wall mounting may be used as a drilling
template. The minimum clearance to a flamma-
ble floor is 275 mm.
Note that plastic wall plugs must not be
used because of the effects of heat.
A wall bushing must be built in correctly to the
wall if a rear smoke outlet is wanted (see sketch)
and the wall mounting must be fitted to the wall.
After unpacking the basic oven, remove the
loose parts of the oven. The ash drawer, the
lower smoke baffle made of vermiculite, the
cast grate and the intermediate base should be
removed.

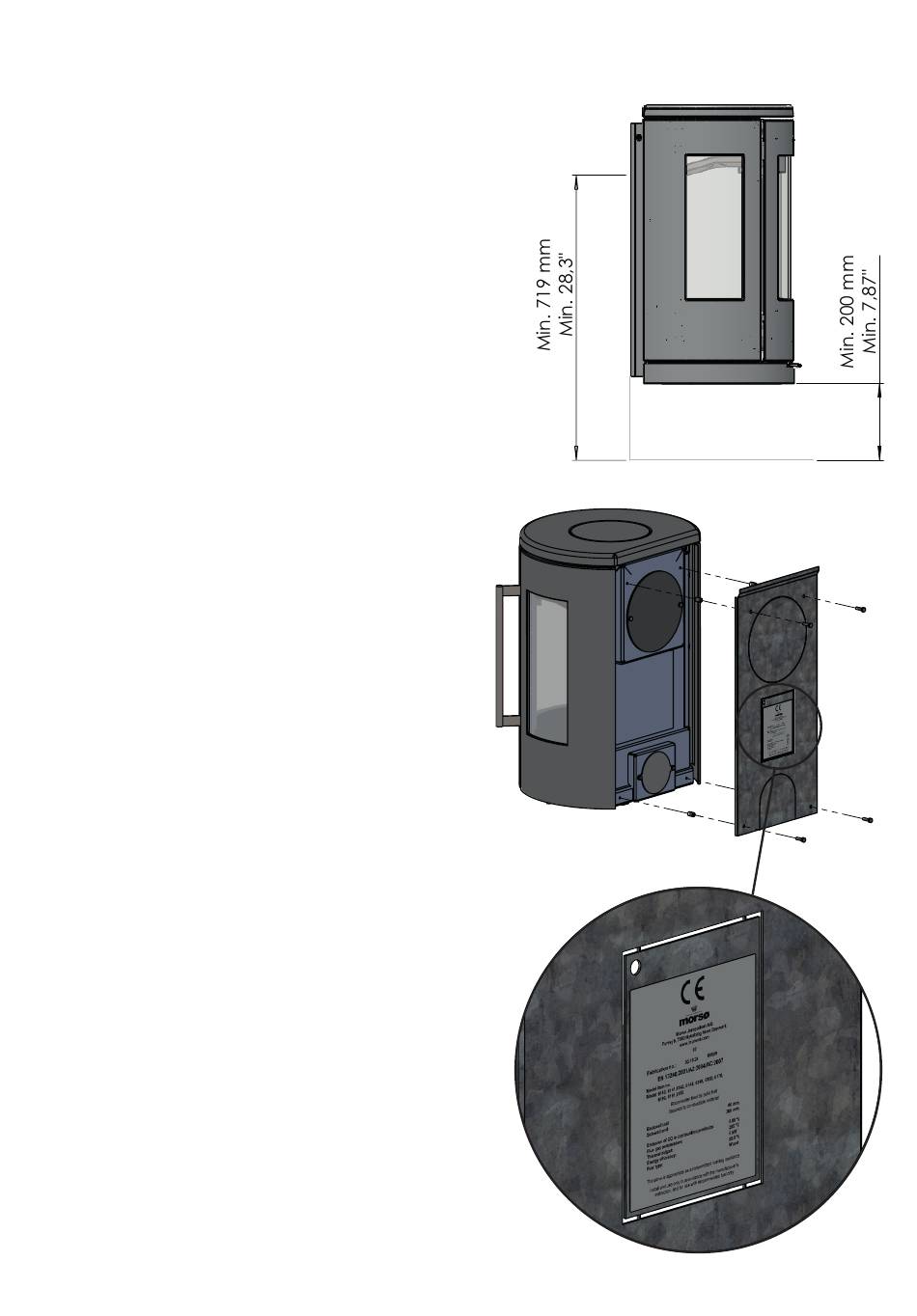

The heat screen on the rear of the oven must
be screwed off and must not be used with the
wall-hung version.
Place a spacer to the side of the heat shield, as
it will be used for mounting the CE label.
It is mandatory by law to have the CE label on
the stove. Therefore, the CE label must be
removed from the heat shield and mounted
underneath the stove, as shown on the next
page. If necessary, use a diagonal cutter to
remove the CE label from the heat shield.
