11.3

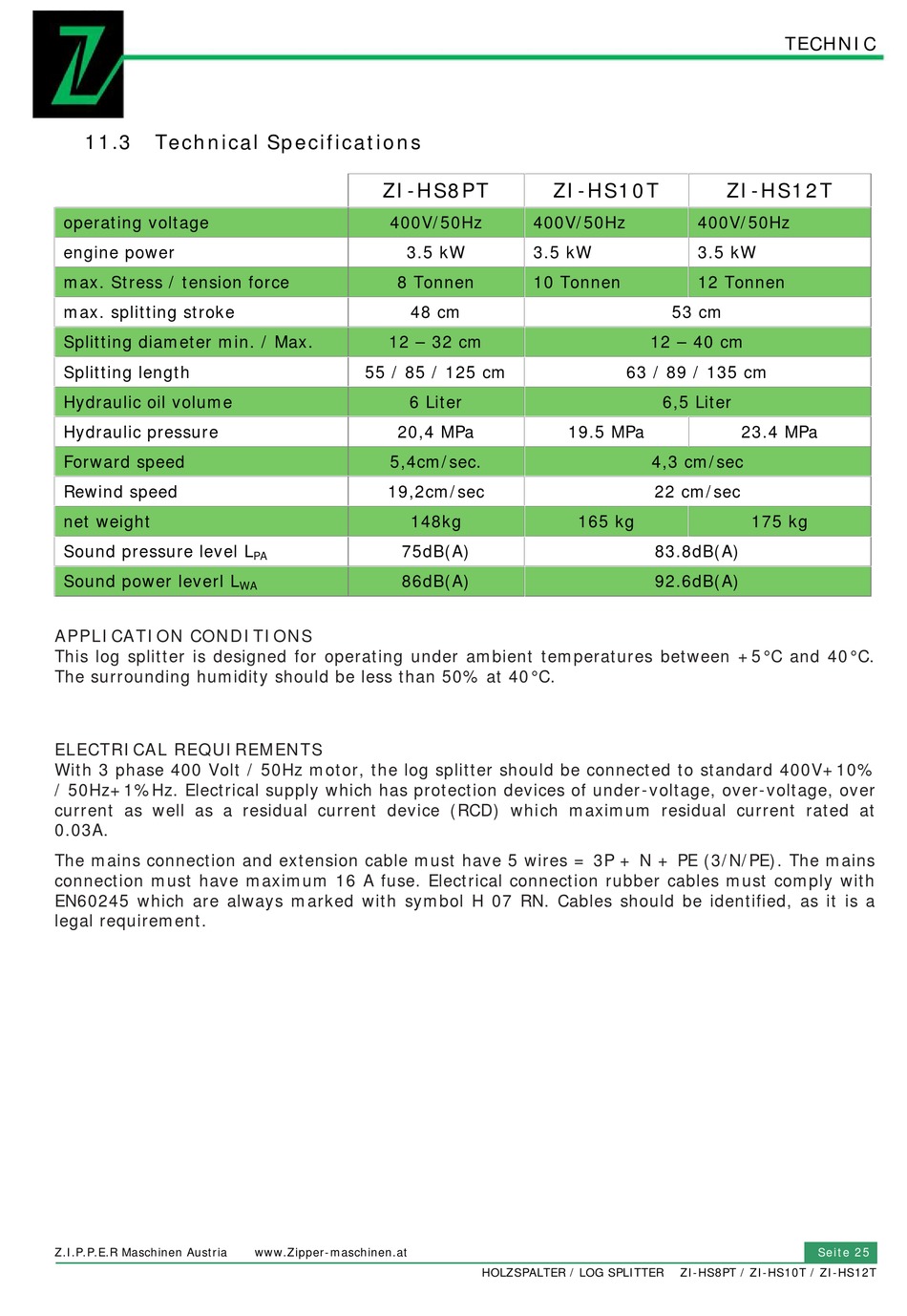

Technical Specifications

operating voltage
engine power
max. Stress / tension force
max. splitting stroke
Splitting diameter min. / Max.
Splitting length
Hydraulic oil volume
Hydraulic pressure
Forward speed
Rewind speed
net weight
Sound pressure level L
Sound power leverl L

APPLICATION CONDITIONS

This log splitter is designed for operating under ambient temperatures between +5°C and 40°C.
The surrounding humidity should be less than 50% at 40°C.

ELECTRICAL REQUIREMENTS

With 3 phase 400 Volt / 50Hz motor, the log splitter should be connected to standard 400V+10%
/ 50Hz+1%Hz. Electrical supply which has protection devices of under-voltage, over-voltage, over
current as well as a residual current device (RCD) which maximum residual current rated at
0.03A.
The mains connection and extension cable must have 5 wires = 3P + N + PE (3/N/PE). The mains
connection must have maximum 16 A fuse. Electrical connection rubber cables must comply with
EN60245 which are always marked with symbol H 07 RN. Cables should be identified, as it is a
legal requirement.
Z.I.P.P.E.R Maschinen Austria  www.Zipper-maschinen.at
ZI-HS8PT
400V/50Hz
3.5 kW
8 Tonnen
48 cm
12 – 32 cm
55 / 85 / 125 cm
6 Liter
20,4 MPa
5,4cm/sec.
19,2cm/sec
148kg
75dB(A)
PA
86dB(A)
WA
ZI-HS10T
400V/50Hz
3.5 kW
10 Tonnen
12 – 40 cm
63 / 89 / 135 cm
19.5 MPa
4,3 cm/sec
165 kg
HOLZSPALTER / LOG SPLITTER
TECHNIC
ZI-HS12T
400V/50Hz
3.5 kW
12 Tonnen
53 cm
6,5 Liter
23.4 MPa
22 cm/sec
175 kg
83.8dB(A)
92.6dB(A)
Seite 25
ZI-HS8PT / ZI-HS10T / ZI-HS12T
