11

TECHNIC

11.1

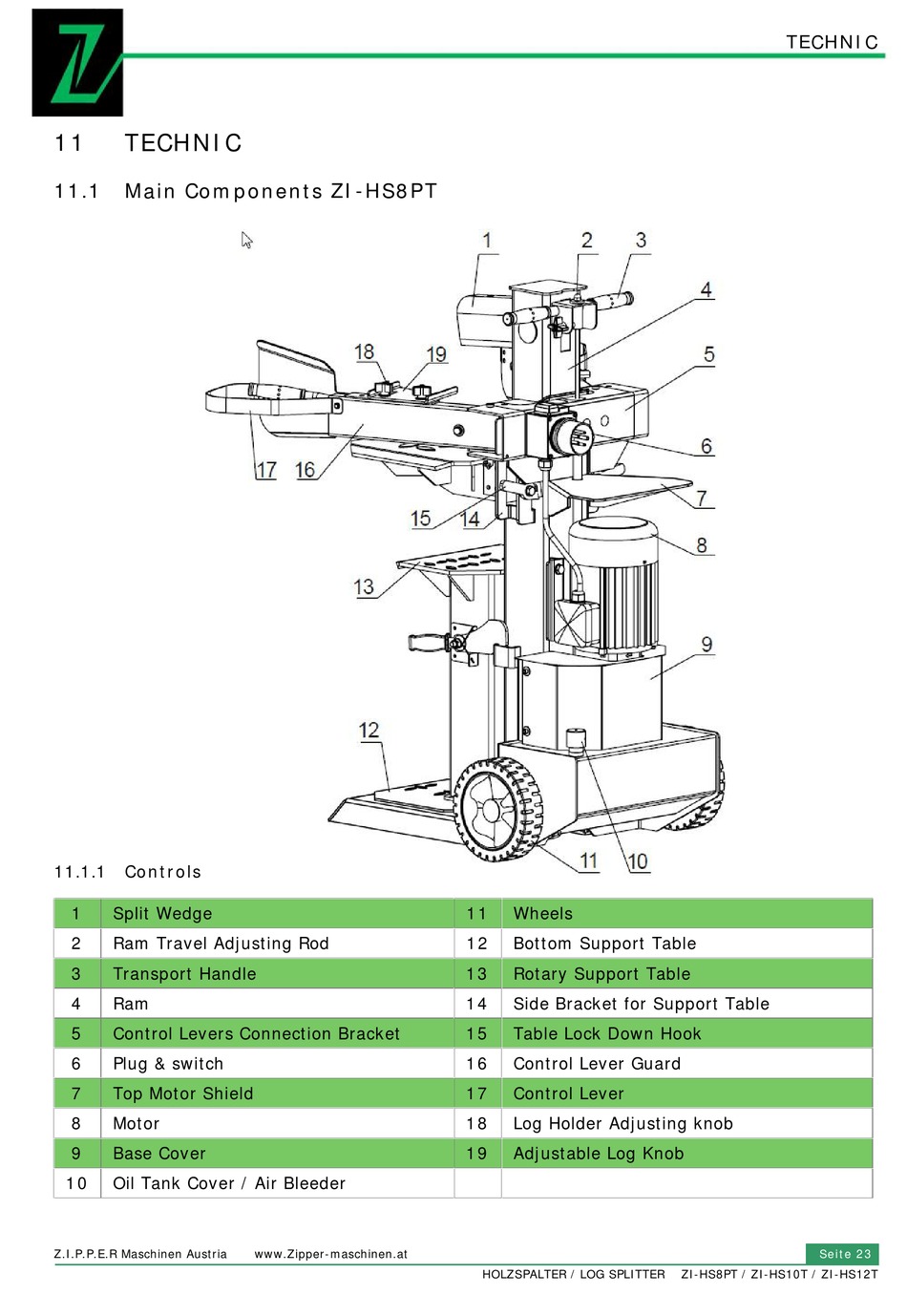

Main Components ZI-HS8PT

11.1.1 Controls

1
Split Wedge
2 Ram Travel Adjusting Rod
3 Transport Handle
4
Ram
5 Control Levers Connection Bracket
6 Plug & switch
7
Top Motor Shield
8 Motor
9 Base Cover
10 Oil Tank Cover / Air Bleeder
Z.I.P.P.E.R Maschinen Austria  www.Zipper-maschinen.at
11
Wheels
12 Bottom Support Table
13 Rotary Support Table
14
Side Bracket for Support Table
15 Table Lock Down Hook
16 Control Lever Guard
17
Control Lever
18 Log Holder Adjusting knob
19 Adjustable Log Knob
