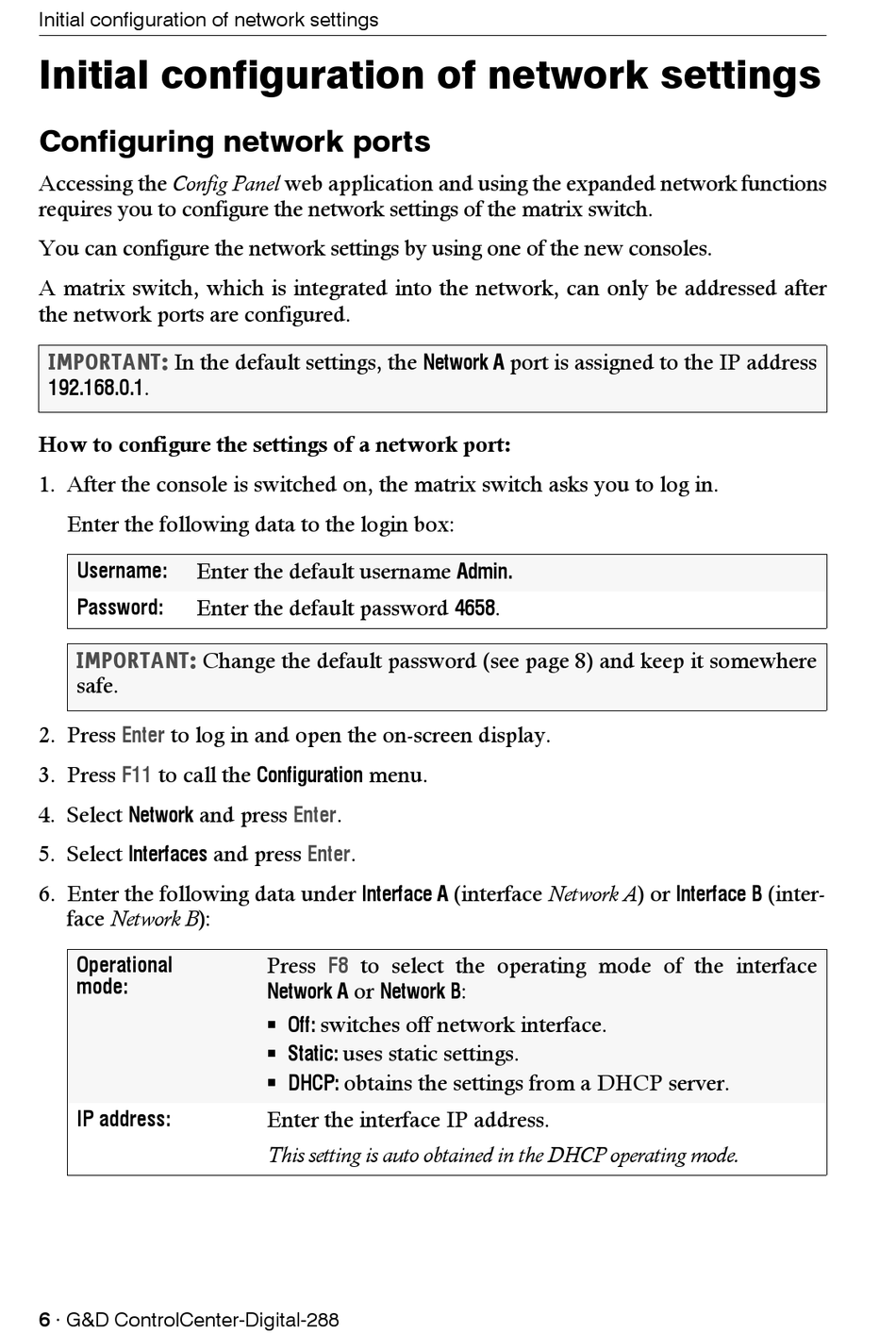

Initial configuration of network settings
Initial configuration of network settings
Configuring network ports
Accessing the Config Panel web application and using the expanded network functions
requires you to configure the network settings of the matrix switch.
You can configure the network settings by using one of the new consoles.
A matrix switch, which is integrated into the network, can only be addressed after
the network ports are configured.
IMPORTANT:
In the default settings, the
192.168.0.1
.
How to configure the settings of a network port:
1. After the console is switched on, the matrix switch asks you to log in.
Enter the following data to the login box:
Username:
Enter the default username
Password:
Enter the default password
IMPORTANT:
Change the default password (see page 8) and keep it somewhere
safe.
2. Press
to log in and open the on-screen display.
Enter
3. Press
to call the
F11
4. Select
Network
and press
5. Select
Interfaces
6. Enter the following data under
face Network B):
Operational
mode:
IP address:
6 · G&D ControlCenter-Digital-288
menu.
Configuration
Enter
.
and press
Enter
.
Interface A
Press
to select the operating mode of the interface
F8
or
Network A
Network B
switches off network interface.
 Off:
uses static settings.
 Static:
 DHCP:
obtains the settings from a DHCP server.
Enter the interface IP address.
This setting is auto obtained in the DHCP operating mode.
port is assigned to the IP address
Network A
Admin.
4658
.
(interface Network A) or
:
Interface B
(inter-
