Required accessories
 One or two category 5e (or better) twisted pair cables to connect the matrix switch
to one or two local networks.
Installing and connecting user modules
IMPORTANT: Follow the safety instructions given in the installation guide.
 Connect the console devices to the different user modules.
 Connect the Transmission interfaces of the individual user modules to one
Dynamic Port of a compatible IO card.
NOTE: We provide various variants of user modules to connect multiple signal types
and transmission media.
A detailed module list how to install them is given in the separate manual
Modules and User Modules

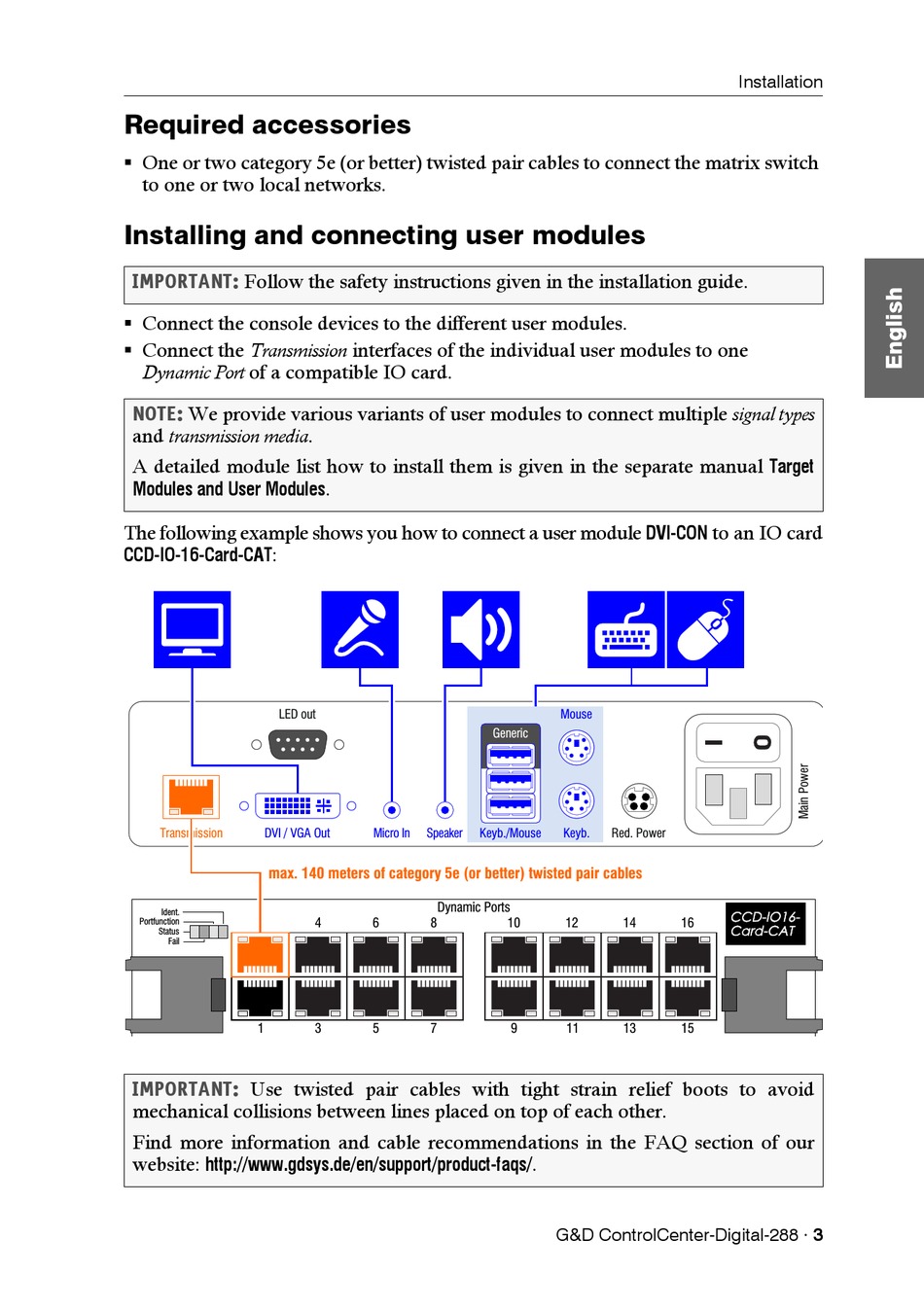

The following example shows you how to connect a user module
:
CCD-IO-16-Card-CAT
LED out
Transmission DVI / VGA Out
max. 140 meters of category 5e (or better) twisted pair cables
Ident.
Portfunction
Status
Fail
1
IMPORTANT:
Use twisted pair cables with tight strain relief boots to avoid
mechanical collisions between lines placed on top of each other.
Find more information and cable recommendations in the FAQ section of our
website: http://www.gdsys.de/en/support/product-faqs/
.
Micro In Speaker Keyb./Mouse
Dynamic Ports
4 6 8
3 5 7
DVI-CON
Mouse
Generic
Keyb. Red. Power
10 12 14
9 11 13
.
G&D ControlCenter-Digital-288 · 3
Installation
Target
to an IO card
16
15
