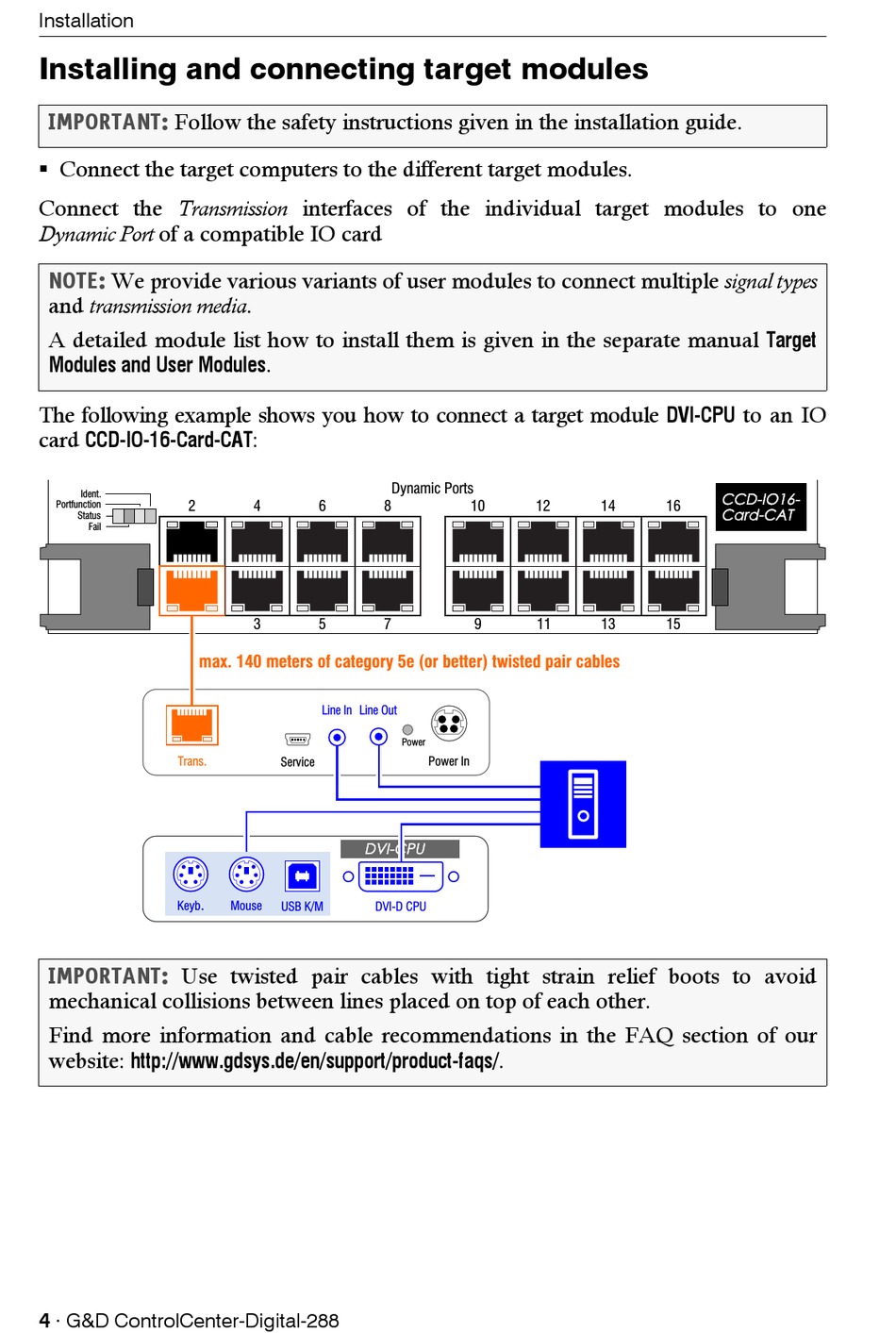

Installation
Installing and connecting target modules
IMPORTANT: Follow the safety instructions given in the installation guide.
 Connect the target computers to the different target modules.
Connect the Transmission interfaces of the individual target modules to one
Dynamic Port of a compatible IO card
NOTE:
We provide various variants of user modules to connect multiple signal types
and transmission media.
A detailed module list how to install them is given in the separate manual
Modules and User Modules
The following example shows you how to connect a target module
card CCD-IO-16-Card-CAT


&
* +
IMPORTANT:
Use twisted pair cables with tight strain relief boots to avoid
mechanical collisions between lines placed on top of each other.
Find more information and cable recommendations in the FAQ section of our
website:
http://www.gdsys.de/en/support/product-faqs/
