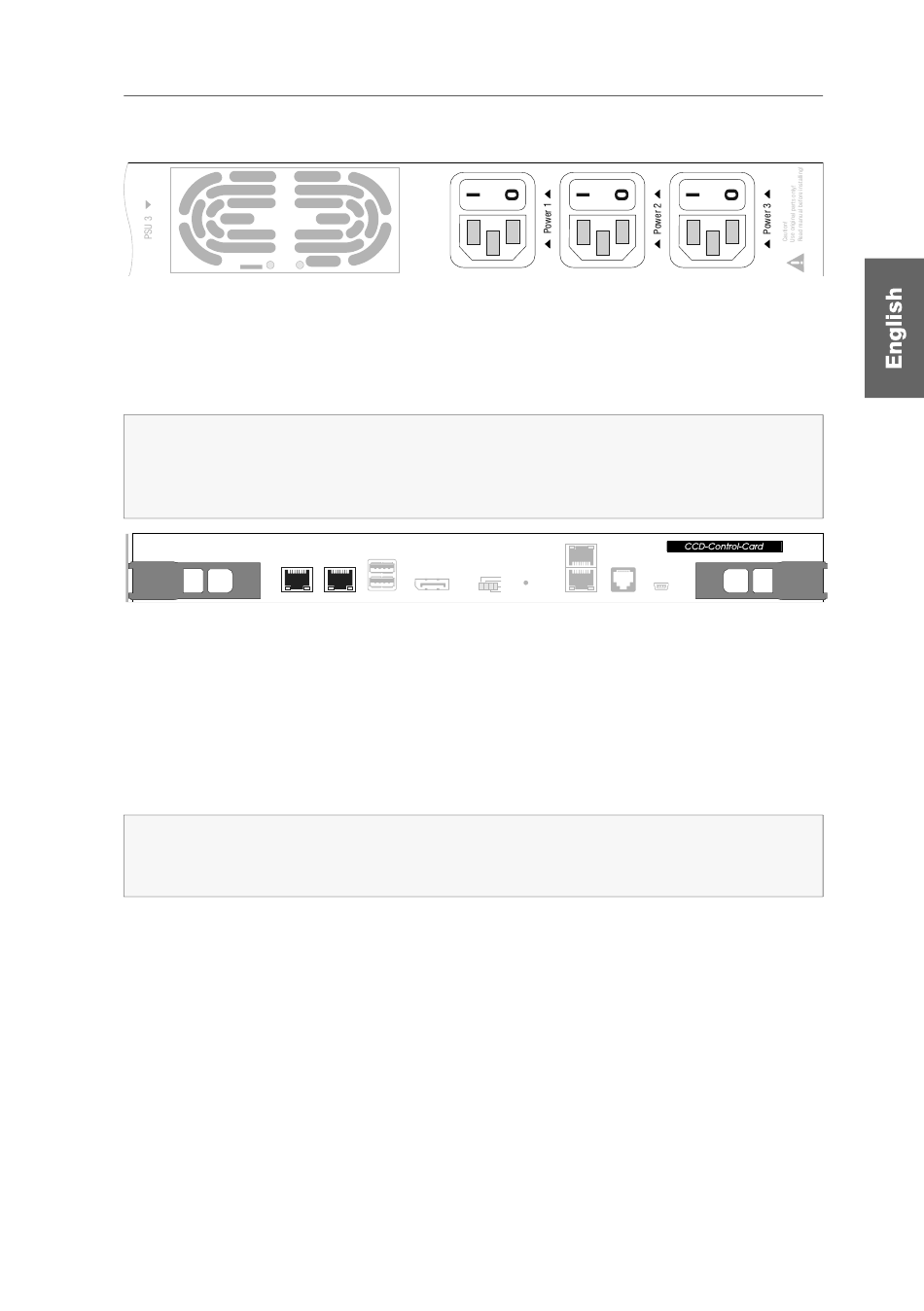

Power supply
AC DC
Connect one of the supplied power cables for each installed power supply
Power 1-3:
module. Connect the power cable with a power socket and turn on the power switch.
Network interfaces
NOTE:
Connect the matrix switch to one or two local networks to configure it via
the Config Panel web application and to use the enhanced network functionalities
(for example authentication against directory services, time sync via NTP server,
netfilter or syslog).
Network A
AC ok 1 2 3
DC ok
Plug in a category 5e (or better) twisted-pair cable, which is available as
Network A:
accessory.
Connect the other end of the cable to a network interface of the local network.
Plug in a category 5e (or better) twisted-pair cable, which is available as
Network B:
accessory.
Connect the other end of the cable to a network interface of the local network.
ADVICE: If you want to access the web application from one computer only, you can
connect the computer's network interface directly with one of the device's
interfaces.
USB
Network B DisplayPort
USB
Network A Network B DisplayPort
Bus IN
RS232 Service
Status Fail Service
Function Ident.
Status
Fail Ctrl
Ident. Bus IN
RS232 Service
Status
Ident. Fail Fail Ctrl Comm.
Fail Comm. Bus OUT
Bus OUT
