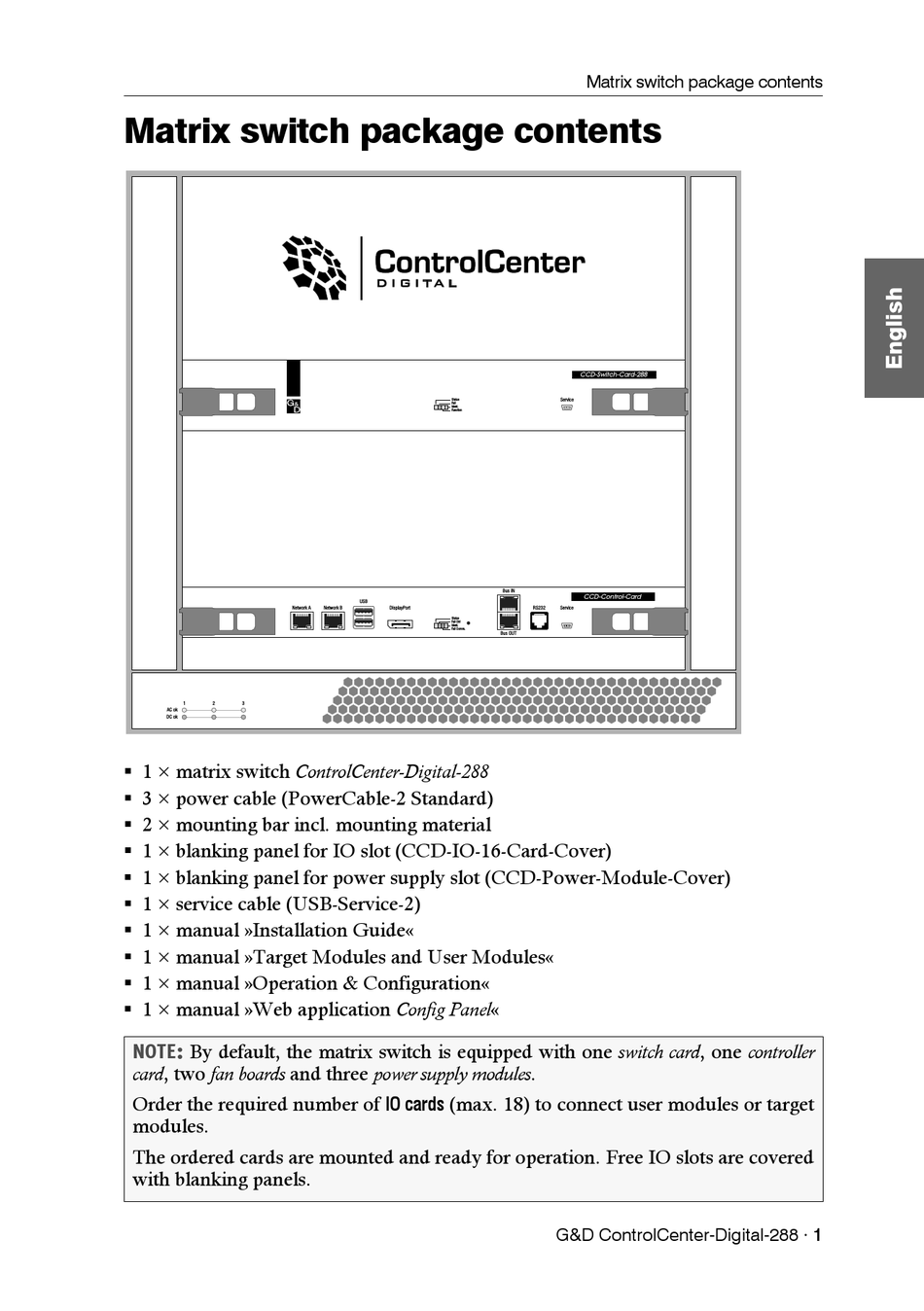

Matrix switch package contents
Network A
1 2 3
AC ok
DC ok
 1 × matrix switch ControlCenter-Digital-288
 3 × power cable (PowerCable-2 Standard)
 2 × mounting bar incl. mounting material
 1 × blanking panel for IO slot (CCD-IO-16-Card-Cover)
 1 × blanking panel for power supply slot (CCD-Power-Module-Cover)
 1 × service cable (USB-Service-2)
 1 × manual »Installation Guide«
 1 × manual »Target Modules and User Modules«
 1 × manual »Operation & Configuration«
 1 × manual »Web application Config Panel«
NOTE: By default, the matrix switch is equipped with one switch card, one controller
card, two fan boards and three power supply modules.
Order the required number of
modules.
The ordered cards are mounted and ready for operation. Free IO slots are covered
with blanking panels.
Status
Fail
Ident.
Function
USB
Network B DisplayPort
Status
Fail Ctrl
Ident.
Fail Comm.
(max. 18) to connect user modules or target
IO cards
Matrix switch package contents
Service
Bus IN
RS232 Service
Bus OUT
G&D ControlCenter-Digital-288 · 1
