2.1.3 OPF2 series X2 devices

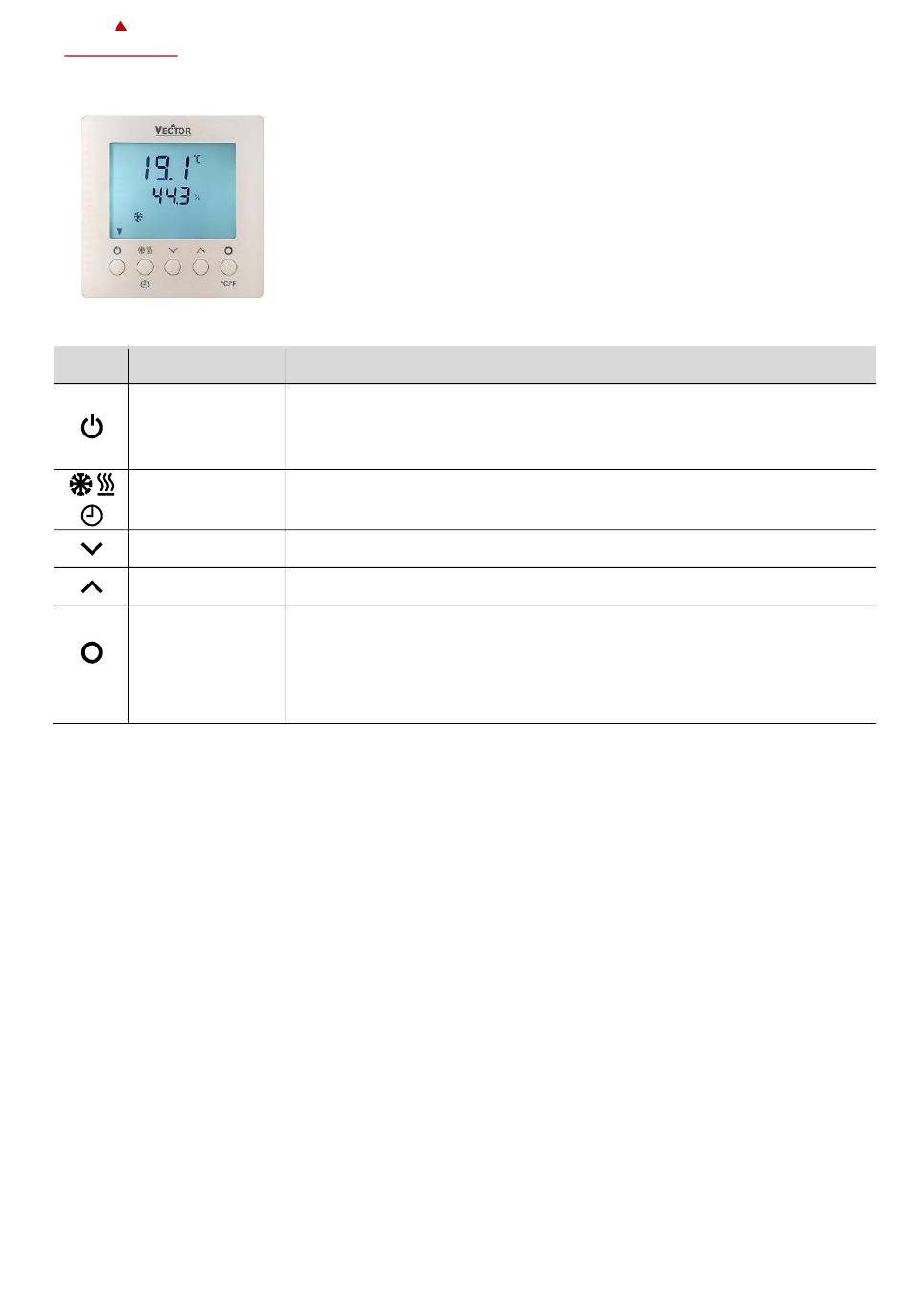

Figure 1: OPF2
Button
Function
Symbol
Operating mode
(Power)
(Back)
Controlling mode
Down
(-)
Up
(+)
Right
(Confirm, Enter)
Doc: 70-01-0950B, Serie X2, 20241121
Änderungen vorbehalten
Description
Operating mode selection (On / Off, Occupied / Unoccupied mode)
Press < 2 sec.: Toggle OCCUPIED / UNOCCUPIED mode or switch from OFF to ON
Press > 2 sec.: Turn unit OFF. Text OFF displayed
(Parameter setting: BACK to previous menu)
(Menu navigation: Back to previous/home menu)
Controlling mode (Heating / Cooling, clock setup)
Press < 2 sec.: Toggle HEATING / COOLING
Press > 2 sec.: Enter set-up CLOCK, set scheduling
Adjust temperature SET POINT
(Parameter setting: SCROLL menu options and parameters)
Adjust temperature SET POINT
(Parameter setting: SCROLL menu options and parameters)
Press < 2 sec :
Menu navigation: Next menu point
Alarms: Confirm the alarm
For fan coil controller: Select fan speed
Press > 2 sec.:
Change °C / °F, display UI/AO/Fan/DO and calibrate UI
(Parameter setting: ENTER to select menu option, accept parameter change)
