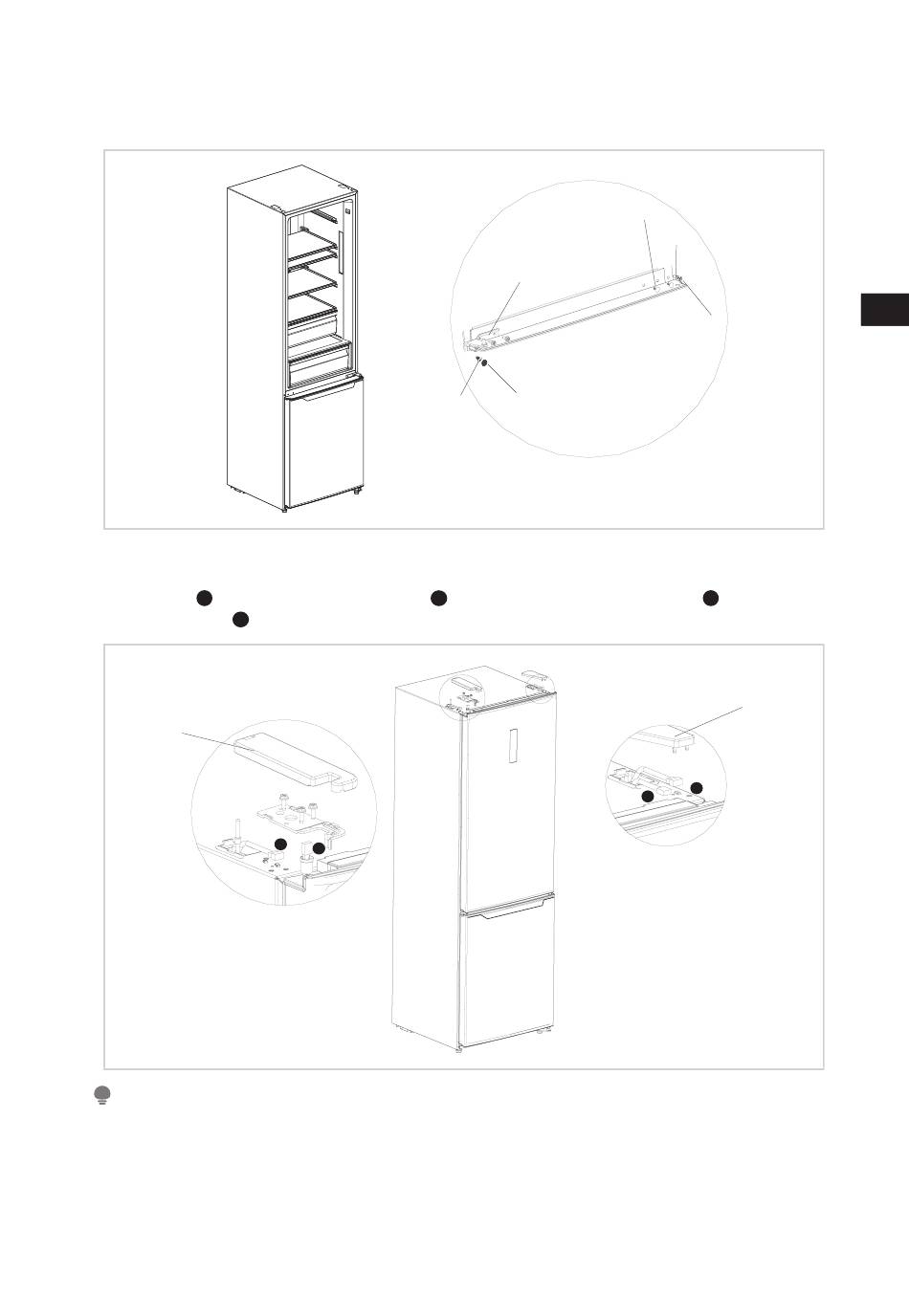

6. Put freezing door on bottom hinge, install middle hinge, hole caps, screw cover
and sticker.
7. Take out the left top hinge, left top hinge cover from accessories package.
Put refrigerating door on middle hinge, install top hinge. Connect signal line
terminal with signal line terminal
4
line terminal ; install top hinge cover and hole cover.
3
hinge cover
ATTENTION
The picture above is only for reference. The actual configuration will depend on the physical
product or statement by the distributor.
