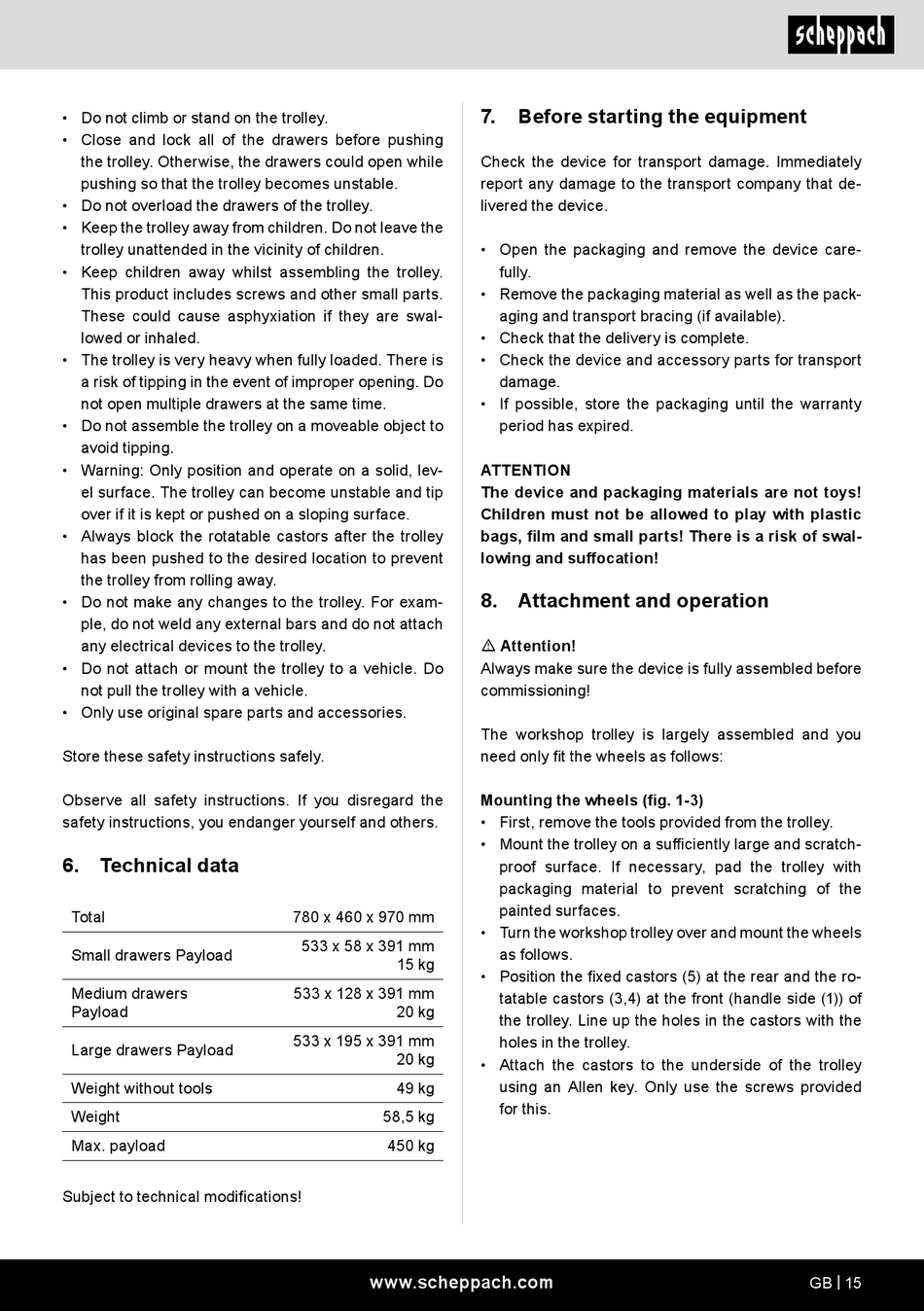

Scheppach TW1100 Original Bedienungsanleitung Seite 15

• Do not climb or stand on the trolley.
• Close and lock all of the drawers before pushing
the trolley. Otherwise, the drawers could open while
pushing so that the trolley becomes unstable.
• Do not overload the drawers of the trolley.
• Keep the trolley away from children. Do not leave the
trolley unattended in the vicinity of children.
• Keep children away whilst assembling the trolley.
This product includes screws and other small parts.
These could cause asphyxiation if they are swal-
lowed or inhaled.
• The trolley is very heavy when fully loaded. There is
a risk of tipping in the event of improper opening. Do
not open multiple drawers at the same time.
• Do not assemble the trolley on a moveable object to
avoid tipping.
• Warning: Only position and operate on a solid, lev-
el surface. The trolley can become unstable and tip
over if it is kept or pushed on a sloping surface.
• Always block the rotatable castors after the trolley
has been pushed to the desired location to prevent
the trolley from rolling away.
• Do not make any changes to the trolley. For exam-
ple, do not weld any external bars and do not attach
any electrical devices to the trolley.
• Do not attach or mount the trolley to a vehicle. Do
not pull the trolley with a vehicle.
• Only use original spare parts and accessories.
Store these safety instructions safely.
Observe all safety instructions. If you disregard the
safety instructions, you endanger yourself and others.
6. Technical data
Total
Small drawers Payload
Medium drawers
Payload
Large drawers Payload
Weight without tools
Weight
Max. payload
Subject to technical modifications!
780 x 460 x 970 mm
533 x 58 x 391 mm
15 kg
533 x 128 x 391 mm
20 kg
533 x 195 x 391 mm
20 kg
49 kg
58,5 kg
450 kg
www.scheppach.com
7. Before starting the equipment
Check the device for transport damage. Immediately
report any damage to the transport company that de-
livered the device.
• Open the packaging and remove the device care-
fully.
• Remove the packaging material as well as the pack-
aging and transport bracing (if available).
• Check that the delivery is complete.
• Check the device and accessory parts for transport
damage.
• If possible, store the packaging until the warranty
period has expired.
ATTENTION
The device and packaging materials are not toys!
Children must not be allowed to play with plastic
bags, film and small parts! There is a risk of swal-
lowing and suffocation!
8. Attachment and operation
m Attention!
Always make sure the device is fully assembled before
commissioning!
The workshop trolley is largely assembled and you
need only fit the wheels as follows:
Mounting the wheels (fig. 1-3)
• First, remove the tools provided from the trolley.
• Mount the trolley on a sufficiently large and scratch-
proof surface. If necessary, pad the trolley with
packaging material to prevent scratching of the
painted surfaces.
• Turn the workshop trolley over and mount the wheels
as follows.
• Position the fixed castors (5) at the rear and the ro-
tatable castors (3,4) at the front (handle side (1)) of
the trolley. Line up the holes in the castors with the
holes in the trolley.
• Attach the castors to the underside of the trolley
using an Allen key. Only use the screws provided
for this.
