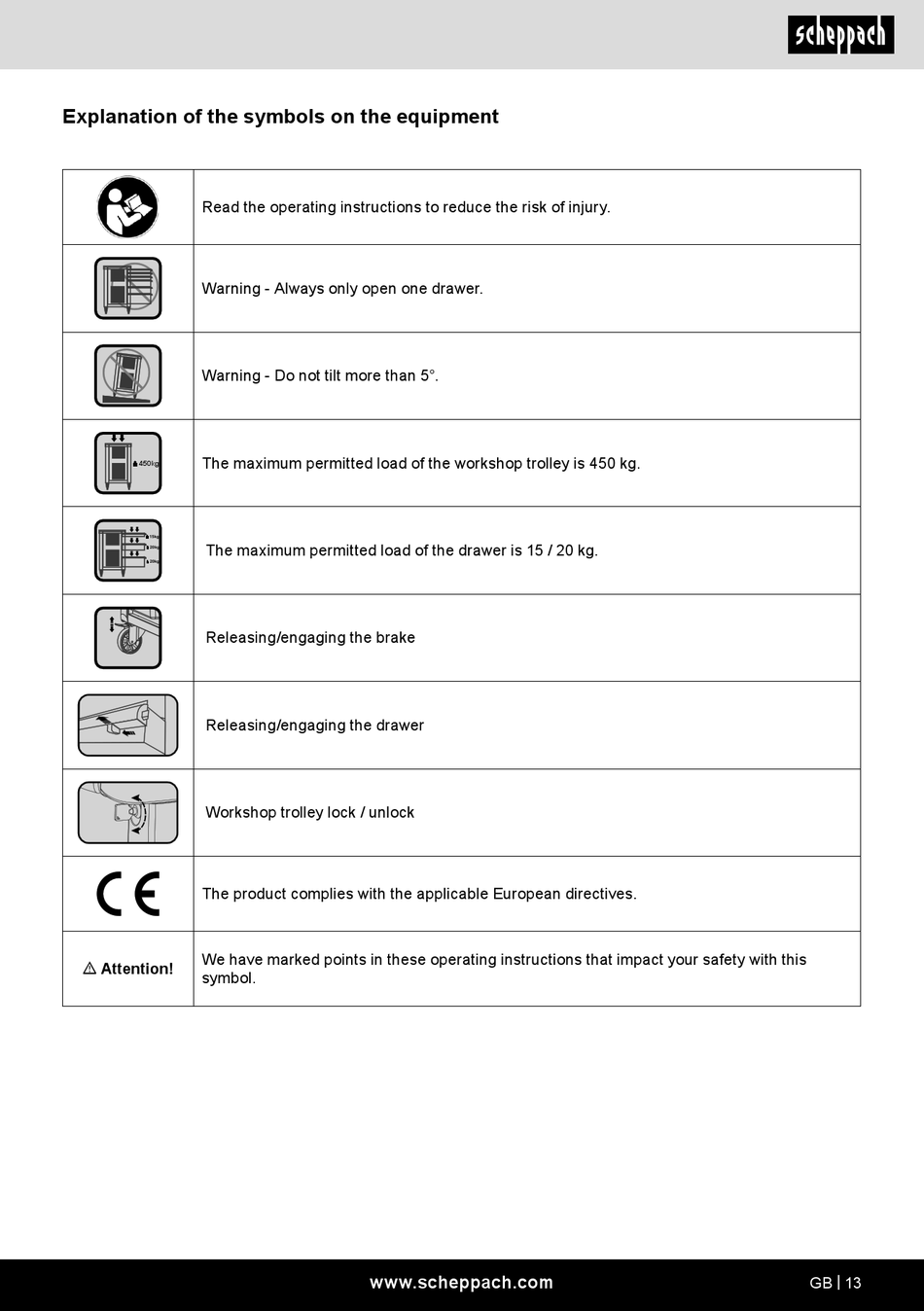

Explanation of the symbols on the equipment
Read the operating instructions to reduce the risk of injury.
Warning - Always only open one drawer.
Warning - Do not tilt more than 5°.
The maximum permitted load of the workshop trolley is 450 kg.
450kg
15kg
The maximum permitted load of the drawer is 15 / 20 kg.
20kg
20kg
Releasing/engaging the brake
Releasing/engaging the drawer
Workshop trolley lock / unlock
The product complies with the applicable European directives.
We have marked points in these operating instructions that impact your safety with this
m Attention!
symbol.
