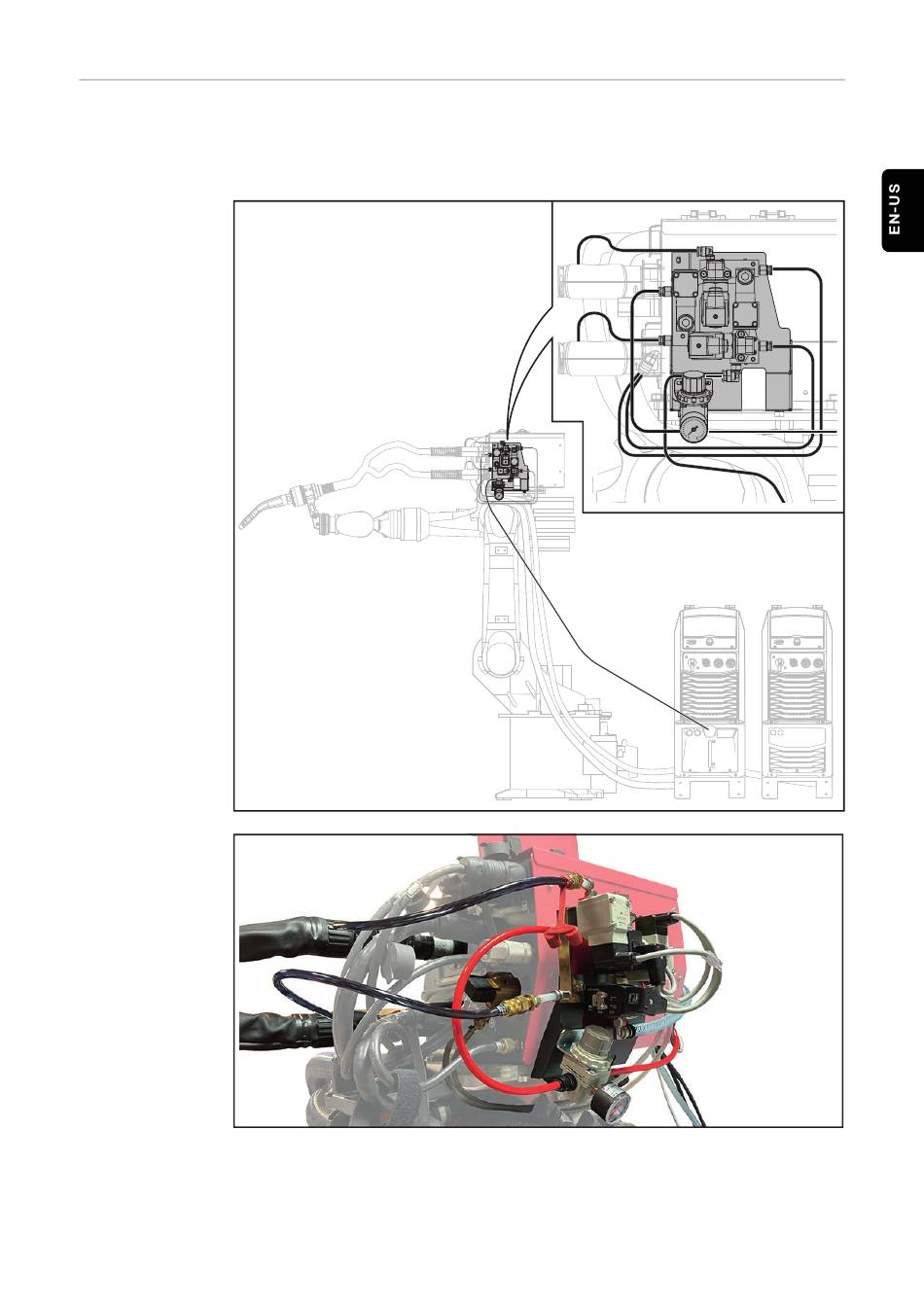

Application ex- TWIN welding system with OPT/HP ext. Torch deflate, mounted on TWIN wire-
ample feeder WF 30i TWIN
CU = cooling unit, TO = welding torch, AIR = compressed air
TO OUT
TO IN
AIR IN
CU TANK
CU IN
CU OUT
CU TANK
