Product Description - Stiga Ht 20 Li B Gebrauchsanweisung

2.

PRODUCT DESCRIPTION

This machine is a garden tool, specifically a portable
battery-powered garden hedge trimmer.
The machine is essentially composed of a motor which
drives a cutting means.
• Intended use and improper use
This machine was designed and manufactured for
cutting and trimming bushes and hedges comprising
shrubs with small branches.
Any other use that does not comply with the
above, can be dangerous and cause damage to
people and/or property. Examples of improper
use may include, but are not limited to:
• accumulation and collection of inflammable or
explosive products, hot embers or combustion
material without a flame, lit cigarettes, pieces
of glass, sharp objects, metal objects,
stones and any other object that could be
dangerous to the operator and others;
• aiming the air shot towards persons and/or animals;
• allowing object to enter the suction grid;
• using of the machine by more than one person.
IMPORTANT Improper use of the machine will void the
warranty and relieves the Manufacturer of any liability,
placing all responsibility for damage or injury, to him/
herself or third parties, on the user.
IMPORTANT The machine works only with both bat-
teries inserted.
NOTE he batteries can be charged directly on the ma-
T
chine with its charging dock
2.1. MACHINE COMPONENTS
(Fig. 1)
Engine
A.
B. Blade (cutting means)
C. Front hand grip
D. Rear hand grip
E. Blade protection
F. Battery
G. Battery charger
H. Rail
I. Charging dock
J. Loop
K. Screws and plastic dowels supplied

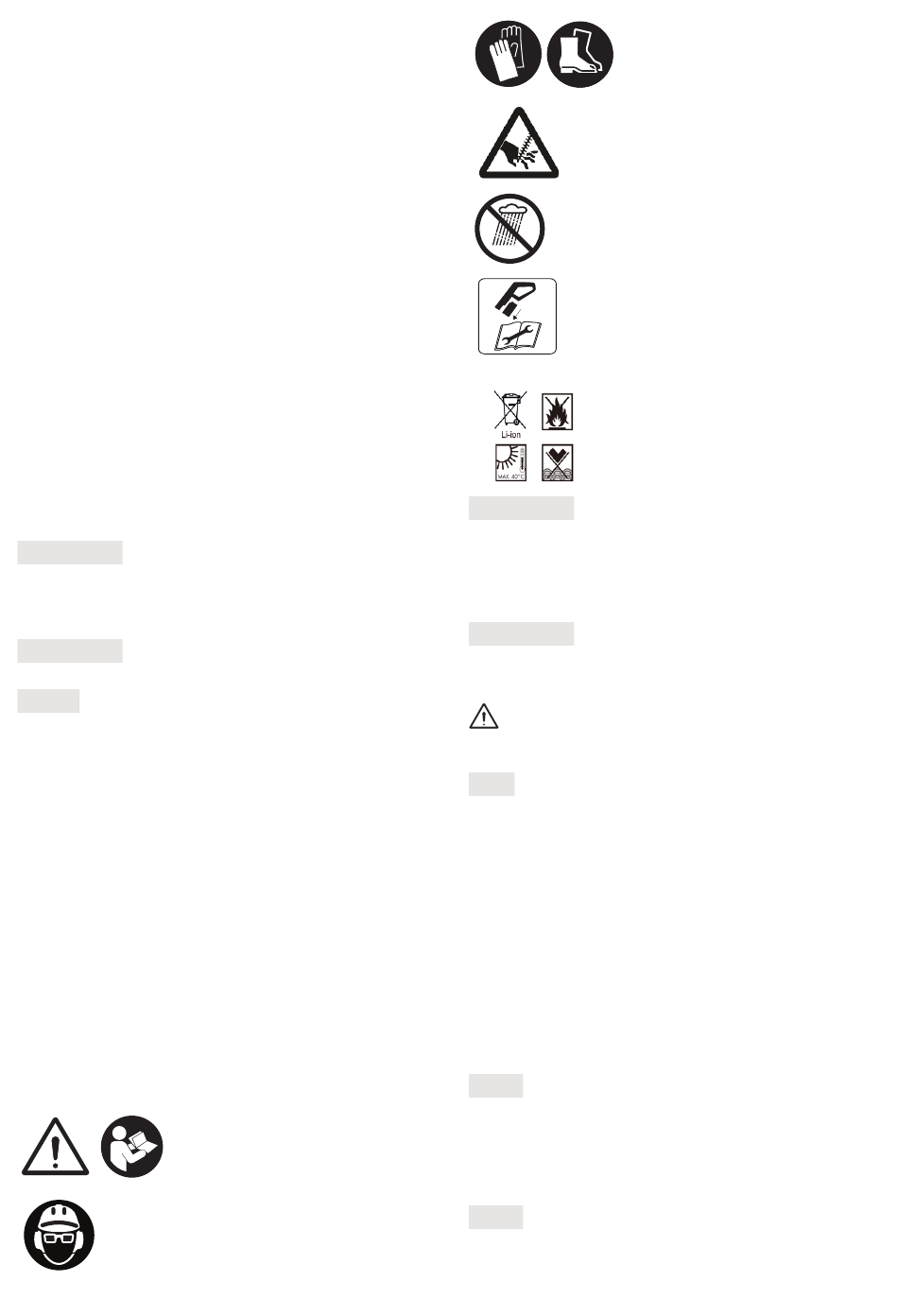

2.2. SAFETY SIGNS (FIG. 2)
WARNING!
Read the instructions before
operating the machine.
Use ear and headprotection,
and goggles.
.
IMPORTANT Any damaged or illegible decals must be
replaced. Order replacement decals from an Authorised
Service Centre
3. ASSEMBLY
IMPORTANT Unpacking and assembly must be
carried out on a flat, solid surface with sufficient space to
move the machine and the packaging.
Before assembling (if necessary), make sure
the batteries are not inserted in their housing
NOTE The machine can be hung on the wall,
making sure that the rear hand grip is in its original
position.
1. Assembling the charging base (Fig.3)
2. Mounting of the rail for fixing to the wall (Fig. 4)
4. CONTROLS
• Blade control locking button (Fig. 5.C)
Allows operation of the blade control lever (Fig. 5.A)..
• Blade control lever (Fig. 5.A)
Allows the blade (cutting device) to be operated.
NOTE The cutting device stops automatically when the
lever is released
• Safety switch (Fig. 5.B)
It must be held down together with the blade control lever
in order to operate the cutting device.
NOTE The cutting device stops automatically when the
safety switch is released
IT - 4
Wear non-slip safety footwear and
thick non-slip protective gloves
DANGER! Keep hands away from
blade
Do not leave the machine in the
rain (or in damp conditions).
Remove the battery
any inspection, cleaning
m a i n t e n a n c e / a d j u s t m e n t
operation on the machine
WARNING! For battery and battery
charger see the dedicated manual
before
or
.
.
