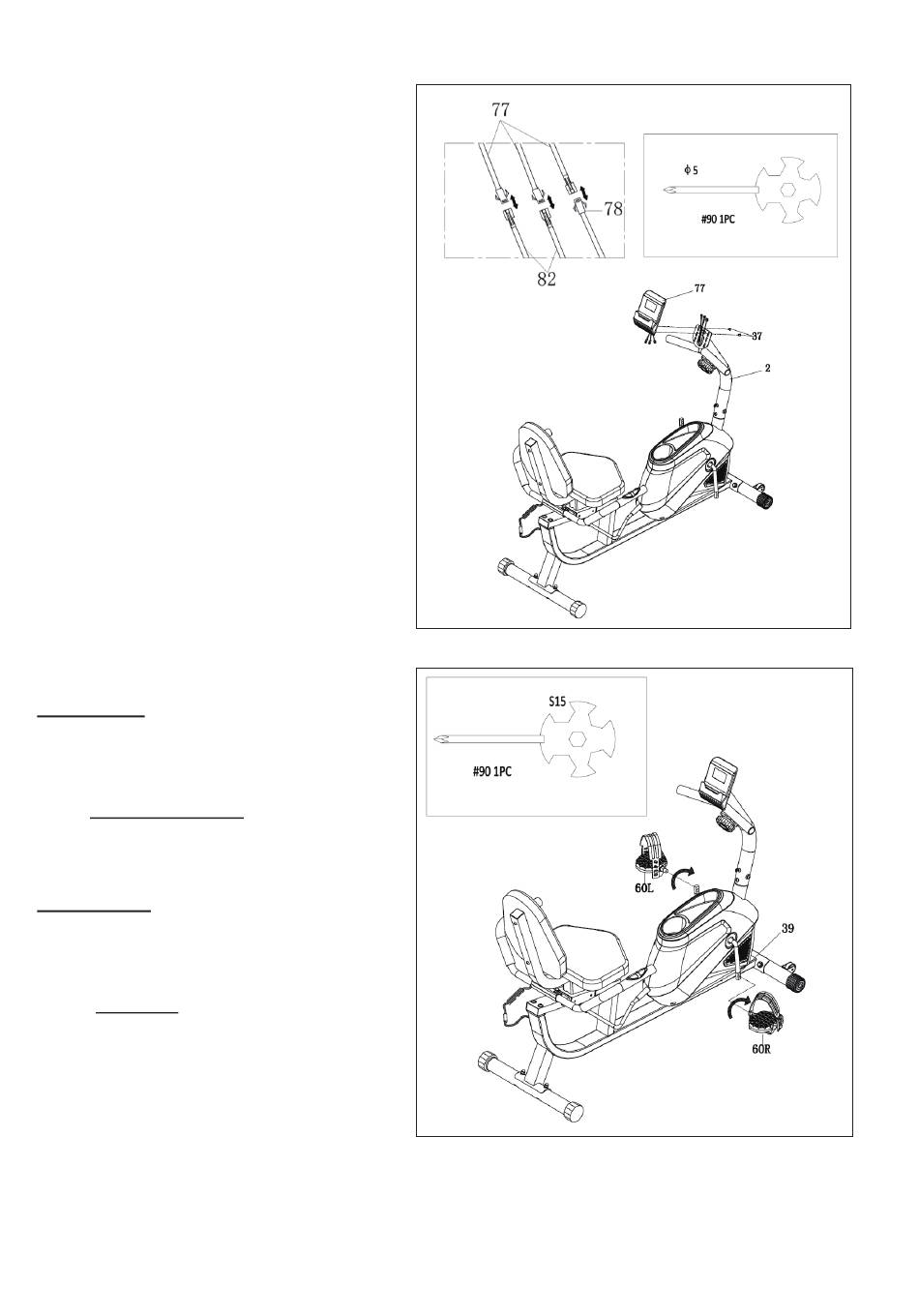

Step 8:
Connect 3 lines of Computer (No.77)
with 2 Hand Pulse Wires (No.82) and
Trunk Line (No.78) in turn. Then attach
the Computer (No.77) to the Front Post
(No.2) using 2 Bolts (No.37). Tighten
with Spanner (No.90).
Step 9:
Connect the Pedals (No.60L/R) onto the
Crank (No.39).
Left Pedal: Align the Left Pedal
(No.60L) with the Left Crank Arm
(No.39) at 90 degrees and gently insert
the pedal into the crank arm. Turn the
pedal counter-clockwise as tightly as you
can with your hand then secure with
Spanner (No.90).
Right Pedal: Align the Right Pedal
(No.60R) with the Right Crank Arm
(No.39) at 90 degrees and gently insert
the pedal into the crank arm. Turn the
pedal clockwise as tightly as you can
with your hand then secure with
Spanner (No.90).
Assembly is complete!
