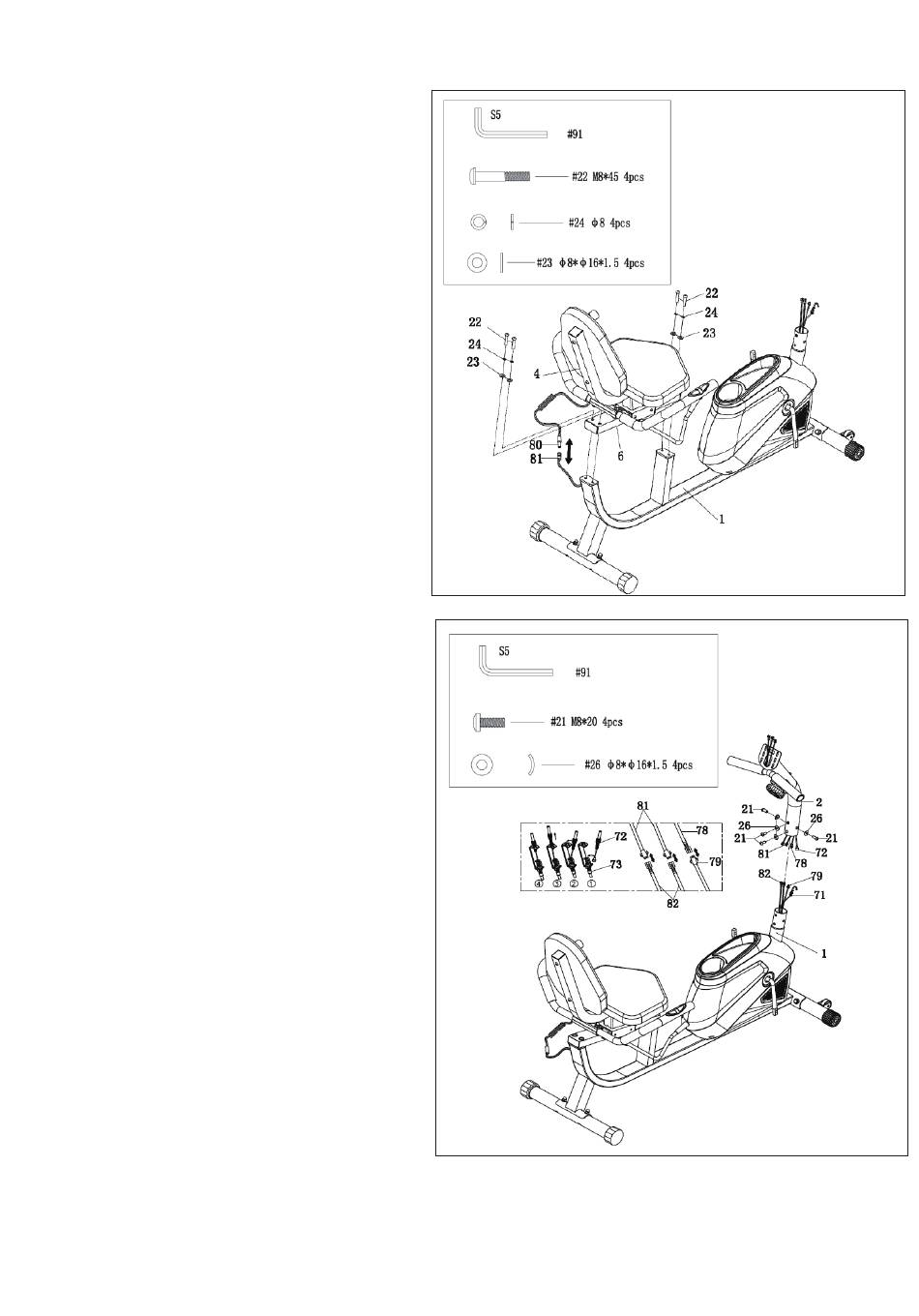

Step 6:
Attach the Cushion Frame (No.4) to the
Main Frame (No.1) using 4 Bolts
(No.22), 4 Spring Washers (No.24), and
4 Flat Washers (No. 23). Tighten with
Allen Wrench (No.91). Then connect the
Hand Pulse Sensor (No.80) with the
Hand Pulse Wire (No.81).
Step 7:
Set the Tension Knob (No.72) at level 1
to ensure the wire is at its longest length.
Insert the wire of Tension Knob (No.72)
to Tension Wire (No.73) as shown. Then
connect the Trunk Line (No.78) with the
Needle Sensor
connect 2 Hand Pulse Wires (No.81)
with 2 Hand Pulse Wires (No.82) as
shown.
Attach the Front Post (No.2) to the Main
Frame (No.1), making sure align the
screw holes, using 4 Bolts (No.21) and 4
Arc Washers (No.26), tighten with Allen
Wrench (No.91).
Line (No.79) and
