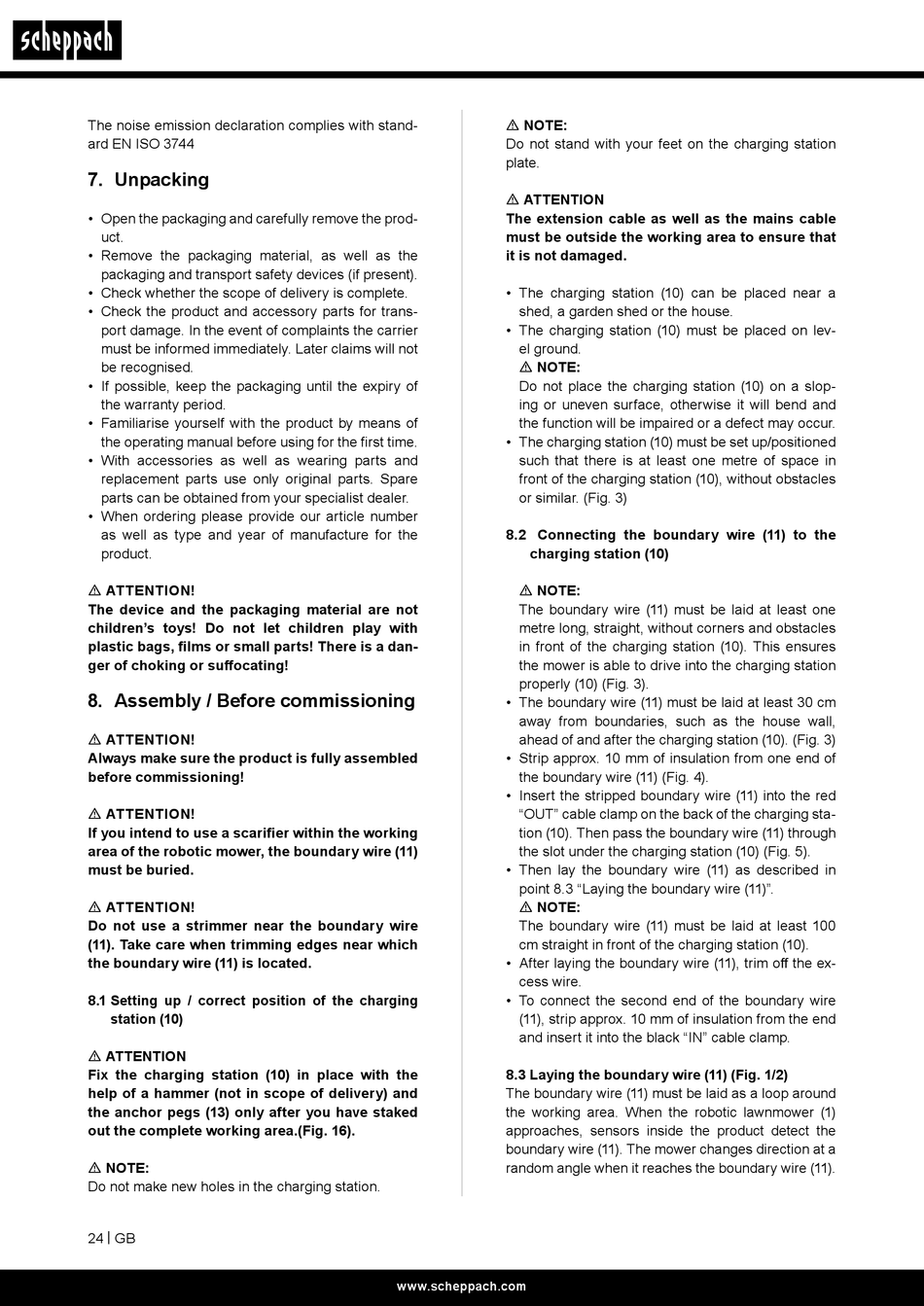

The noise emission declaration complies with stand-
ard EN ISO 3744

7. Unpacking

• Open the packaging and carefully remove the prod-
uct.
• Remove the packaging material, as well as the
packaging and transport safety devices (if present).
• Check whether the scope of delivery is complete.
• Check the product and accessory parts for trans-
port damage. In the event of complaints the carrier
must be informed immediately. Later claims will not
be recognised.
• If possible, keep the packaging until the expiry of
the warranty period.
• Familiarise yourself with the product by means of
the operating manual before using for the first time.
• With accessories as well as wearing parts and
replacement parts use only original parts. Spare
parts can be obtained from your specialist dealer.
• When ordering please provide our article number
as well as type and year of manufacture for the
product.
m ATTENTION!
The device and the packaging material are not
children's toys! Do not let children play with
plastic bags, films or small parts! There is a dan-
ger of choking or suffocating!

8. Assembly / Before commissioning

m ATTENTION!
Always make sure the product is fully assembled
before commissioning!
m ATTENTION!
If you intend to use a scarifier within the working
area of the robotic mower, the boundary wire (11)
must be buried.
m ATTENTION!
Do not use a strimmer near the boundary wire
(11). Take care when trimming edges near which
the boundary wire (11) is located.
8.1 Setting up / correct position of the charging
station (10)
m ATTENTION
Fix the charging station (10) in place with the
help of a hammer (not in scope of delivery) and
the anchor pegs (13) only after you have staked
out the complete working area.(Fig. 16).
m NOTE:
Do not make new holes in the charging station.
24 | GB
m NOTE:
Do not stand with your feet on the charging station
plate.
m ATTENTION
The extension cable as well as the mains cable
must be outside the working area to ensure that
it is not damaged.
• The charging station (10) can be placed near a
shed, a garden shed or the house.
• The charging station (10) must be placed on lev-
el ground.
m NOTE:
Do not place the charging station (10) on a slop-
ing or uneven surface, otherwise it will bend and
the function will be impaired or a defect may occur.
• The charging station (10) must be set up/positioned
such that there is at least one metre of space in
front of the charging station (10), without obstacles
or similar. (Fig. 3)
8.2 Connecting the boundary wire (11) to the
charging station (10)
m NOTE:
The boundary wire (11) must be laid at least one
metre long, straight, without corners and obstacles
in front of the charging station (10). This ensures
the mower is able to drive into the charging station
properly (10) (Fig. 3).
• The boundary wire (11) must be laid at least 30 cm
away from boundaries, such as the house wall,
ahead of and after the charging station (10). (Fig. 3)
• Strip approx. 10 mm of insulation from one end of
the boundary wire (11) (Fig. 4).
• Insert the stripped boundary wire (11) into the red
"OUT" cable clamp on the back of the charging sta-
tion (10). Then pass the boundary wire (11) through
the slot under the charging station (10) (Fig. 5).
• Then lay the boundary wire (11) as described in
point 8.3 "Laying the boundary wire (11)".
m NOTE:
The boundary wire (11) must be laid at least 100
cm straight in front of the charging station (10).
• After laying the boundary wire (11), trim off the ex-
cess wire.
• To connect the second end of the boundary wire
(11), strip approx. 10 mm of insulation from the end
and insert it into the black "IN" cable clamp.
8.3 Laying the boundary wire (11) (Fig. 1/2)
The boundary wire (11) must be laid as a loop around
the working area. When the robotic lawnmower (1)
approaches, sensors inside the product detect the
boundary wire (11). The mower changes direction at a
random angle when it reaches the boundary wire (11).
