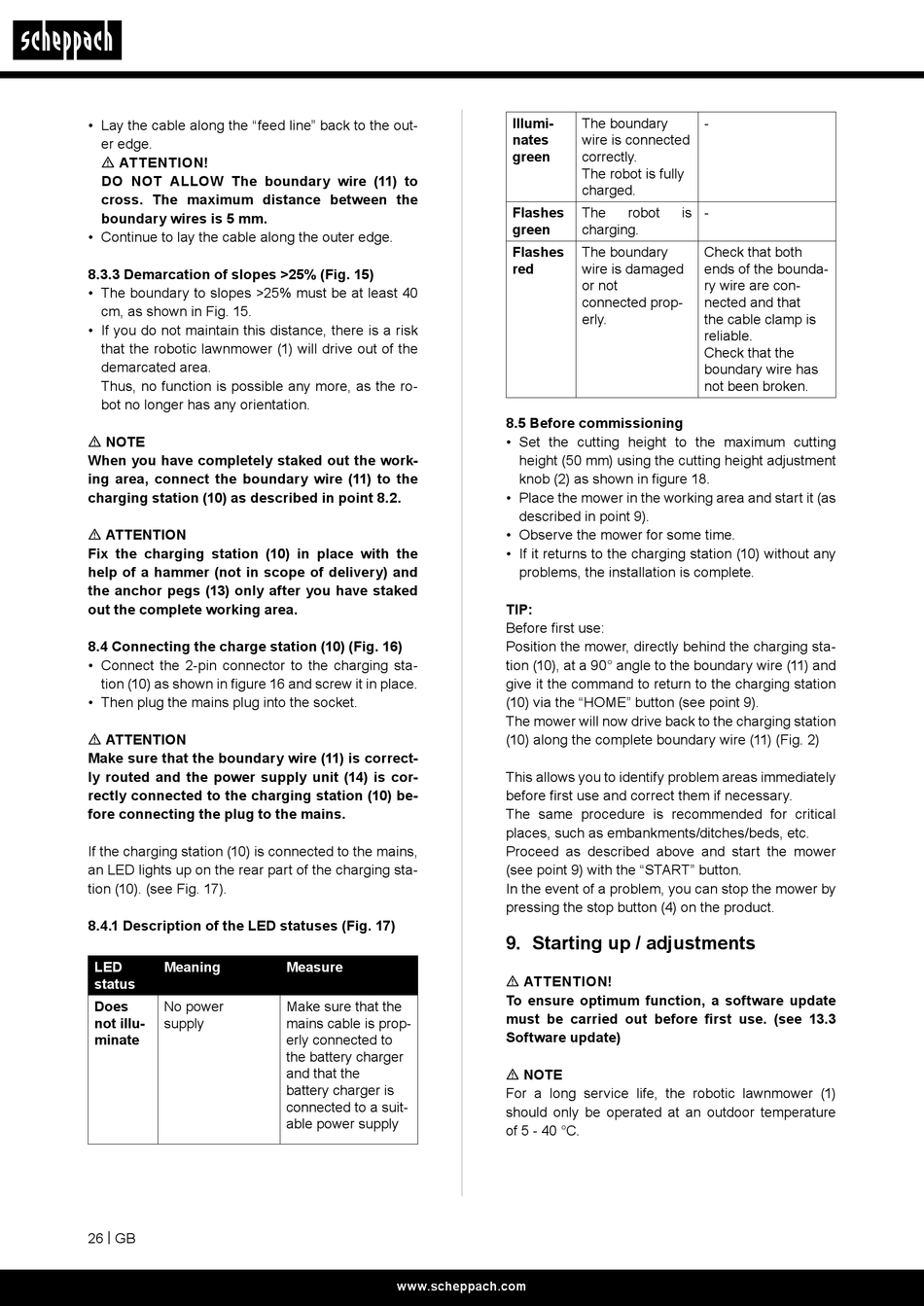

• Lay the cable along the "feed line" back to the out-
er edge.
m ATTENTION!
DO NOT ALLOW The boundary wire (11) to
cross. The maximum distance between the
boundary wires is 5 mm.
• Continue to lay the cable along the outer edge.
8.3.3 Demarcation of slopes >25% (Fig. 15)
• The boundary to slopes >25% must be at least 40
cm, as shown in Fig. 15.
• If you do not maintain this distance, there is a risk
that the robotic lawnmower (1) will drive out of the
demarcated area.
Thus, no function is possible any more, as the ro-
bot no longer has any orientation.
m NOTE
When you have completely staked out the work-
ing area, connect the boundary wire (11) to the
charging station (10) as described in point 8.2.
m ATTENTION
Fix the charging station (10) in place with the
help of a hammer (not in scope of delivery) and
the anchor pegs (13) only after you have staked
out the complete working area.
8.4 Connecting the charge station (10) (Fig. 16)
• Connect the 2-pin connector to the charging sta-
tion (10) as shown in figure 16 and screw it in place.
• Then plug the mains plug into the socket.
m ATTENTION
Make sure that the boundary wire (11) is correct-
ly routed and the power supply unit (14) is cor-
rectly connected to the charging station (10) be-
fore connecting the plug to the mains.
If the charging station (10) is connected to the mains,
an LED lights up on the rear part of the charging sta-
tion (10). (see Fig. 17).
8.4.1 Description of the LED statuses (Fig. 17)
LED
Meaning
status
Does
No power
not illu-
supply
minate
26 | GB
Measure
Make sure that the
mains cable is prop-
erly connected to
the battery charger
and that the
battery charger is
connected to a suit-
able power supply
www.scheppach.com
Illumi-
The boundary
nates
wire is connected
green
correctly.
The robot is fully
charged.
Flashes
The
robot
green
charging.
Flashes
The boundary
red
wire is damaged
or not
connected prop-
erly.
8.5 Before commissioning
• Set the cutting height to the maximum cutting
height (50 mm) using the cutting height adjustment
knob (2) as shown in figure 18.
• Place the mower in the working area and start it (as
described in point 9).
• Observe the mower for some time.
• If it returns to the charging station (10) without any
problems, the installation is complete.
TIP:
Before first use:
Position the mower, directly behind the charging sta-
tion (10), at a 90° angle to the boundary wire (11) and
give it the command to return to the charging station
(10) via the "HOME" button (see point 9).
The mower will now drive back to the charging station
(10) along the complete boundary wire (11) (Fig. 2)
This allows you to identify problem areas immediately
before first use and correct them if necessary.
The same procedure is recommended for critical
places, such as embankments/ditches/beds, etc.
Proceed as described above and start the mower
(see point 9) with the "START" button.
In the event of a problem, you can stop the mower by
pressing the stop button (4) on the product.
9. Starting up / adjustments
m ATTENTION!
To ensure optimum function, a software update
must be carried out before first use. (see 13.3
Software update)
m NOTE
For a long service life, the robotic lawnmower (1)
should only be operated at an outdoor temperature
of 5 - 40 °C.
-
is
-
Check that both
ends of the bounda-
ry wire are con-
nected and that
the cable clamp is
reliable.
Check that the
boundary wire has
not been broken.
