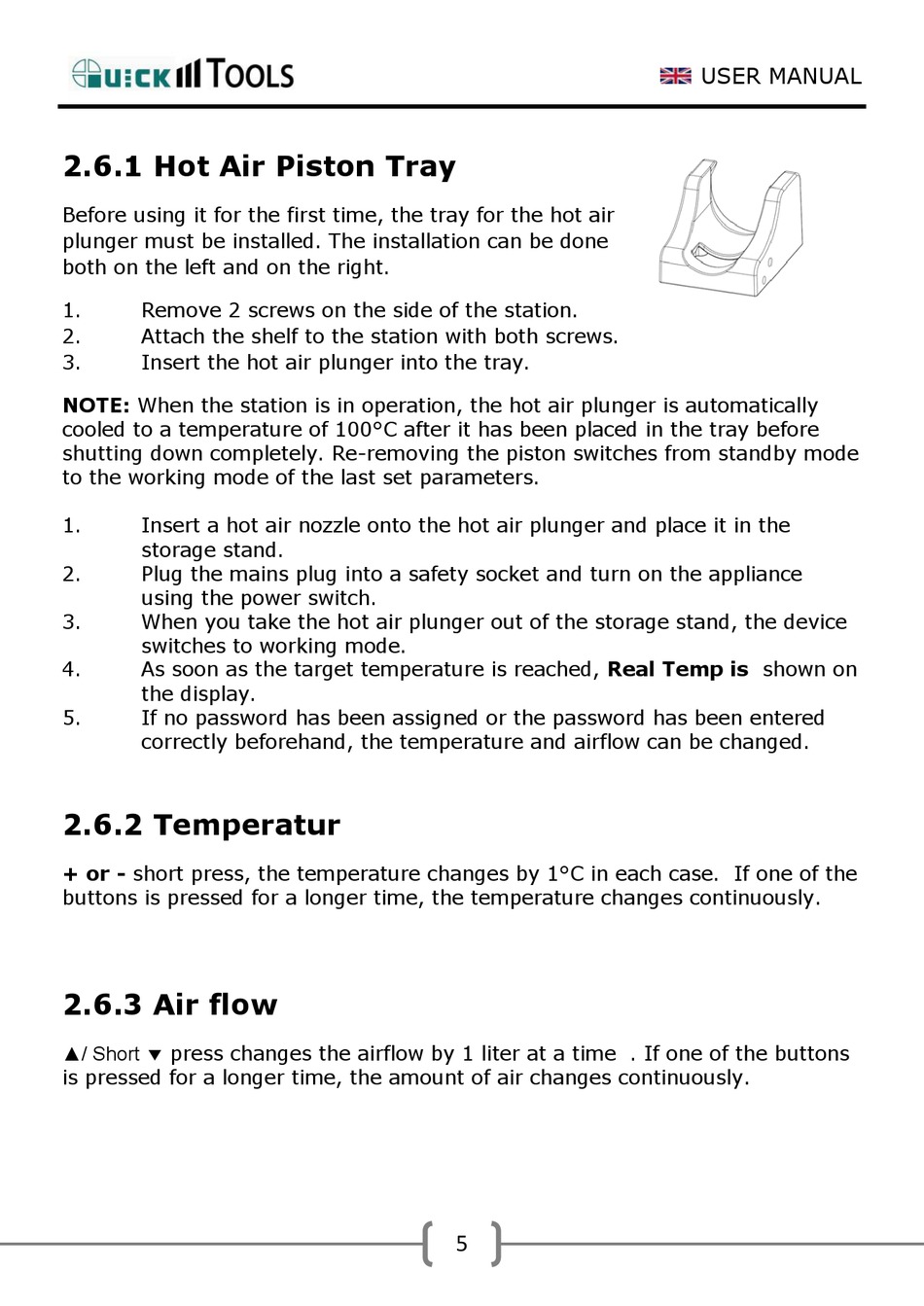

Quick Tools QU862DW+ Bedienungsanleitung Seite 19

2.6.1 Hot Air Piston Tray
Before using it for the first time, the tray for the hot air
plunger must be installed. The installation can be done
both on the left and on the right.
1. Remove 2 screws on the side of the station.
2. Attach the shelf to the station with both screws.
3. Insert the hot air plunger into the tray.
NOTE: When the station is in operation, the hot air plunger is automatically
cooled to a temperature of 100°C after it has been placed in the tray before
shutting down completely. Re-removing the piston switches from standby mode
to the working mode of the last set parameters.
1. Insert a hot air nozzle onto the hot air plunger and place it in the
storage stand.
2. Plug the mains plug into a safety socket and turn on the appliance
using the power switch.
3. When you take the hot air plunger out of the storage stand, the device
switches to working mode.
4. As soon as the target temperature is reached, Real Temp is shown on
the display.
5. If no password has been assigned or the password has been entered
correctly beforehand, the temperature and airflow can be changed.
2.6.2 Temperatur
+ or - short press, the temperature changes by 1°C in each case. If one of the
buttons is pressed for a longer time, the temperature changes continuously.
2.6.3 Air flow
▲/ Short  press changes the airflow by 1 liter at a time . If one of the buttons
is pressed for a longer time, the amount of air changes continuously.
5
USER MANUAL
