INSTALLATION
GB
ELECTRIC CONNECTIONS
The remote control complies with EMC standards (electromagnetic compatibility) but requires correct
installation to avoid compromising its performance and that of the surronding instruments.
For this reason the remote control wires must be positioned at a distance of at least:
• 1 m away from cables that carry radio signals (except SSB radio transmitters).
• 2 m away from cables for SSB radio transmitter signals.
Follow the rules below to construct the electrical installation relative of the remote control:
• Connect the remote control connectors to the connectors coming from the thrusters.
• Put in a switch, to turn on and shut off the remote control (not provided).
• Position the switch so that it is within easy reach should it be necessary to shut off the remote control
in an emergency.
• Insert a 8A quick-acting fuse on the remote control power supply line (not provided).
• Use wires, for the remote control power supply, with a correct cross section according to their length.
• Do not use supply from the motors or thrusters battery circuit for the remote control.
• Before switching on the power to the remote control, check that all the electrical connections are cor-
rect.

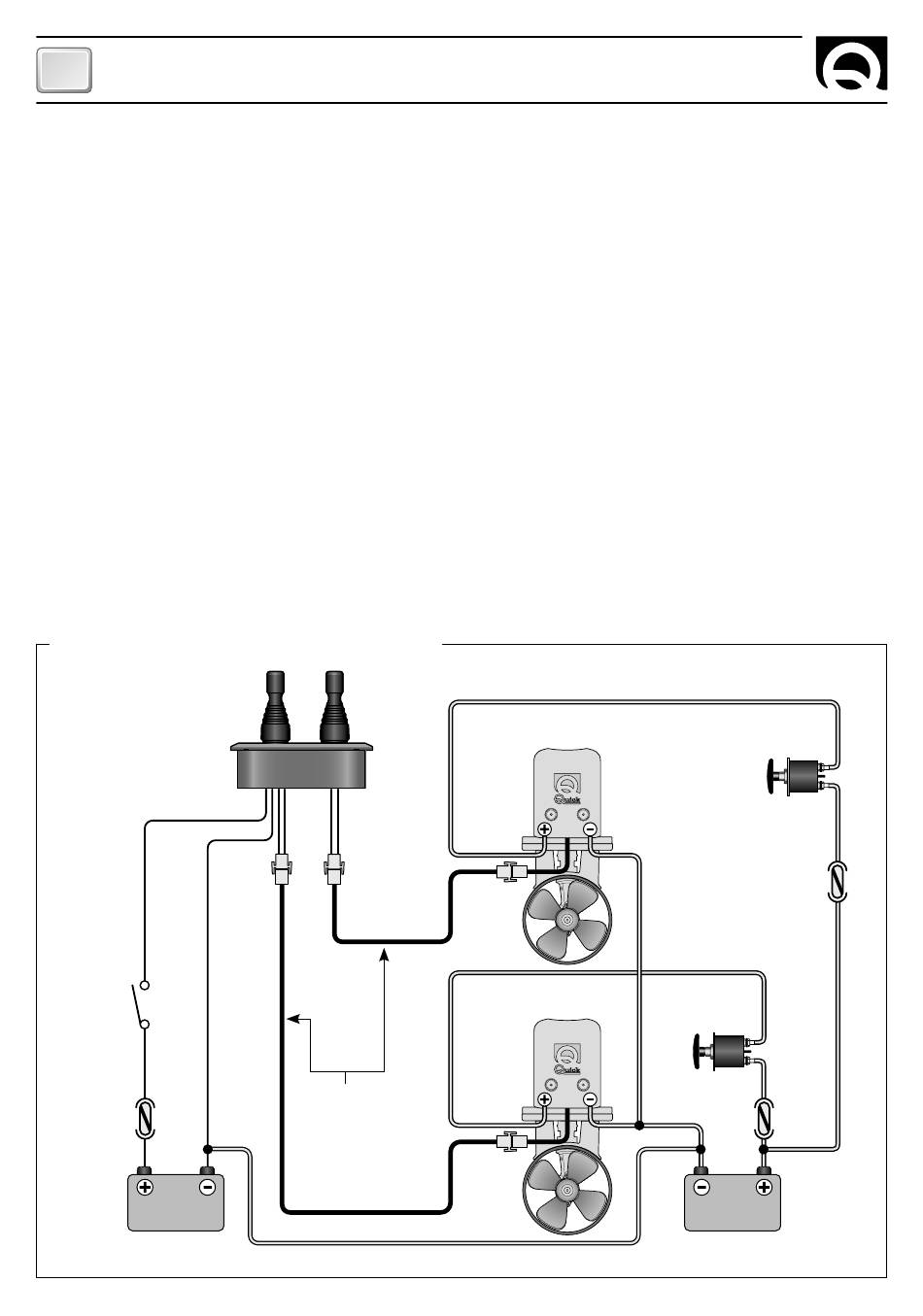

ELECTRICAL CONNECTIONS DIAGRAM
RED
SWITCH
FUSE
*
SERVICE
BATTERY
* Common negative for the battery groups.
16
BLACK
CONTROL CABLE
EXTENSIONS
(OPTIONALS)
STERN THRUSTER
MOTOR
BOW THRUSTER
MOTOR
BATTERY
ISOLATOR
FUSE
BATTERY
ISOLATOR
FUSE
*
THRUSTERS
BATTERY
