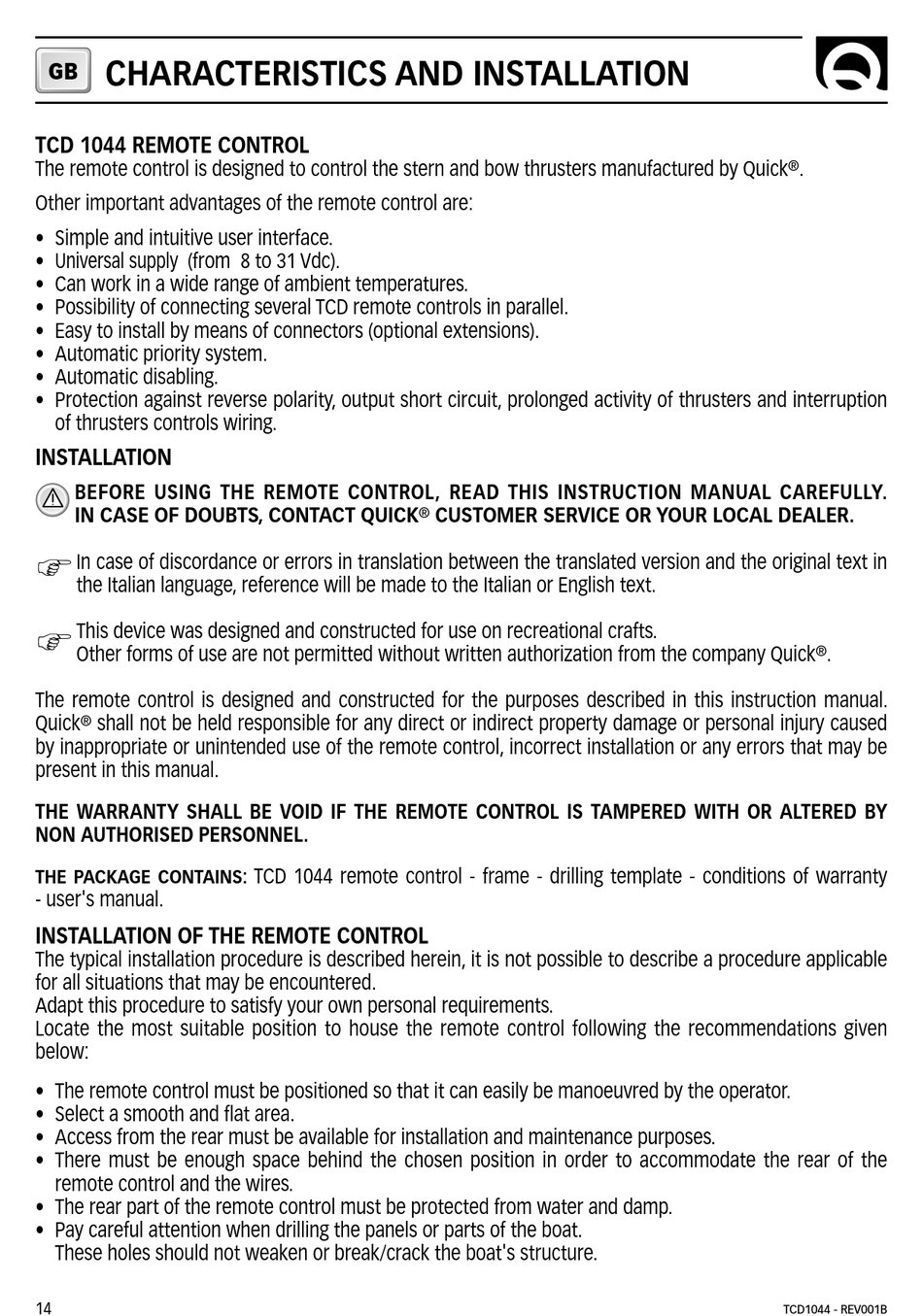

CHARACTERISTICS AND INSTALLATION
GB
TCD 1044 REMOTE CONTROL
The remote control is designed to control the stern and bow thrusters manufactured by Quick
Other important advantages of the remote control are:
• Simple and intuitive user interface.
• Universal supply (from 8 to 31 Vdc).
• Can work in a wide range of ambient temperatures.
• Possibility of connecting several TCD remote controls in parallel.
• Easy to install by means of connectors (optional extensions).
• Automatic priority system.
• Automatic disabling.
• Protection against reverse polarity, output short circuit, prolonged activity of thrusters and interruption
of thrusters controls wiring.
INSTALLATION
BEFORE USING THE REMOTE CONTROL, READ THIS INSTRUCTION MANUAL CAREFULLY.
IN CASE OF DOUBTS, CONTACT QUICK
F
In case of discordance or errors in translation between the translated version and the original text in
the Italian language, reference will be made to the Italian or English text.
F
This device was designed and constructed for use on recreational crafts.
Other forms of use are not permitted without written authorization from the company Quick
The remote control is designed and constructed for the purposes described in this instruction manual.
Quick
®
shall not be held responsible for any direct or indirect property damage or personal injury caused
by inappropriate or unintended use of the remote control, incorrect installation or any errors that may be
present in this manual.
THE WARRANTY SHALL BE VOID IF THE REMOTE CONTROL IS TAMPERED WITH OR ALTERED BY
NON AUTHORISED PERSONNEL.
THE PACKAGE CONTAINS:
- user's manual.
INSTALLATION OF THE REMOTE CONTROL
The typical installation procedure is described herein, it is not possible to describe a procedure applicable
for all situations that may be encountered.
Adapt this procedure to satisfy your own personal requirements.
Locate the most suitable position to house the remote control following the recommendations given
below:
• The remote control must be positioned so that it can easily be manoeuvred by the operator.
• Select a smooth and flat area.
• Access from the rear must be available for installation and maintenance purposes.
• There must be enough space behind the chosen position in order to accommodate the rear of the
remote control and the wires.
• The rear part of the remote control must be protected from water and damp.
• Pay careful attention when drilling the panels or parts of the boat.
These holes should not weaken or break/crack the boat's structure.
14
®
TCD 1044 remote control - frame - drilling template - conditions of warranty
CUSTOMER SERVICE OR YOUR LOCAL DEALER.
®
.
®
.
TCD1044 - REV001B
