60Hz :
IN +0dB, —ldB)
IW+IW, 8Q) AC IN +0dB. — ldB)
.iJ!gfE/d .5V 750K Q
•60(20— 20,000 Hz,
••llOdB(lHF,
•10KHz 65dB
50—60Hz
• 900W(8Q)

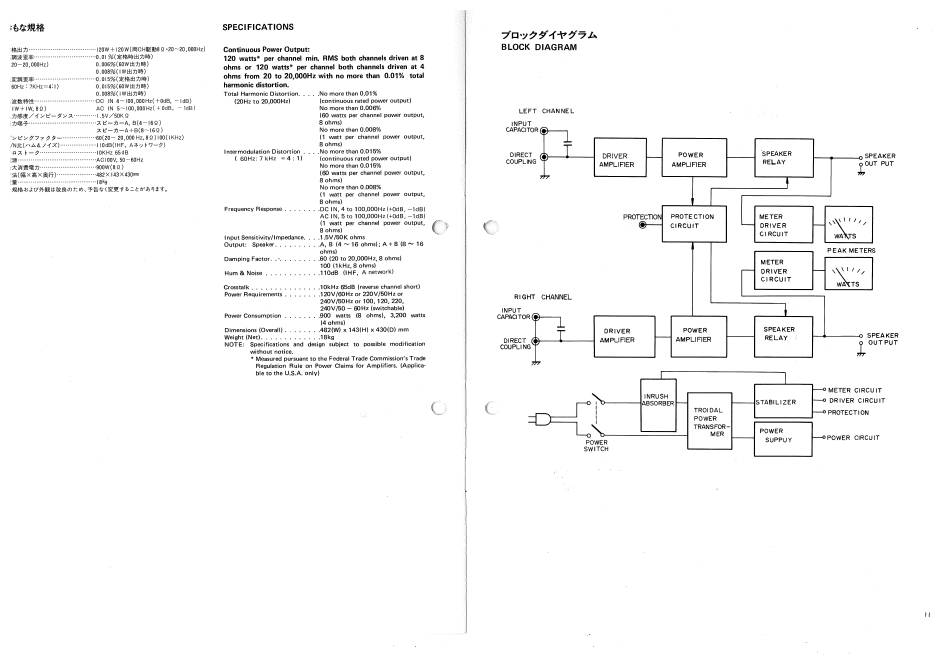

SPECIFICATIONS
Continuous Power Output:
120 watts* per channel min. RMS both channels driven at 8
ohms or 120 watts* per channel both channels driven at 4
ohms from 20 to 20,000Hz with no more than 0.01%
harmonic distortion.
Total Harmonic Distortion. . . .NO more than 0.01%
(20Hz to 20,000Hz) (continuous rated power output)
No more than 0.006%
(60 watts per channel power
8 ohms)
No more than 0.008%
(I watt per channel power
8 ohms)
Intermodulation Distortion . . .NO more than 0.015%
(continuous rated power output)
No more than 0.015%
(60 watts per channel power output,
8 ohms)
No more than 0.008%
(1 watt per channel power
8 ohms)
Frequency Response . .DC IN, 4 to IOO,OOOHz (+0dB, —ldB)
AC IN, 5 to 100,000Hz (+OdB, —ldB)
(1 watt per channel power
8 ohms)
Input Sensitivity/lmpedance. . .I .5V 150K ohms
.A, B (4 — 16 ohms); A +B (8
Output: Speaker. .
ohms)
Damping Factor. . . . . .60 (20 to 20,000Hz, 8 ohms)
100 (IkHz, 8 ohms)
. .110dB ('HF. A network)
Hum & Noise .
.10kHz 65dB (reverse channel short)
Crosstalk . .
Power Requirements . . . . . . . . 120V/60Hz or 220V/50Hz or
240V/50Hz or 100, 120, 220,
240V/50 — æHz (switchable)
.900 watts (8 ohms), 3,200
Power Consumption
(4 ohms)
Dimensions (Overall) . .482(W) x 143(H) x 430(D) mm
Weight (Net). .18kg
NOTE: Specifications and design subject to possible modification
without notice.
* Measured pursuant to the Federal Trade Commission's
Regulation Rule on Power Claims for Amplifiers. (AppI ica-
ble to the U.S.A. only)
BLOCK DIAGRAM
total
LEFT CHANNEL
output,
INPUT
CAPACITOR
output,
DIRECT
COUPLING
output,
output,
16
RIGHT CHANNEL
INPUT
watts
CAPACITOR
DIRECT
COUPLI NG
Trade
SPEAKER
POWER
DRIVER
RELAY
AMPLIFIER AMPLIFIER
PROTECTIO PROTECTI ON ME TER
CIRCUIT DRIVER
CIRCUIT
METER
DRIVER
CIRCUIT
POWER
DRIVER
AMPLIFIER
AMPLIFIER
INRUSH
STABILIZER
BSORBER
TROI DAL
POWER
TRANSFOR-
POWER
MER
POWER
SWITCH
SPEAKER
OUT PUT
WA TS
PEAK METERS
WA TS
SPEAKER
SPEA KER
RELAY
OUT PUT
METER CIRCUIT
DRIVER CIRCUIT
PROTECTION
POWER CIRCUIT
SUPPUY
