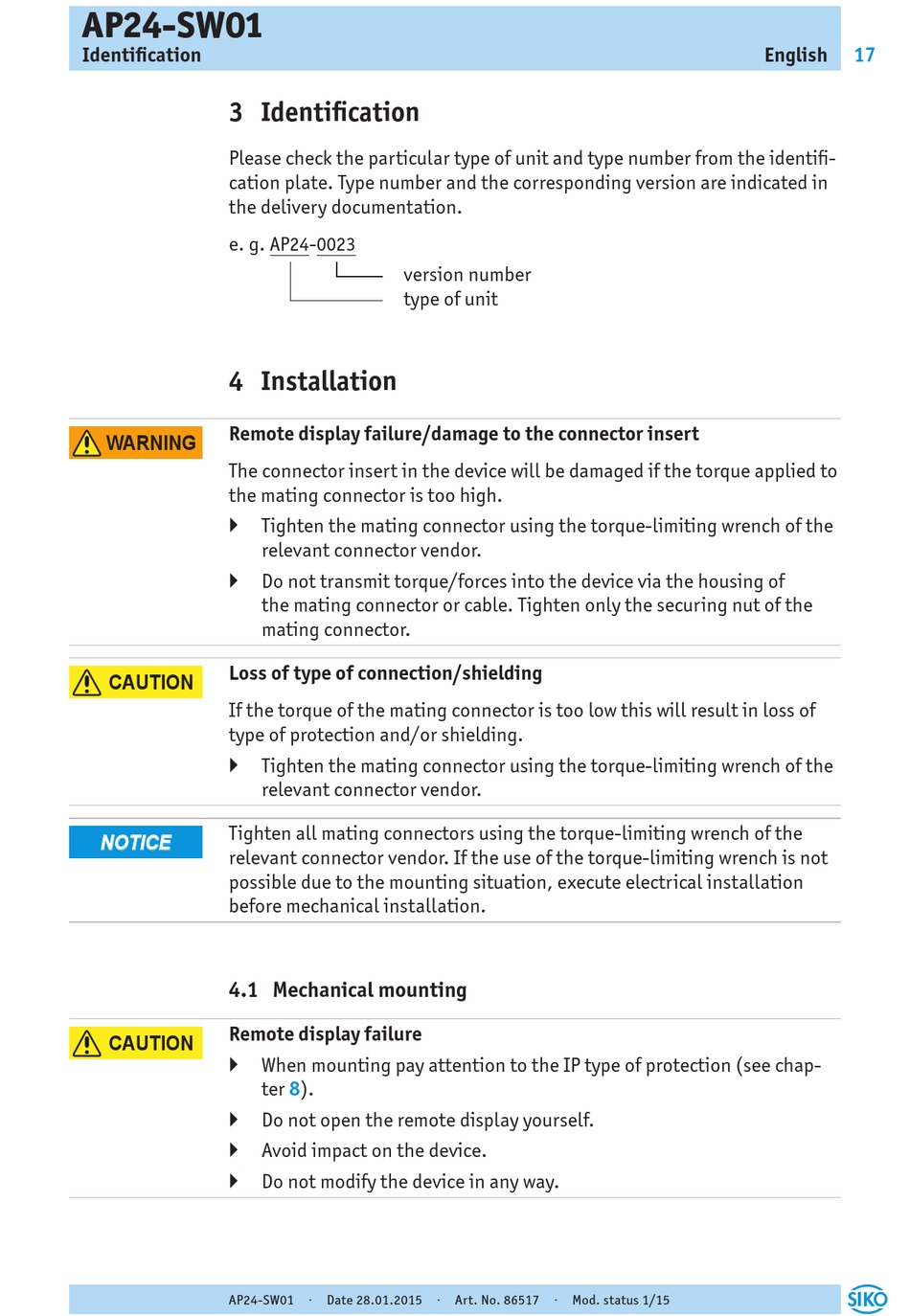

Identification
3 Identification
Please check the particular type of unit and type number from the identifi-
cation plate. Type number and the corresponding version are indicated in
the delivery documentation.
e. g.
4 Installation
Remote display failure/damage to the connector insert
WARNING WARNING
The connector insert in the device will be damaged if the torque applied to
the mating connector is too high.
` Tighten the mating connector using the torque-limiting wrench of the
` Do not transmit torque/forces into the device via the housing of
Loss of type of connection/shielding
CAUTION
If the torque of the mating connector is too low this will result in loss of
type of protection and/or shielding.
` Tighten the mating connector using the torque-limiting wrench of the
Tighten all mating connectors using the torque-limiting wrench of the
NOTICE
relevant connector vendor. If the use of the torque-limiting wrench is not
possible due to the mounting situation, execute electrical installation
before mechanical installation.
4.1 Mechanical mounting
Remote display failure
CAUTION
` When mounting pay attention to the IP type of protection (see chap-
` Do not open the remote display yourself.
` Avoid impact on the device.
` Do not modify the device in any way.
