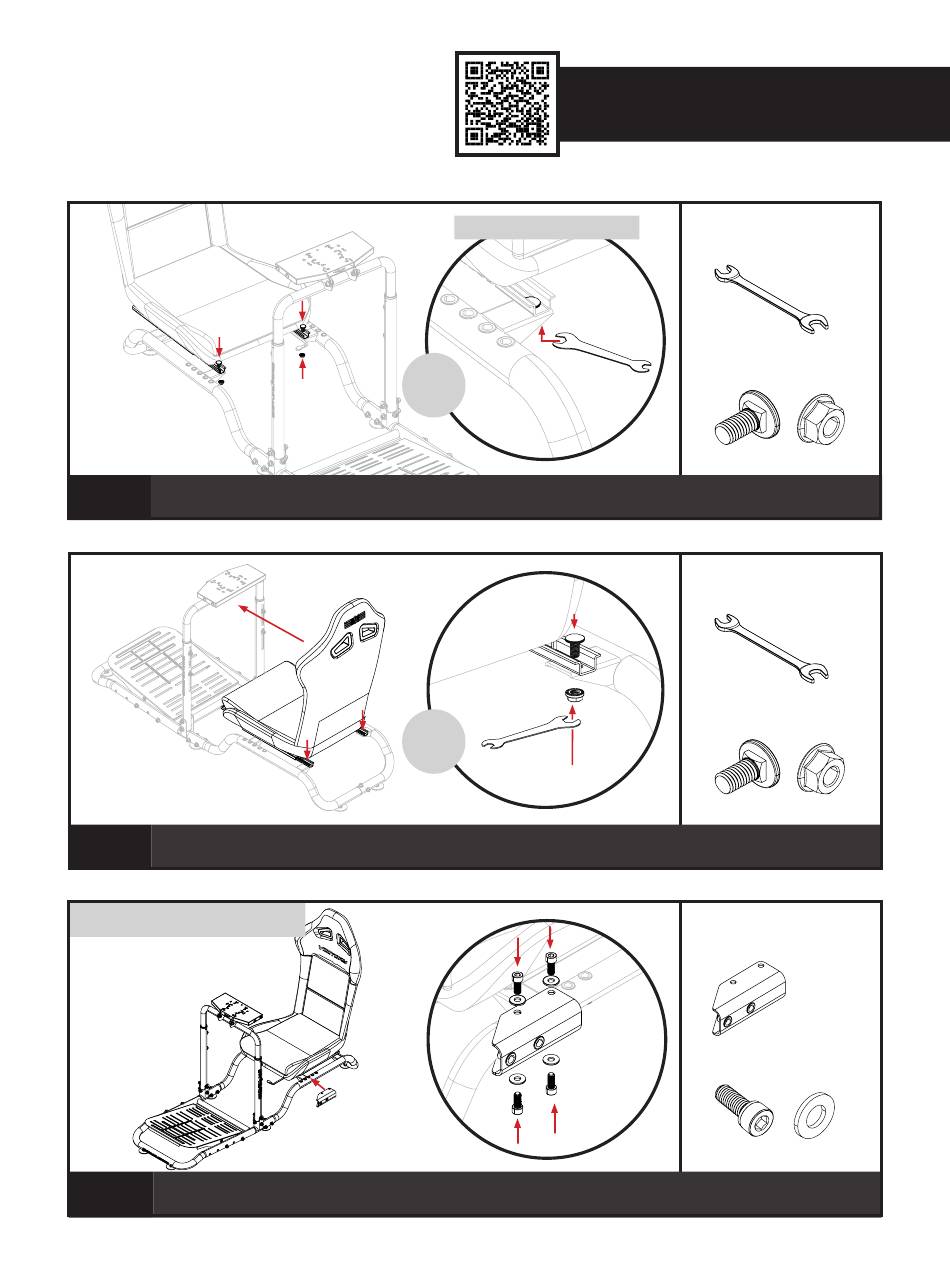

A) Align the front Seat Slider Mounting Holes on the cockpit Frame.
B) Secure with M8 Square Neck Bolts and tighten the Flange Nuts using the Wrench.
A)
11 A) Lift the Seat Slider Lever and slide the Seat all the way forward to access the rear mounting holes.
B) Secure with M8 Square Neck Bolts and tighten the Flange Nuts using the Wrench.
NOTE: Shifter Plate can also be mounted on left or right
hand side of Seat Frame, depending on preference.
A)
12 A) Align the Shifter Frame Bracket mounting holes on the Cockpit Frame.
B) Secure in place with M8 20mm Bolts and Washers.
Video Instruction: bit.ly/nlrbuild
NOTE: Use Wrench to tighten Flange Nuts.
B)
Repeat
on Other
Side
B)
Repeat
on Other
Side
B)
11
PARTS AND TOOLS:
• • 1 x 13mm Wrench
• • 2 x M8 Square Neck Bolt
• • 2 x M8 Flange Nuts
PARTS AND TOOLS:
• • 1 x 13mm Wrench
• • 2 x M8 Square Neck Bolt
• • 2 x M8 Flange Nuts
PARTS:
• • 1 x Shifter Frame Bracket
• • 4 x M8 20mm Socket Head Bolts
• • 4 x M8 Washers
