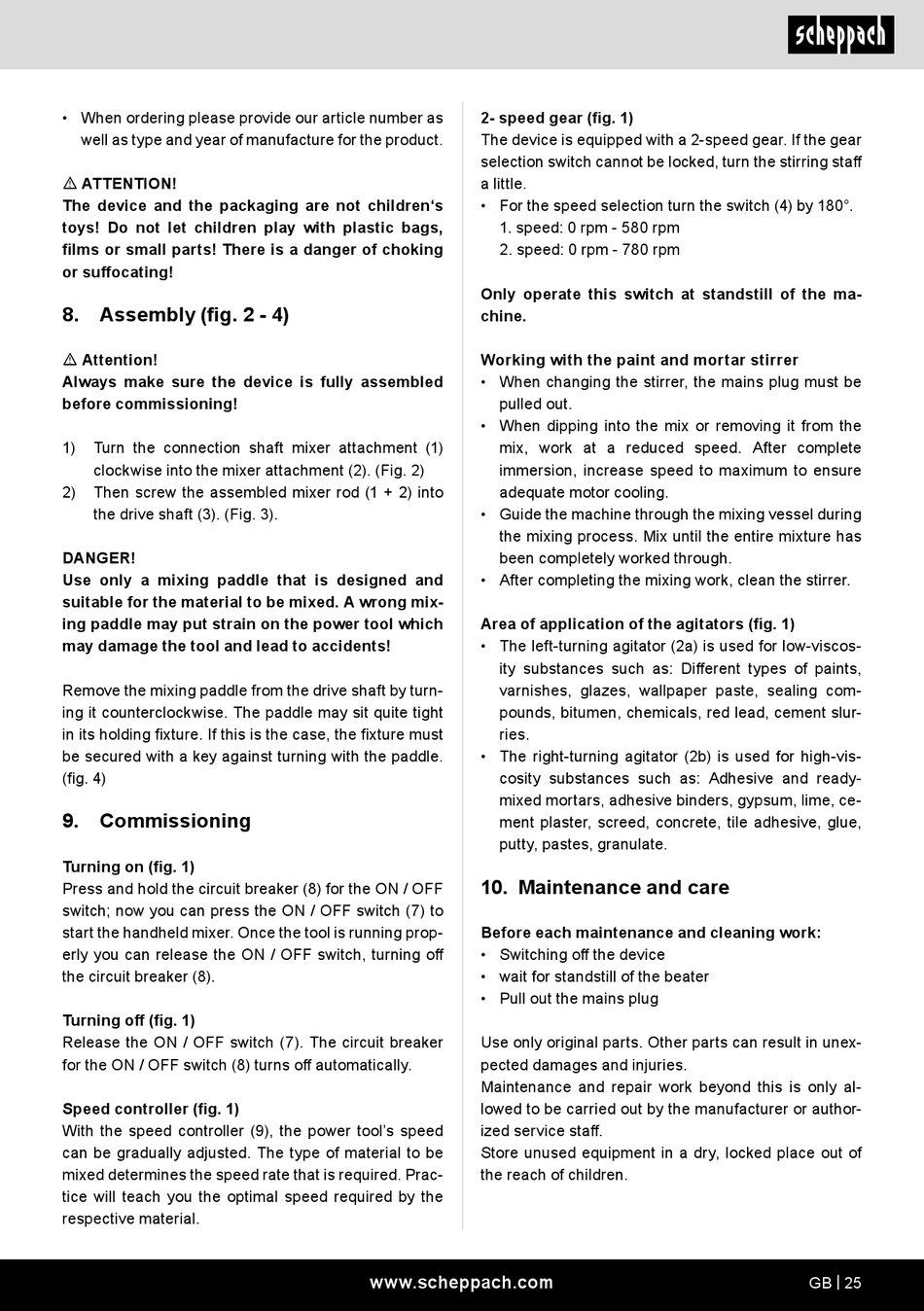

• When ordering please provide our article number as
well as type and year of manufacture for the product.
m ATTENTION!
The device and the packaging are not children's
toys! Do not let children play with plastic bags,
films or small parts! There is a danger of choking
or suffocating!
8. Assembly (fig. 2 - 4)
m Attention!
Always make sure the device is fully assembled
before commissioning!
1) Turn the connection shaft mixer attachment (1)
clockwise into the mixer attachment (2). (Fig. 2)
2) Then screw the assembled mixer rod (1 + 2) into
the drive shaft (3). (Fig. 3).
DANGER!
Use only a mixing paddle that is designed and
suitable for the material to be mixed. A wrong mix-
ing paddle may put strain on the power tool which
may damage the tool and lead to accidents!
Remove the mixing paddle from the drive shaft by turn-
ing it counterclockwise. The paddle may sit quite tight
in its holding fixture. If this is the case, the fixture must
be secured with a key against turning with the paddle.
(fig. 4)
9. Commissioning
Turning on (fig. 1)
Press and hold the circuit breaker (8) for the ON / OFF
switch; now you can press the ON / OFF switch (7) to
start the handheld mixer. Once the tool is running prop-
erly you can release the ON / OFF switch, turning off
the circuit breaker (8).
Turning off (fig. 1)
Release the ON / OFF switch (7). The circuit breaker
for the ON / OFF switch (8) turns off automatically.
Speed controller (fig. 1)
With the speed controller (9), the power tool's speed
can be gradually adjusted. The type of material to be
mixed determines the speed rate that is required. Prac-
tice will teach you the optimal speed required by the
respective material.
2- speed gear (fig. 1)
The device is equipped with a 2-speed gear. If the gear
selection switch cannot be locked, turn the stirring staff
a little.
• For the speed selection turn the switch (4) by 180°.
1. speed: 0 rpm - 580 rpm
2. speed: 0 rpm - 780 rpm
Only operate this switch at standstill of the ma-
chine.
Working with the paint and mortar stirrer
• When changing the stirrer, the mains plug must be
pulled out.
• When dipping into the mix or removing it from the
mix, work at a reduced speed. After complete
immersion, increase speed to maximum to ensure
adequate motor cooling.
• Guide the machine through the mixing vessel during
the mixing process. Mix until the entire mixture has
been completely worked through.
• After completing the mixing work, clean the stirrer.
Area of application of the agitators (fig. 1)
• The left-turning agitator (2a) is used for low-viscos-
ity substances such as: Different types of paints,
varnishes, glazes, wallpaper paste, sealing com-
pounds, bitumen, chemicals, red lead, cement slur-
ries.
• The right-turning agitator (2b) is used for high-vis-
cosity substances such as: Adhesive and ready-
mixed mortars, adhesive binders, gypsum, lime, ce-
ment plaster, screed, concrete, tile adhesive, glue,
putty, pastes, granulate.
10. Maintenance and care
Before each maintenance and cleaning work:
• Switching off the device
• wait for standstill of the beater
• Pull out the mains plug
Use only original parts. Other parts can result in unex-
pected damages and injuries.
Maintenance and repair work beyond this is only al-
lowed to be carried out by the manufacturer or author-
ized service staff.
Store unused equipment in a dry, locked place out of
the reach of children.
