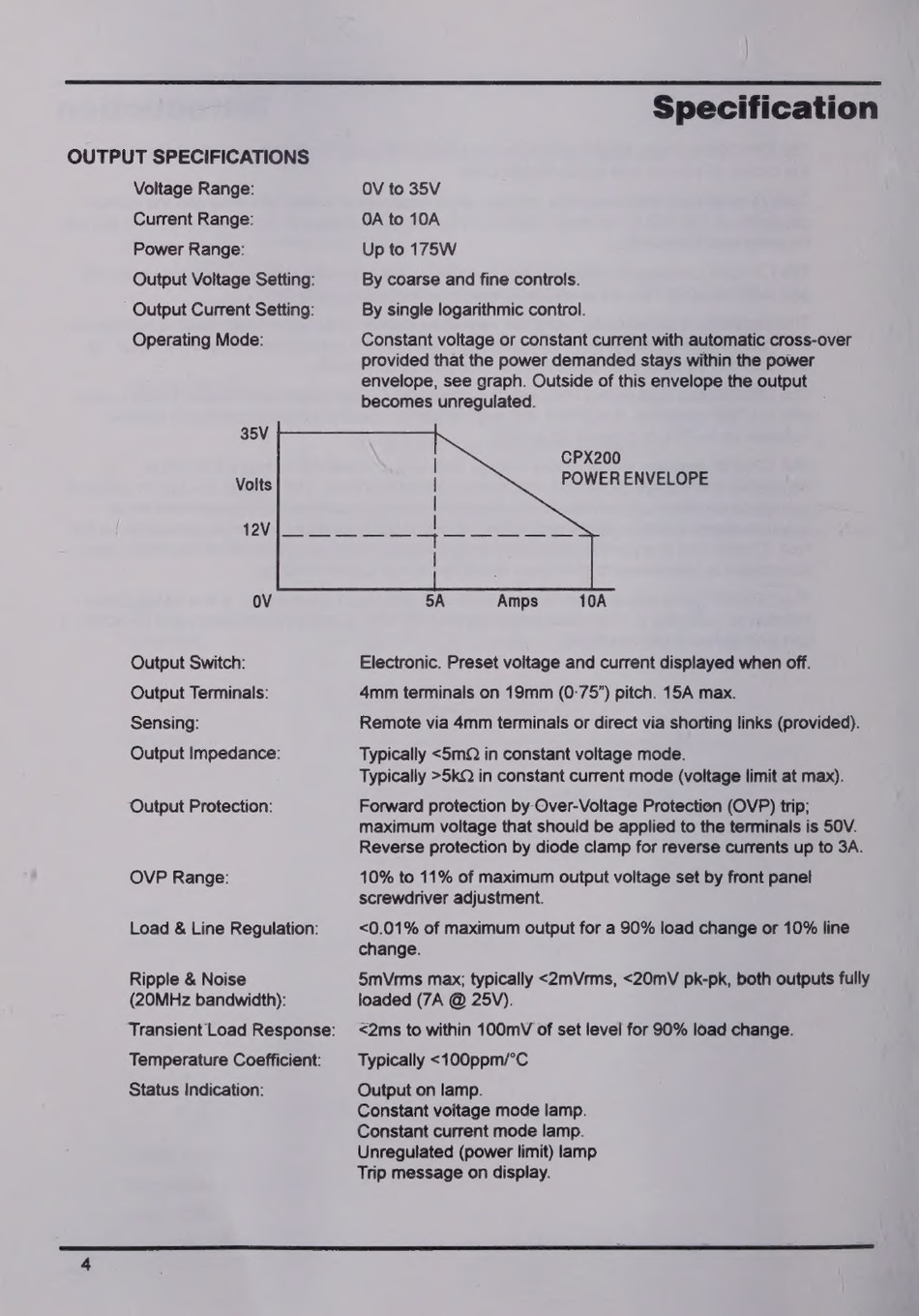

OUTPUT SPECIFICATIONS
Voltage Range:
Current Range:
Power Range:
Output Voltage Setting:
Output Current Setting:
Operating Mode:
35V
Volts
12V
oV
Output Switch:
Output Terminals:
Sensing:
Output Impedance:
Output Protection:
OVP Range:
Load & Line Regulation:
Ripple & Noise
(20MHz bandwidth):
Transient Load Response:
Temperature Coefficient:
Status Indication:
Specification
OV to 35V
OA to 10A
Up to 175W
By coarse and fine controls.
By single logarithmic control.
Constant voltage or constant current with automatic cross-over
provided that the power demanded stays within the power
envelope, see graph. Outside of this envelope the output
becomes unregulated.
CPX200
POWER ENVELOPE
5A
Amps
10A
Electronic. Preset voltage and current displayed when off.
4mm terminals on 19mm (0:75") pitch. 15A max.
Remote via 4mm terminals or direct via shorting links (provided).
Typically <5mQ in constant voltage mode.
Typically >5kQ in constant current mode (voltage limit at max).
Forward protection by Over-Voltage Protection (OVP) trip;
maximum voltage that should be applied to the terminals is 50V.
Reverse protection by diode clamp for reverse currents up to 3A.
10% to 11% of maximum output voltage set by front panel
screwdriver adjustment.
<0.01% of maximum output for a 90% load change or 10% line
change.
5mVrms max; typically <2mVrms, <20mV pk-pk, both outputs fully
loaded (7A @ 25V).
<2ms to within 100mV of set level for 90% load change.
Typically <100ppm/°C
Output on lamp.
Constant voitage mode lamp.
Constant current mode lamp.
Unregulated (power limit) lamp
Trip message on display.
