determine where this point occurs. The user must decide how high above or below the sight line the bullet can be
allowed to strike and adjust the sight accordingly. At distances less than the zero range, the bullet will be above
the sight line. Beyond the zero range, the bullet will be below the sight line. If mounted to the side, the bullet will
also deviate to the side of the laser line, as well as up and down. In practice, a TLR on a handgun can be adjusted
to keep the bullet strike within about 2" high and 2" low out to about 100 feet.
There are two adjustment screws located on the left side of the flashlight body. The windage adjustment is located
closest to the bottom of the flashlight. Turn the set screw clockwise to move the laser to the left (POI right). Turn
the set screw counterclockwise to move the laser to the right (POI left). The elevation adjustment is located higher
up on the flashlight body angled downward. With the TLR pointed down range, a clockwise turn of the adjustment
screw will move the laser up (POI down). A counterclockwise turn on the adjustment screw will move the laser
down (POI up). Move the laser dot in the direction that the shots are hitting the target (example: If the bullets are
striking low and right, move the laser dot down and right to coincide with the bullet strike).
NOTE: When making large adjustments, there may be an interaction that causes the laser to move diagonally
or bind. It may become necessary to rotate the opposing adjustment screw counterclockwise to allow the laser
cartridge to move to the desired position.

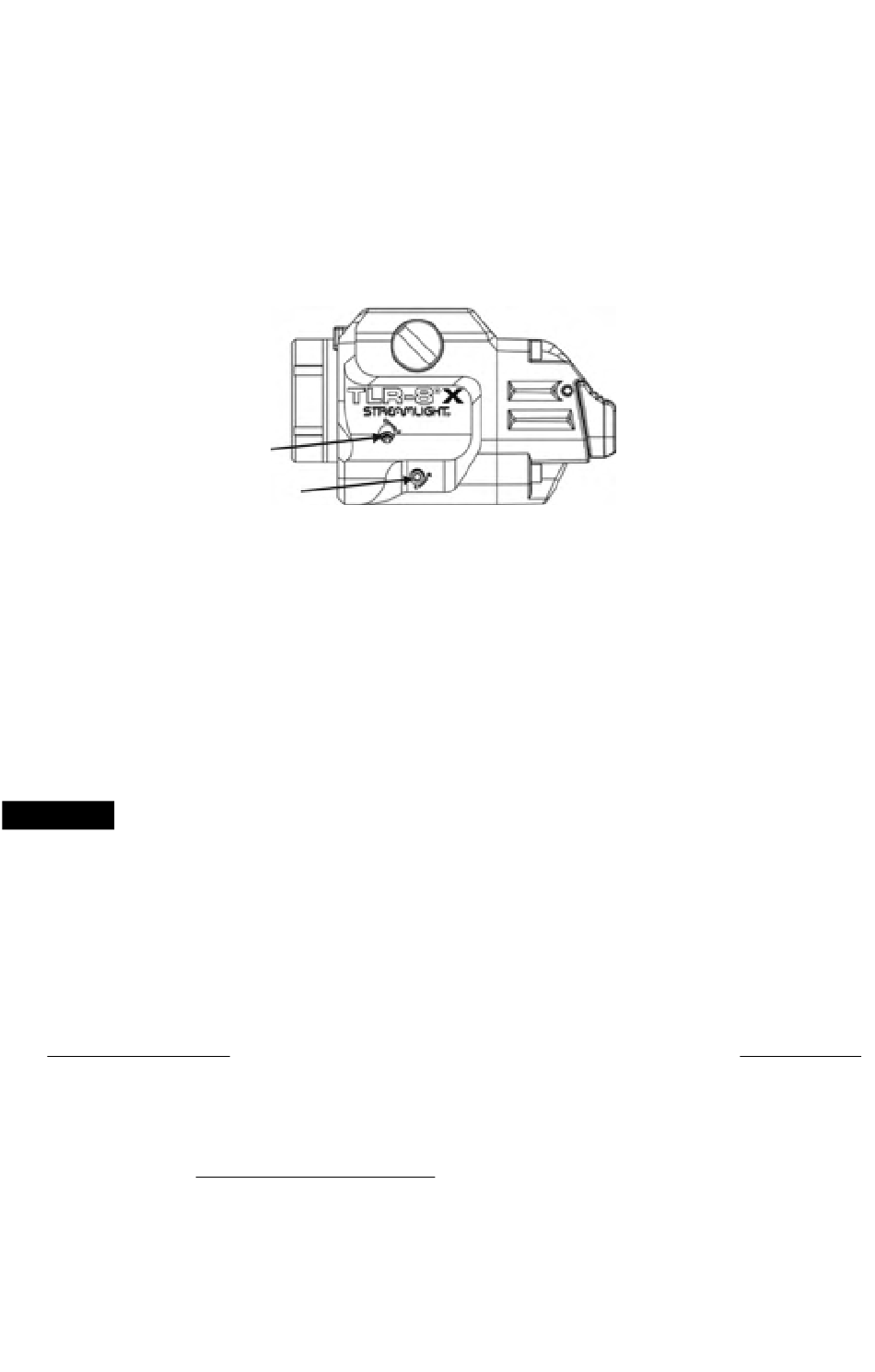

Elevation Adjustments
(angled downward)
Windage Adjustments
MAINTENANCE
The TLR rail clamp tension bolt requires an application of high-quality gun oil to keep it rust free. Use a soft cloth
and mild detergent to clean the glass LED lens and keep it free of dirt and grime.
Note: Always avoid aggressive cleaning solutions as they may damage the TLR. If you shoot ammunition with an
exposed lead base on the bullets, the lens and face cap may become coated with lead. This may be removed from
the lens by rubbing with fine steel wool. It is extremely difficult to remove the lead coating from the face cap. Wrap
the face cap with electrical tape to avoid lead coating.
PRODUCT USE: Streamlight flashlights are intended for use as high intensity, heavy duty, and portable light
sources. Use of Streamlight flashlights for any purpose other than as light sources is specifically discouraged by the
manufacturer. Streamlight specifically disclaims liability for other than recommended use.
Be sure to use only genuine Streamlight replacement parts. To assure product safety always use
NOTICE
Streamlight approved replacement parts, substitution may invalidate the product approval. Do not
try to repair the unit yourself. Send to a qualified service facility or return it to the factory.
Streamlight Limited Lifetime Warranty
Streamlight warrants this product to be free of defects for a lifetime of use except for batteries and bulbs, abuse
and normal wear. We will repair, replace or refund the purchase price of this product should we determine it to be
defective. This limited lifetime warranty also excludes rechargeable batteries, chargers, switches and electronics
which have a 2 year warranty with proof of purchase. THIS IS THE ONLY WARRANTY, EXPRESSED OR IMPLIED,
INCLUDING ANY WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. INCIDENTAL,
CONSEQUENTIAL OR SPECIAL DAMAGES ARE EXPRESSLY DISCLAIMED EXCEPT WHERE SUCH LIMITATION IS
PROHIBITED BY LAW. You may have other specific legal rights which vary by jurisdiction.
Go to streamlight.com/support for a complete copy of the warranty. To register your product, go to streamlight.com
(Online Product Registration). Retain your receipt or any proof of purchase.
SERVICE OPTIONS
The TLR-7
X / TLR-8
®
®
For service options, go to streamlight.com/support/service and complete the Online Service
Request for factory service or to find the location of an authorized Streamlight repair center near you.
Or contact:
Customer Service
© Streamlight, Inc.
30 Eagleville Road
Suite 100
Eagleville, PA 19403-3996, USA
Phone: (800) 523-7488 Toll-Free / +1 (610) 631-0600
Fax: (800) 220-7007 / +1 (610) 631-0712
Email: cs@streamlight.com
X series contains few or no user-serviceable parts.
