RAIL KEY INSTALLATION/REMOVAL
THE TLR MUST BE REMOVED FROM THE FIREARM BEFORE THIS PROCEDURE CAN BE PERFORMED.
The TLR is shipped with a rail key installed and a variety of other keys included. If the key is not correct, select a
key that will securely attach your TLR to the weapon with special regard for: width of key and rail slot, operation of
the switch, and non-interference with the trigger guard, etc. Refer to the Compatibility List for configurations that are
tested and approved by Streamlight.
A KEY MUST BE USED OR THE TLR WILL SLIDE OFF THE WEAPON RAIL UNDER RECOIL.

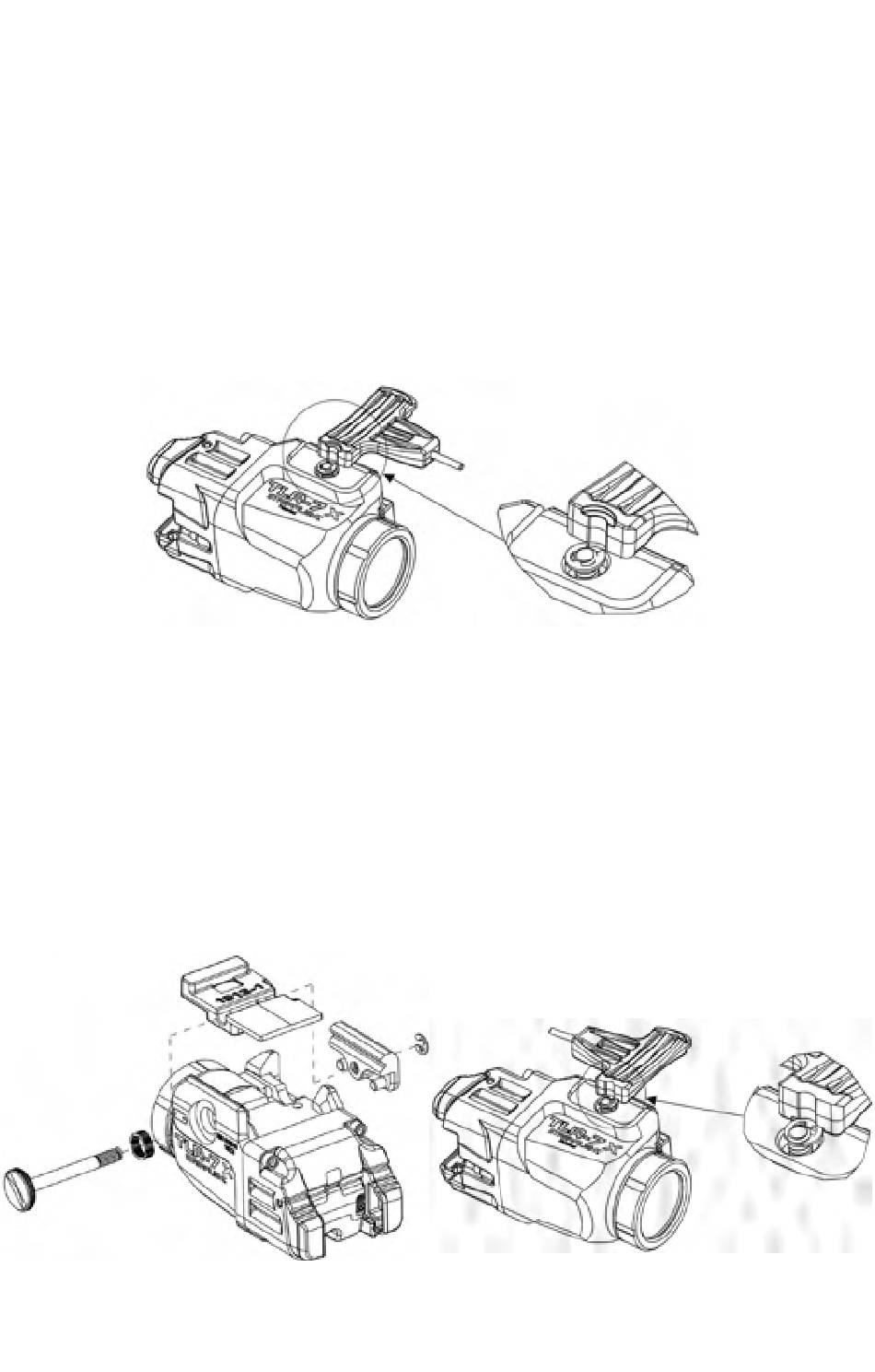

Rail Key Removal
1. Fully tighten the rail clamp tension bolt.
2. The e-clip will become accessible on the end of rail clamp tension bolt (not installed from the factory).
3. Align the e-clip side of the multi-tool with the pin facing towards the lens and apply pressure to free
the e-clip from the rail clamp tension bolt. The tool must push against the open end of the e-clip.
4. Unscrew the rail clamp tension bolt and remove it completely (the tension spring must stay with the
rail clamp tension bolt).
Rail Key Installation
1. Unscrew the rail clamp tension bolt and remove it completely (the tension spring must stay
with the rail clamp tension bolt).
2. Place the key into the slot between the movable portion of the rail clamp and the fixed side.
Note: The key is fitted properly when the rail clamp tension bolt can be installed.
3. Insert the rail clamp tension bolt through the fixed side of the rail clamp, through the key and
tighten into the movable side of the clamp.
4. Tighten the rail clamp tension bolt fully against the fixed side of the rail clamp.
5. Place the e-clip onto the moveable rail clamp and align the open end with the groove in the
threaded portion of the rail clamp tension bolt.
6. Align the e-clip side of the multi-tool with the pin facing towards the switch and push the tool
until the e-clip snaps into place.
