Assa Abloy KESO Integra Door Controller Installations- Und Montageanleitung Seite 42

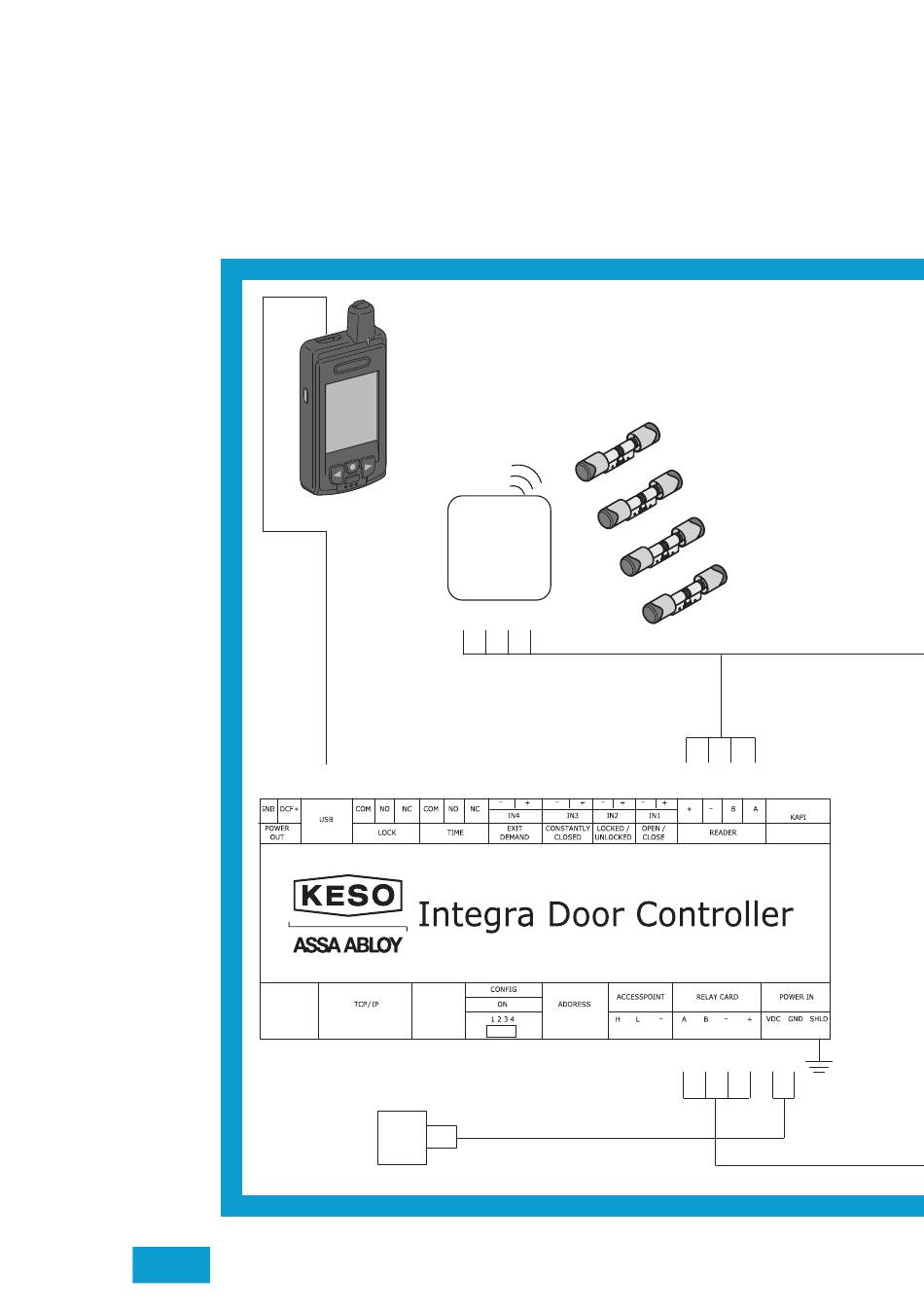

Fig. 5:
Schematic
simplified
connection
diagram
for Aperio™
EN
42
USB
–
Mains adapter
+
12 – 24 V
Max 8 Aperio™ hubs
Max 8 Aperio™ devices
HUB
0x01
+ –
B A
+ –
B A
– + + –
A B
