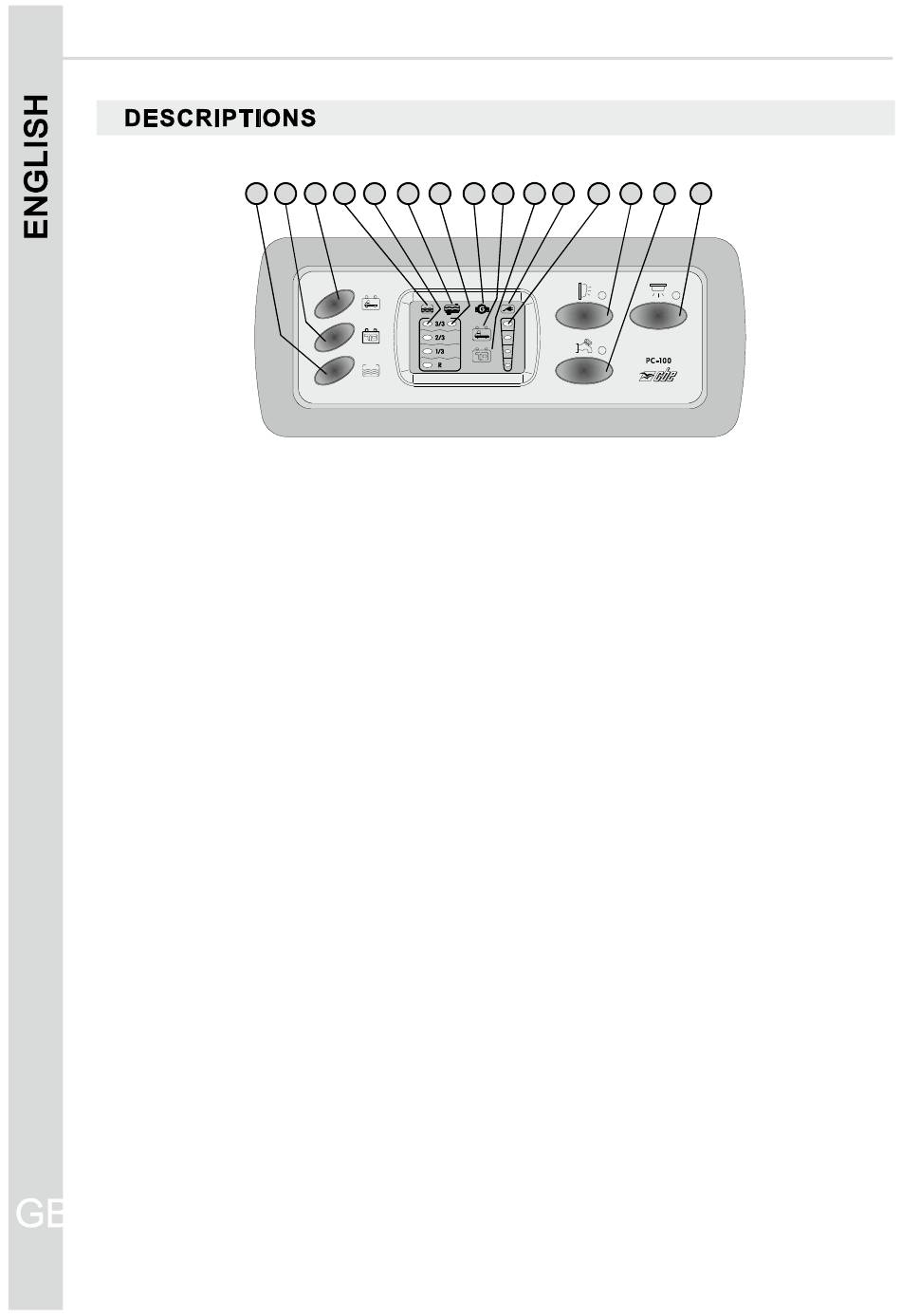

CONTROL PANEL "PC100"

1) Button to check the
2) Button to check the leisure battery (B2).
3) Button to check the car battery (B1).
4) It shows the
5) Leds to signal the drink water tank levels.
6) It shows the waste water tank test, the blinking indicates the full tank alarm.
7) Blinking led to signal the full waste water tank; the alarm is indicated also from the blinking of the led
ref. 6.
8) It shows the car and leisure batteries recharging through engine alternator.
9) It shows the car battery (B1) test, the blinking indicates the discharged battery alarm.
10) It shows the leisure battery (B2) test, the blinking indicates the discharged battery alarm.
11) Led to signal 230V net on.
12) Led-Voltmeter to check the voltage of the car and leisure batteries.
13) Awning light button, it switches automatically off when you star tup the engine.
14) Water pump button.
15) Main general button, the blinking of the led indicates that the battery is discharged and the next
intervention of the minimal voltage control.
GB
12
1 2 3 4 5
fresh water tank.
fresh water tank test, the blinking indicates the empty tank alarm.
6 7 8 9 10 11 12 13 14 15
