COMPACT 1.4
EN
Make sure polarities are not inverted when connecting equipment to battery. If this happens, elec-
tronic control will emit discontinuous whistles. Do not touch any key on panel or on equipment
control since irreversible damages could occur. When hearing these discontinuous signals, discon-
nect equipment from battery and check connection polarity.
Blower
Az Blue
N Black
R Red
V Green
B White
A Yellow
Na Orange
M Brown
Compressor
electronic
module
IMPORTANT WARNING!
TEMP
Wiring strip
Na
Electronic
module
10 A. Fuse
-
+
+
F 25 A. Fuse
D
C
P
T
Compressor
20
Air conditioning for vehicles
ºC
ºF
ON/OFF
Battery

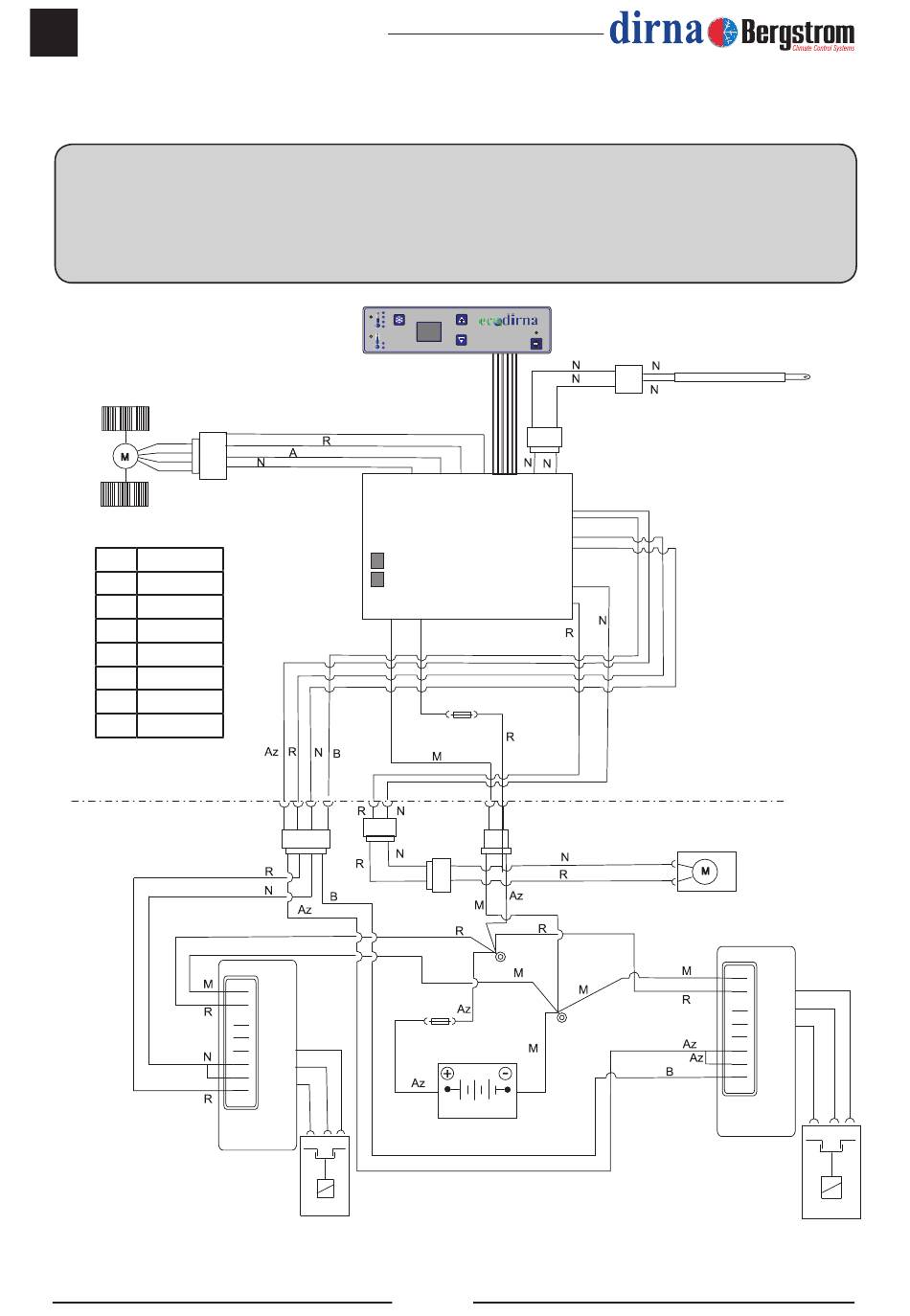

Electric wiring
Temperature
probe
Fan
Compressor
electronic
module
-
+
+
F
D
C
P
T
Compressor
