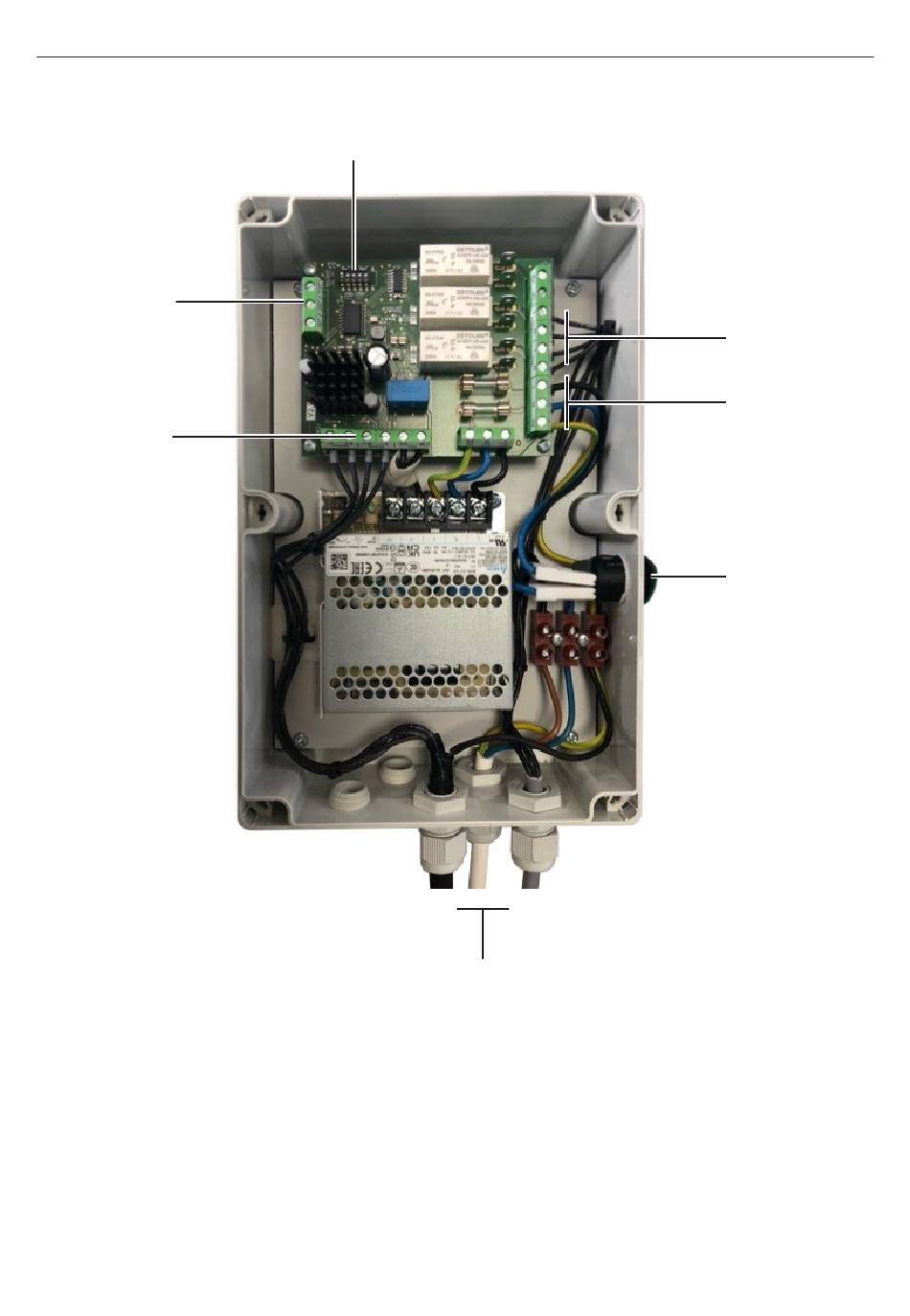

Control unit connections
►
F
G
A. DIP-switch
B. Terminals for light and fan
C. Terminals for mains 230V
D. Main switch ON/OFF
E. Cable glans (drive / mains / light and fan)
F. Terminals for the external push-button
G. Terminals for the drive
48
A
E
Electrical installation
B
C
D
