Electrical installation
6.2 Establishing an electrical connection
1. Option 1: connect the optionally available button for remote control to terminals F.
2. Option 2: if required, you can connect 2 devices, such as a fan or a light, up to the max. power
consumption of 2.5 A to 230 V.
3. Finally, insert the shockproof plug into a plug and the mill wheel is ready for operation.

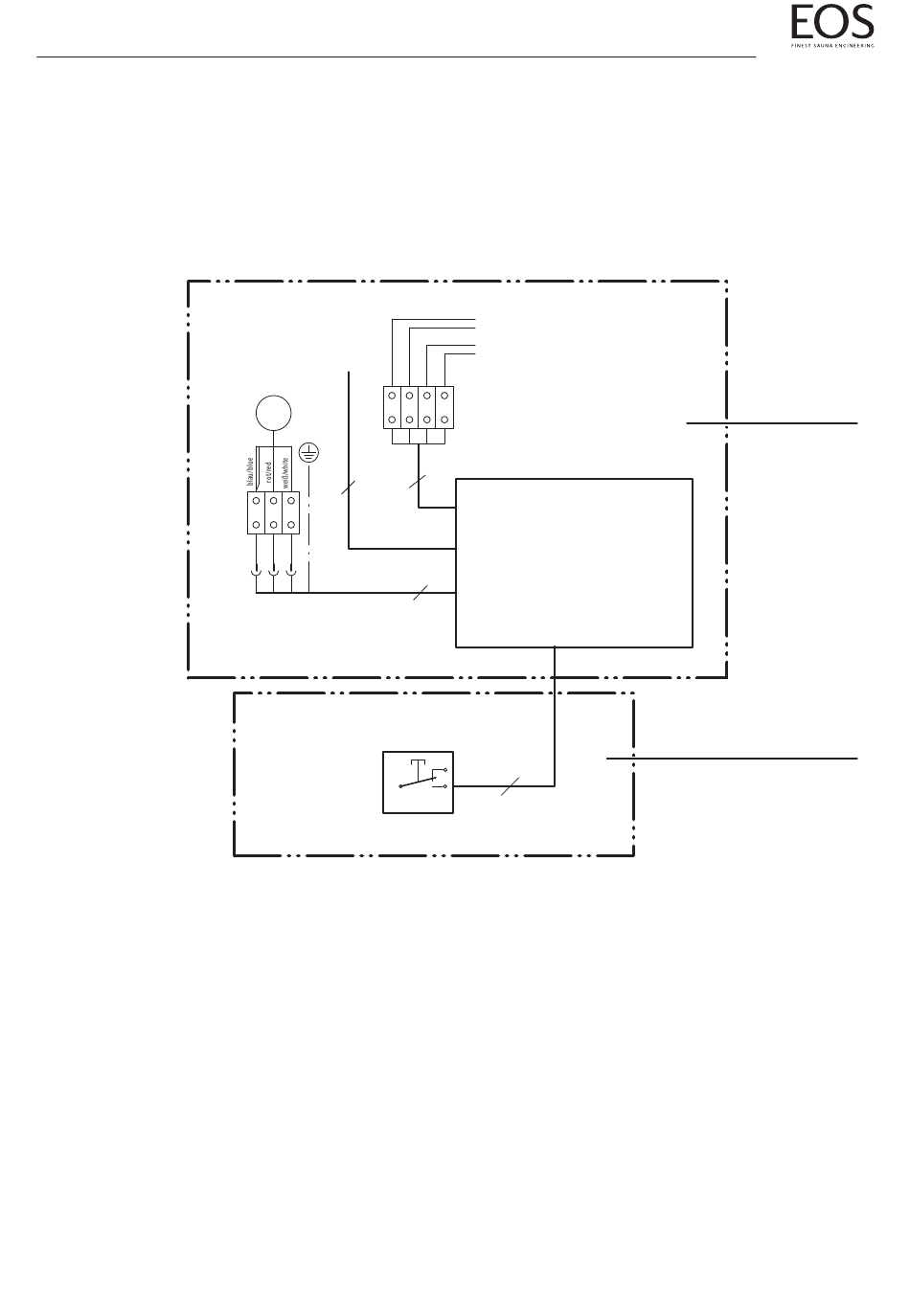

A. Control unit
B. Remote control button (optional)
Netz/mains
230V~
1 2
~
M
3
1 2 3
Taster/
switch-key
Licht/light
Lüfter/fan
3 4
4
Schaltbox Steuerung/
switch box control
4
3
A
B
