Thermalright AXP-100 Installationsanleitung Seite 8

AXP-IOO
Intel 2011

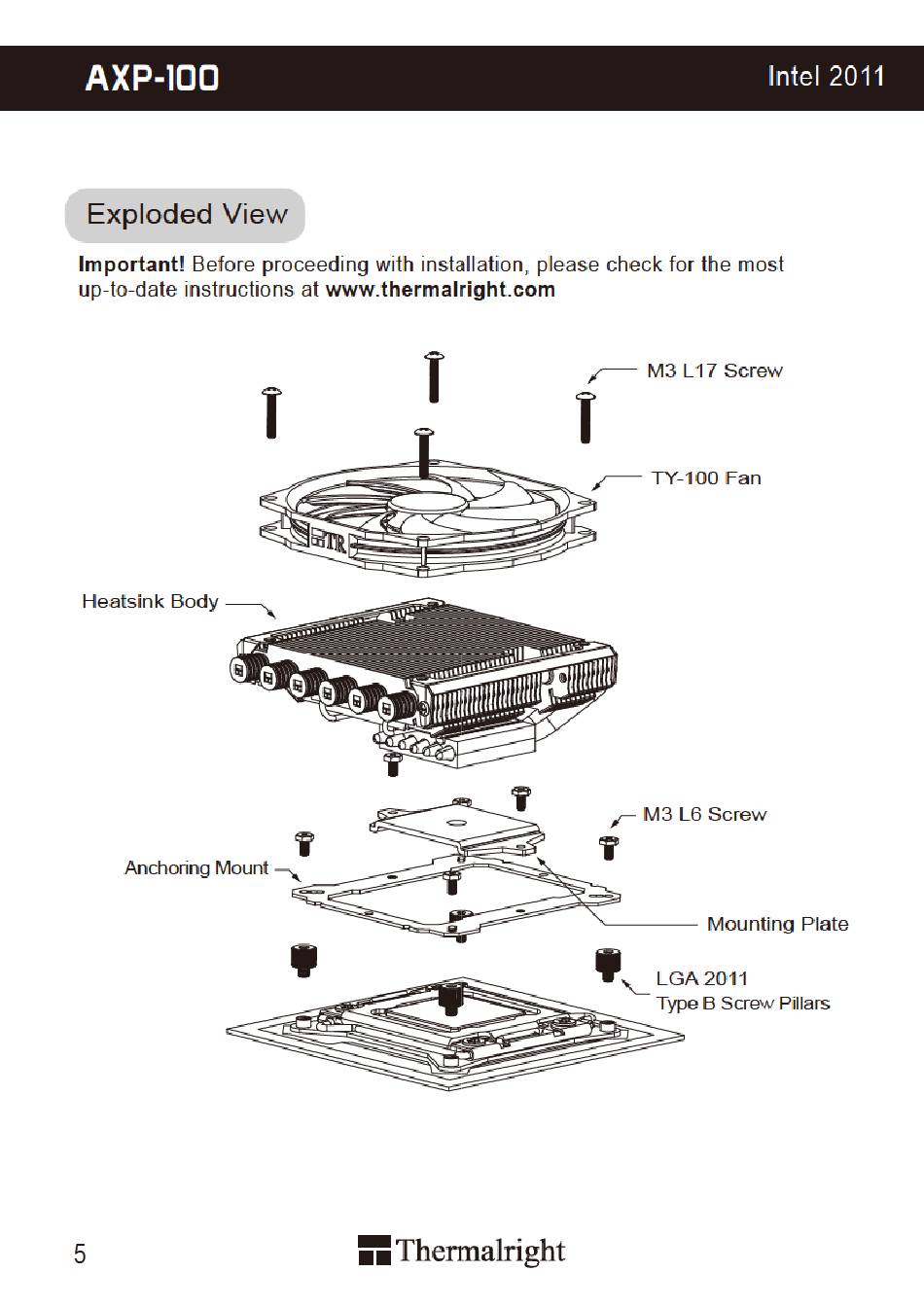

Exploded View
Important! Before proceeding with installation, please check for the most
up-to-date instructions at www.thermalright.com
M3 L 17 Screw
TY-IOO Fan
Heatsink Body
M3 L6 Screw
Anchoring Mount
Mounting Plate
LGA
Type B Screw Pillars
