Step 6:

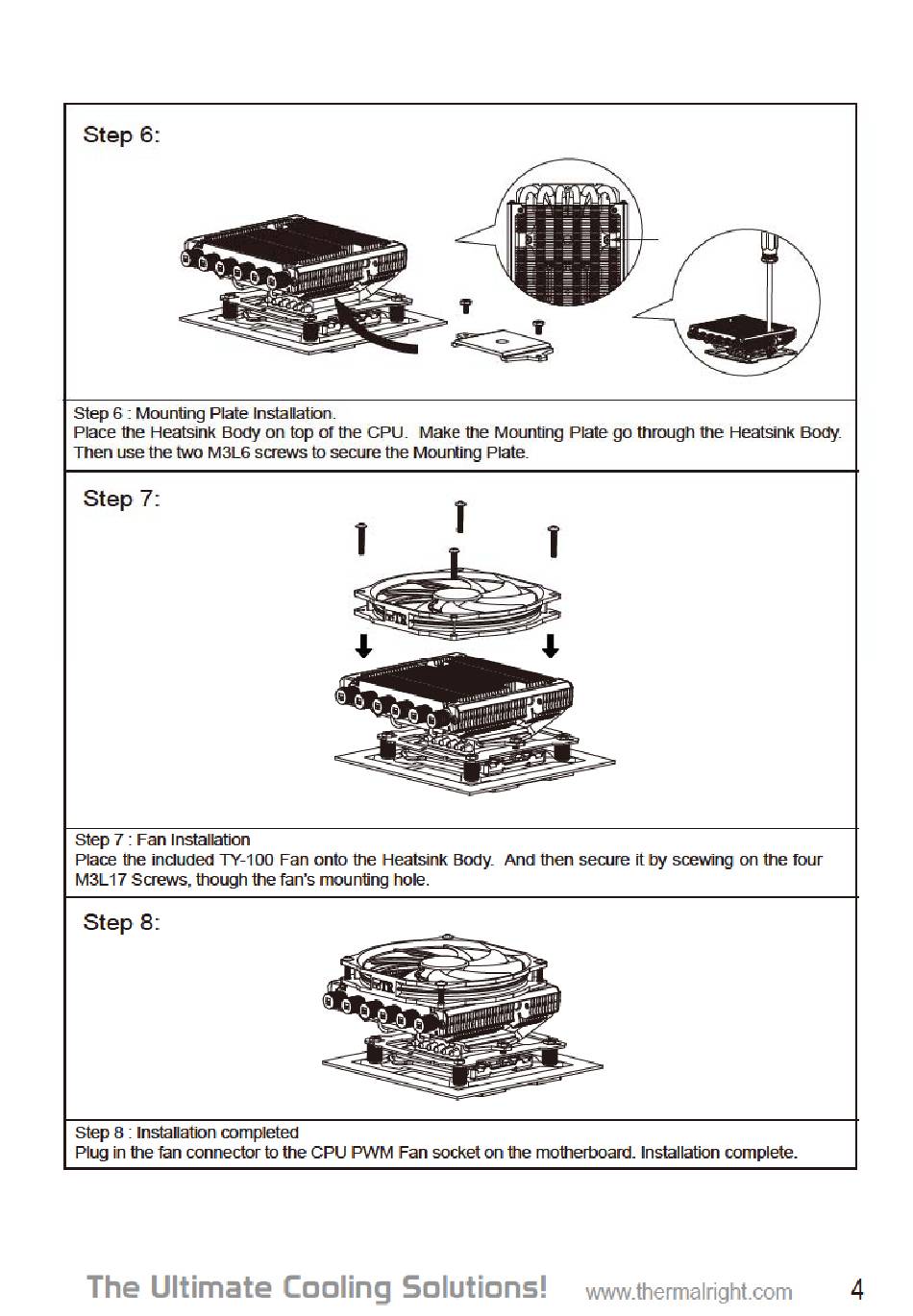

Step 6 Mounting Plate Installation-
Place the Heatsink Body on top of
Tnen use tne two M3L6 screws to secure tne Mounting Plate.
step 7:
Step 7 Fan Installation
Place the included TY-IOO Fan onto the Heatsink Body. And then secure it by scewing on the four
M3L17 Screws, though the fan's mounting hole.
Step 8:
Step 8 InstaNation completed
Plug in the fan connector to the CPU PWM Fan socket on the motherboard. Installation complete.
