Thermalright AXP-100 Installationsanleitung Seite 4

AXP-IOO
Intel 775/1155/1156/1366

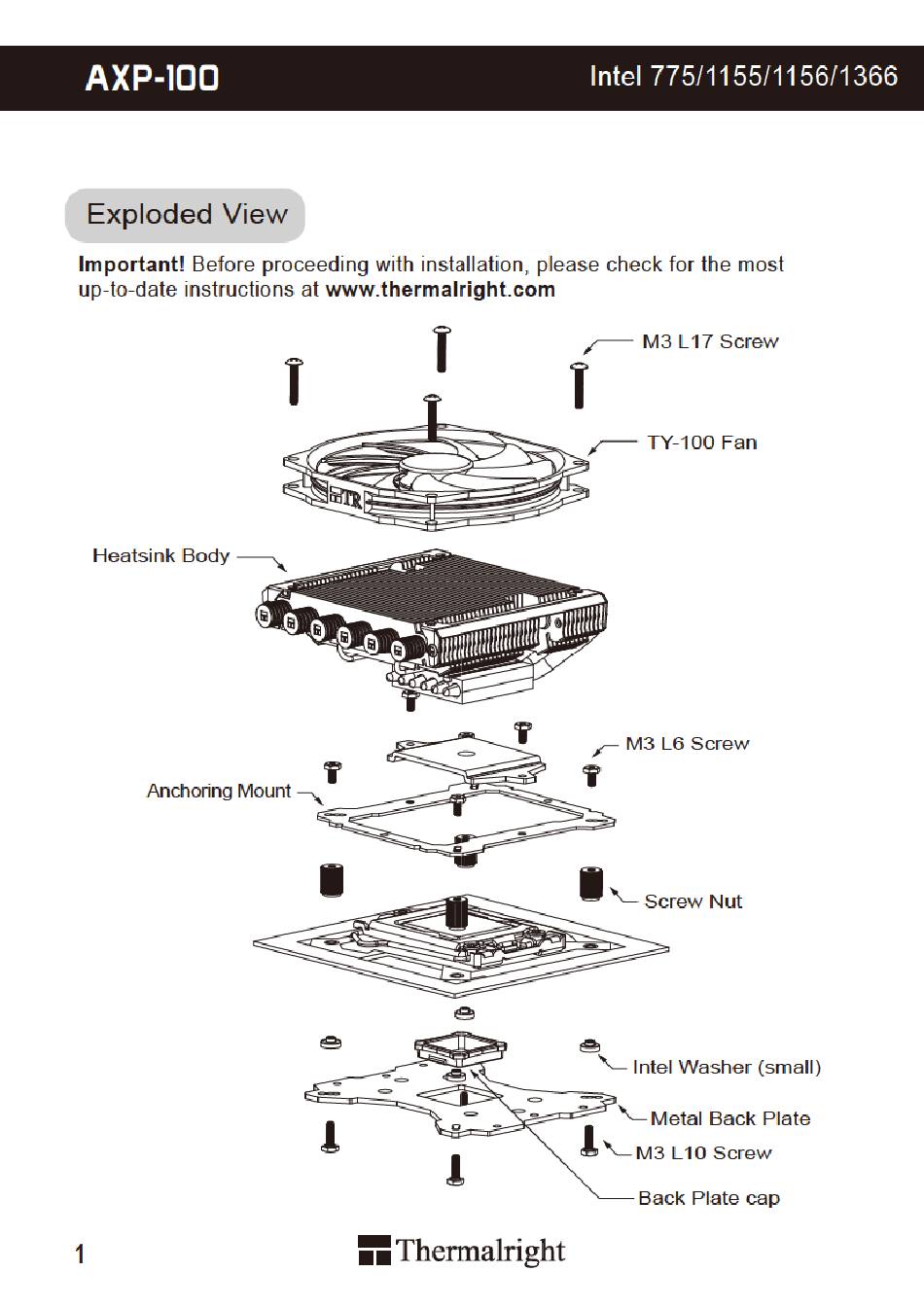

Exploded View
Important! Before proceeding with installation, please check for the most
up-to-date instructions at www.thermalright.com
M3 L 17 Screw
TY-IOO Fan
Heatsink Body —A
M3 L6 Screw
Anchoring Mount
Screw Nut
N—Intel Washer (small)
Metal Back Plate
X—M3 LIO Screw
Back Plate cap
Thermalright
