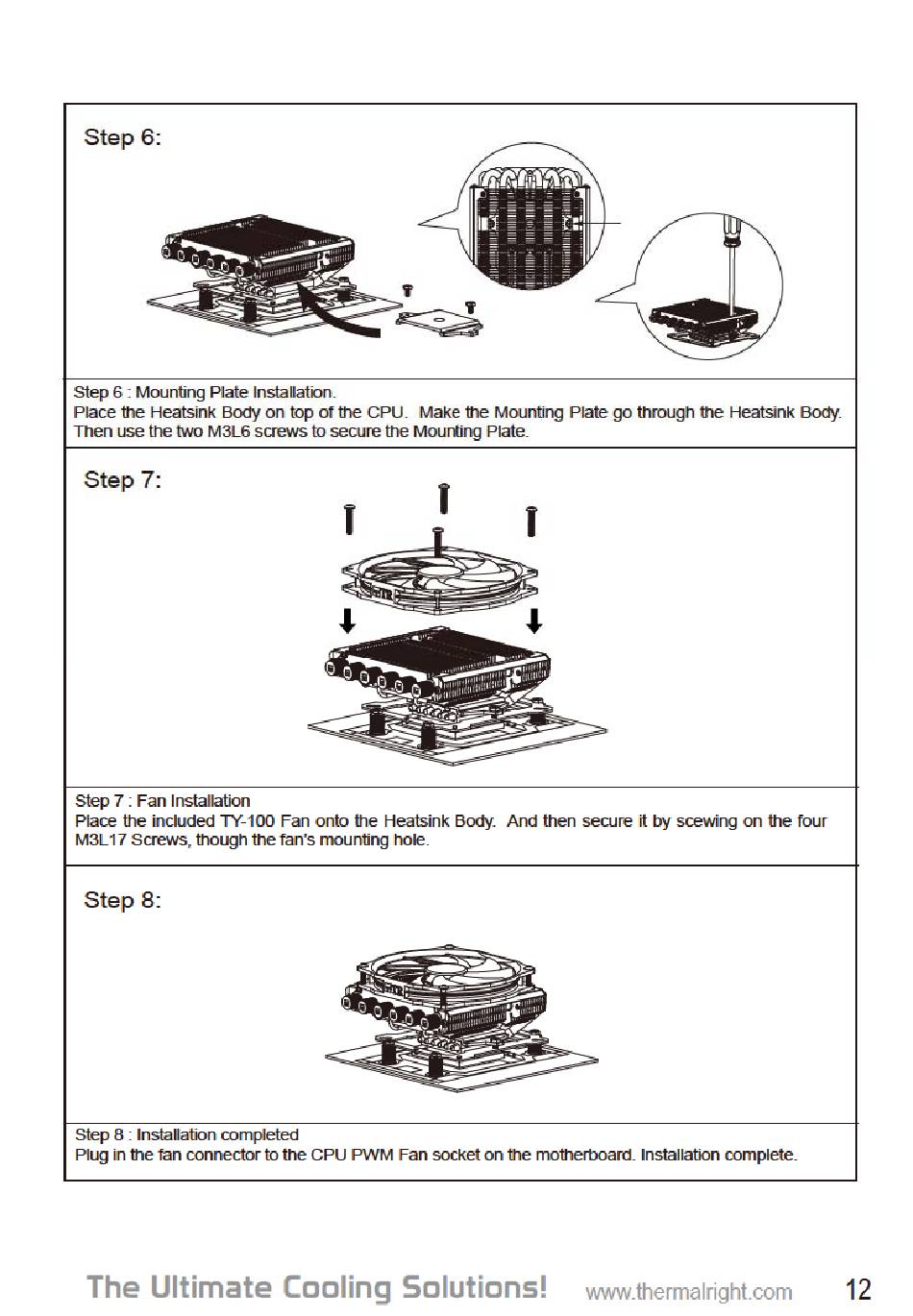

Step 6:
Step 6 Mounting Plate Installatbn-
Place the Heatsink Body on top of he CPU
Then use the two M3L6 screws to secure the Mounting Plate.
step 7:
Step 7 . Fan Installation
Place the included TY-100 Fan onto the Heatsink Body. And then secure it by scewing on the four
M3L17 Screws, though the fan's mounting hole.
Step 8:
Step 8 InstaNation completed
Plug In me tan connector to tne CPU PWM Fan socket on tne motherboard. Installation complete
