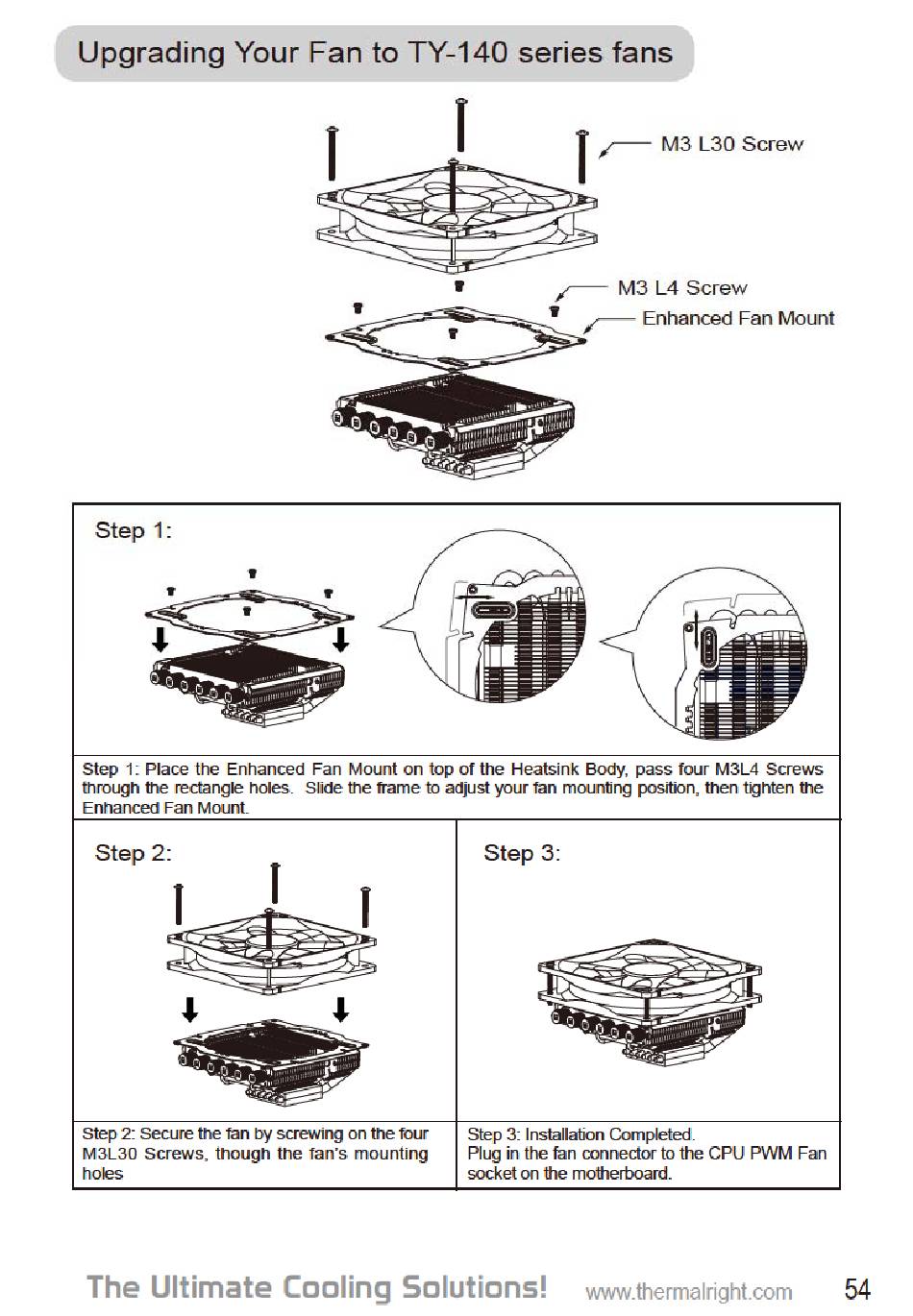

Upgrading Your Fan to TY-140
Step 1 :
Step 1: Place the Enhanced
tnrougn tne rectangle noles. Slide tne trame to adjust your tan mounüng position, then tlgnten tne
Enhanced Fan Mount
step 2:
Step 2: Secure the fan by screwing on the four
M3L30 screws, tnougn tne Tan's mounting
holes
The Ultimate
Fan Mount on top of the Heatsink Body, pass four M3L4 Screws
Cooling Solutions!
series fans
Z—
Z— M3 L4 Screw
Step 3:
Step 3: Installation Completed.
Plug in the fan connector to the CPU PWM Fan
socket on the motherboard
