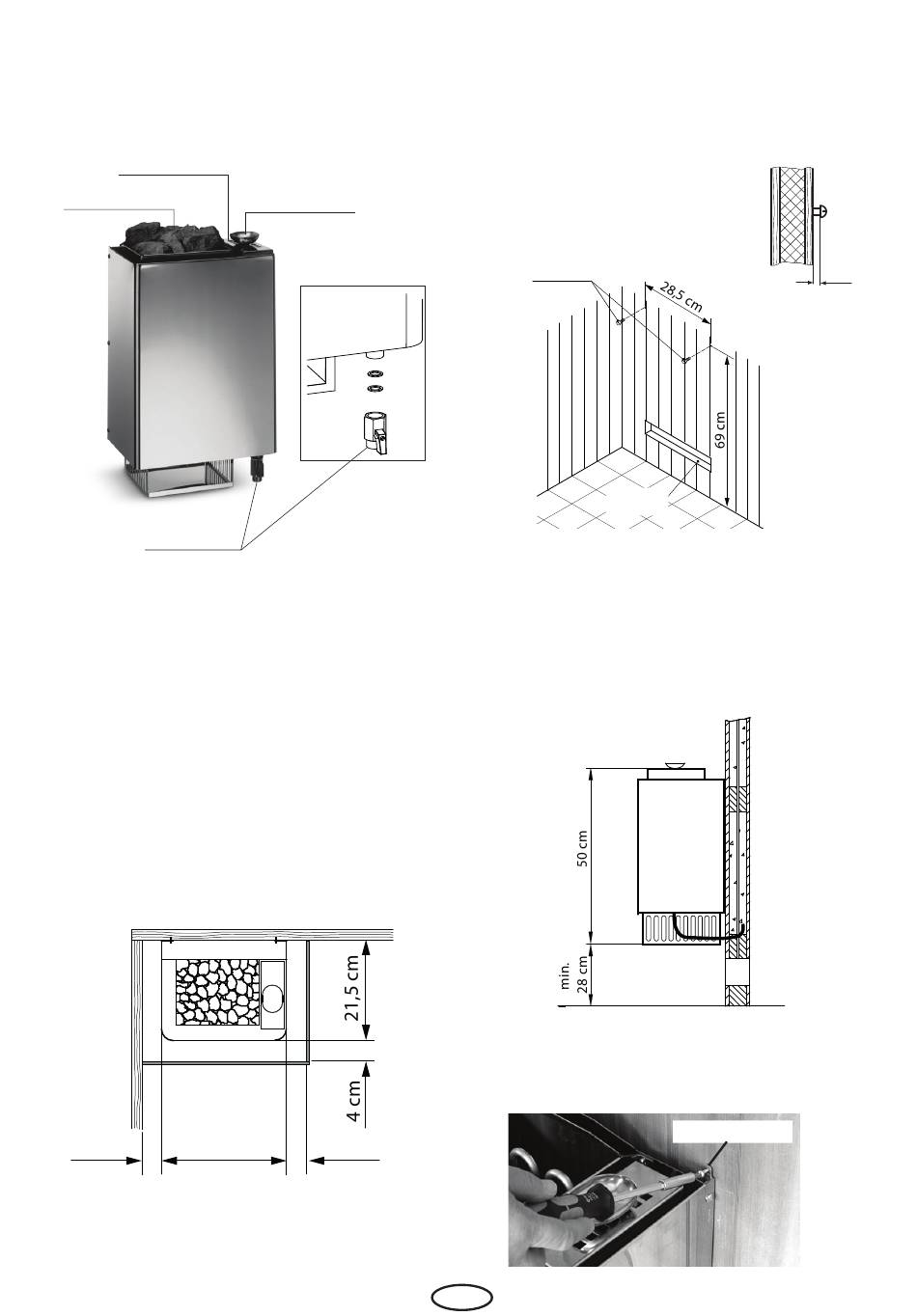

Mechanical installation
Bi-O mini – Installation drain valve
Steam escape
Stone basket
drain valve
Minimum clearances
The minimum inner height of the sauna cabin
should be 1.90 m.
When installing the sauna heater, make sure
that the vertical distance between the upper
edge of the oven and the sauna roof is at least
112 cm
stove guard
4 cm
30 cm
Herb dish
sauna cabin wall
4 cm
1. Tighten the 2 sheet metal screws to the cabin
wall according to the measurements in fig.3
and keep a 3 mm gap between screw head
and wall.
Chipboard screws 5 x 35
2. Connect the power cable as shown in the
circuit diagram. A circuit diagram is provided
on the inside of the connection box.
3. Fit in the sauna heater to the screws with the
suspension slits on the rear side (fig.3)
4. Secure the sauna heater by tightening the
screws (fig.5).
Fig. 1
EN
Air inlet
Securing screw
3 mm
Fig. 2
Fig. 3
Fig. 4
Fig. 5
25
