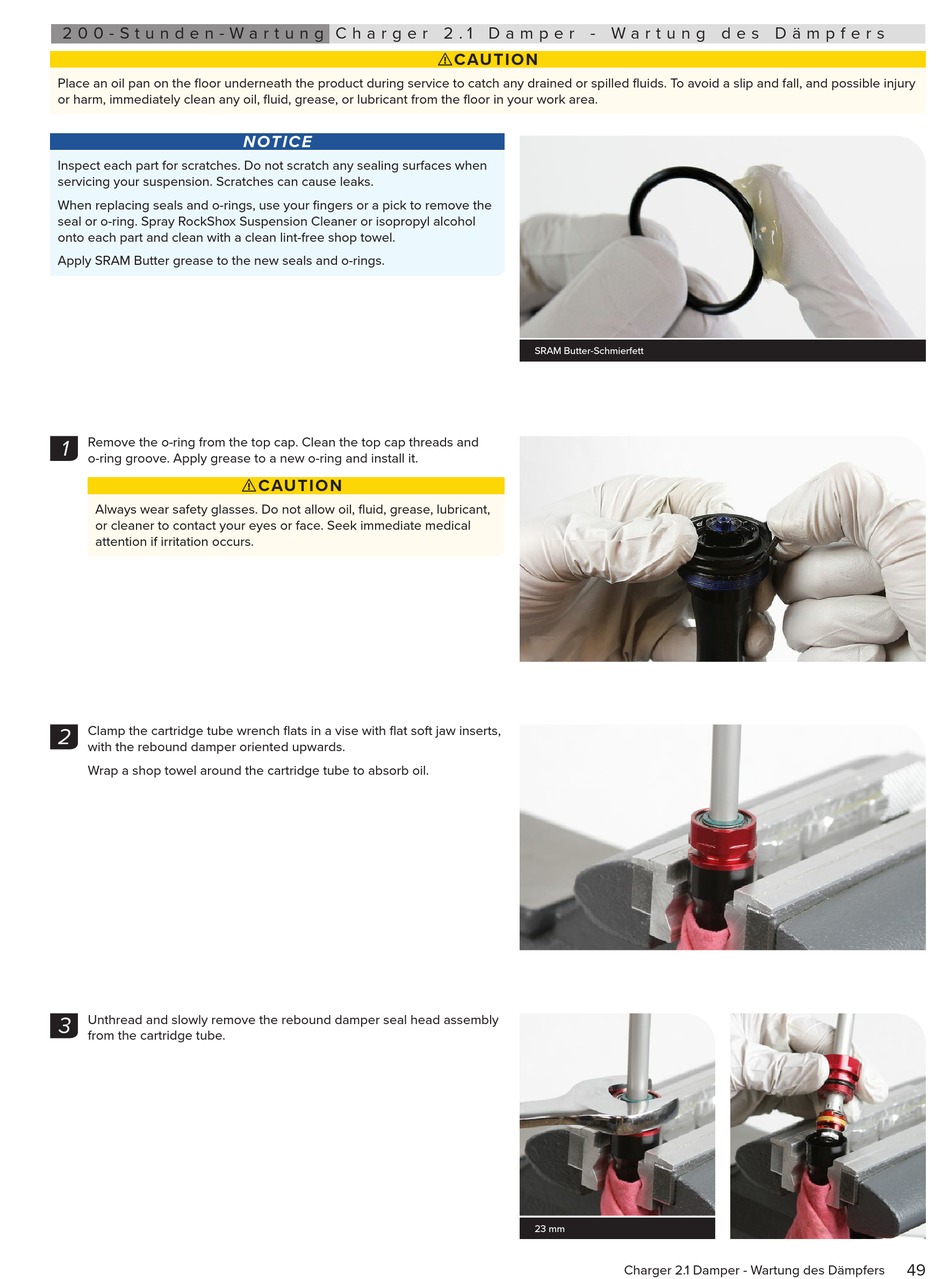

RockShox ZEB Wartungsanleitung Seite 49

2 0 0 - S t u n d e n - W a r t u n g C h a r g e r 2 . 1 D a m p e r - W a r t u n g d e s D ä m p f e r s
Place an oil pan on the floor underneath the product during service to catch any drained or spilled fluids. To avoid a slip and fall, and possible injury
or harm, immediately clean any oil, fluid, grease, or lubricant from the floor in your work area.
Inspect each part for scratches. Do not scratch any sealing surfaces when
servicing your suspension. Scratches can cause leaks.
When replacing seals and o-rings, use your fingers or a pick to remove the
seal or o-ring. Spray RockShox Suspension Cleaner or isopropyl alcohol
onto each part and clean with a clean lint-free shop towel.
Apply SRAM Butter grease to the new seals and o-rings.
1 Remove the o-ring from the top cap. Clean the top cap threads and
o-ring groove. Apply grease to a new o-ring and install it.
Always wear safety glasses. Do not allow oil, fluid, grease, lubricant,
or cleaner to contact your eyes or face. Seek immediate medical
attention if irritation occurs.
2 Clamp the cartridge tube wrench flats in a vise with flat soft jaw inserts,
with the rebound damper oriented upwards.
Wrap a shop towel around the cartridge tube to absorb oil.
3 Unthread and slowly remove the rebound damper seal head assembly
from the cartridge tube.
NOTI CE
⚠CAUTI ON
⚠CAUTI ON
SRAM Butter-Schmierfett
23 mm
Charger 2.1 Damper - Wartung des Dämpfers
49
