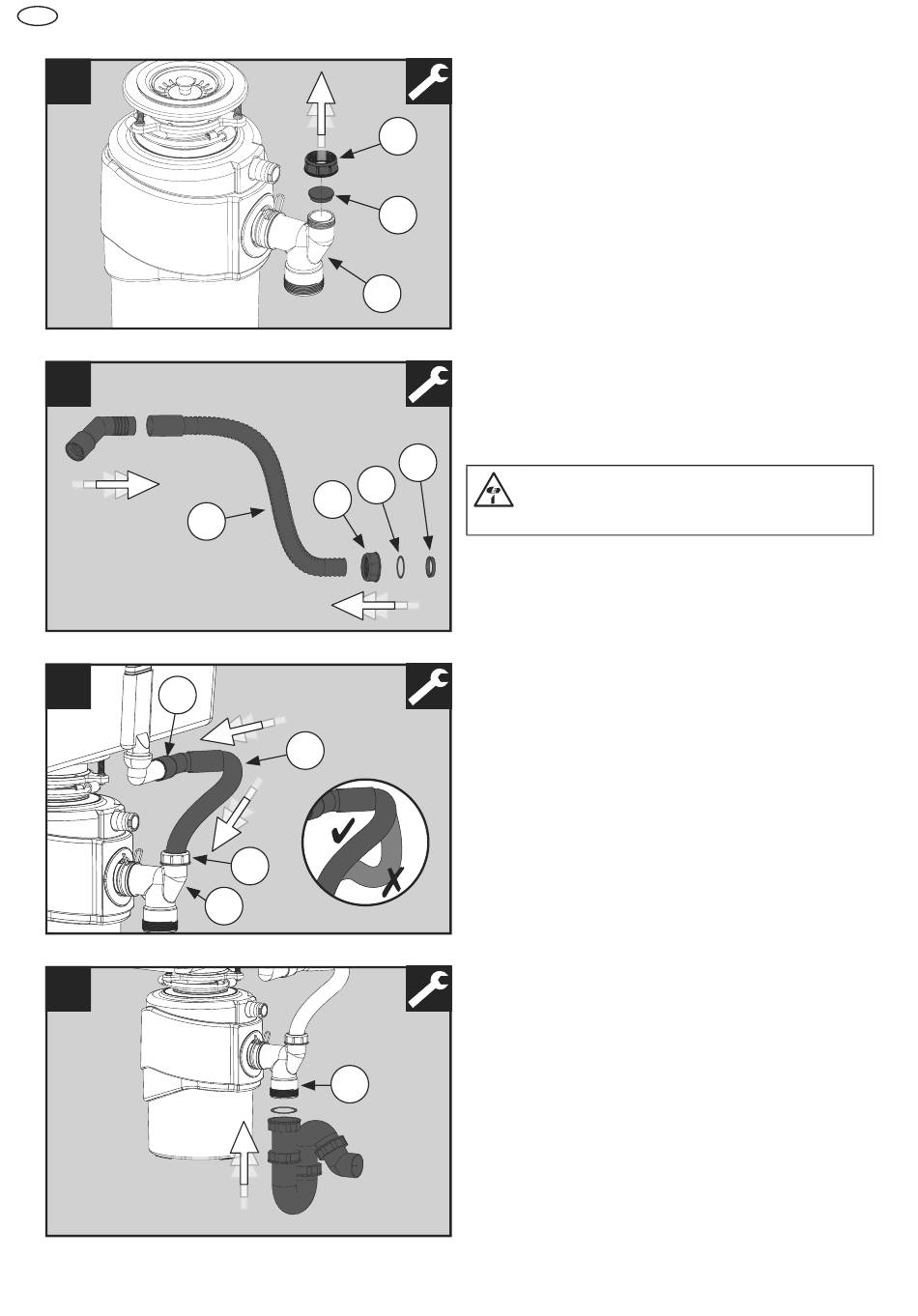

Remove the dummy plug (16b) from the outlet
elbow pipe (16) by loosening the overfl ow nut
16b
(16a).
16
Determine the length of overfl ow hose (17) you
require and trim if necessary.
16d
WARNING - risk of injury
Wear cut protection gloves when
trimming pipes with the blade knife.
Push the overfl ow nut (16a), the seal ring (16c)
and the overfl ow seal (16d) over the end.
Push the overfl ow adapter (18) onto your sink
overfl ow (until it locks into position).
Insert the free end of the overfl ow hose (17)
into the outlet elbow pipe (16) overfl ow
opening and screw the overfl ow nut (16a)
tightly onto the thread.
The overfl ow hose must not sag.
Connect your odour trap/siphon (not included
in scope of delivery) to the lower outlet of the
outlet elbow pipe (16) and to your building
waste water connection.
