Hood installation
Minimum hood distance above cooker must not be less than 650 mm.
A maximum of 750 mm above the cooker is highly recommended for best capture
of cooking impurities.
Distance over 750 mm above the cooker are at the installer's and user's discretion
- providing that ceiling height and flue length permit.

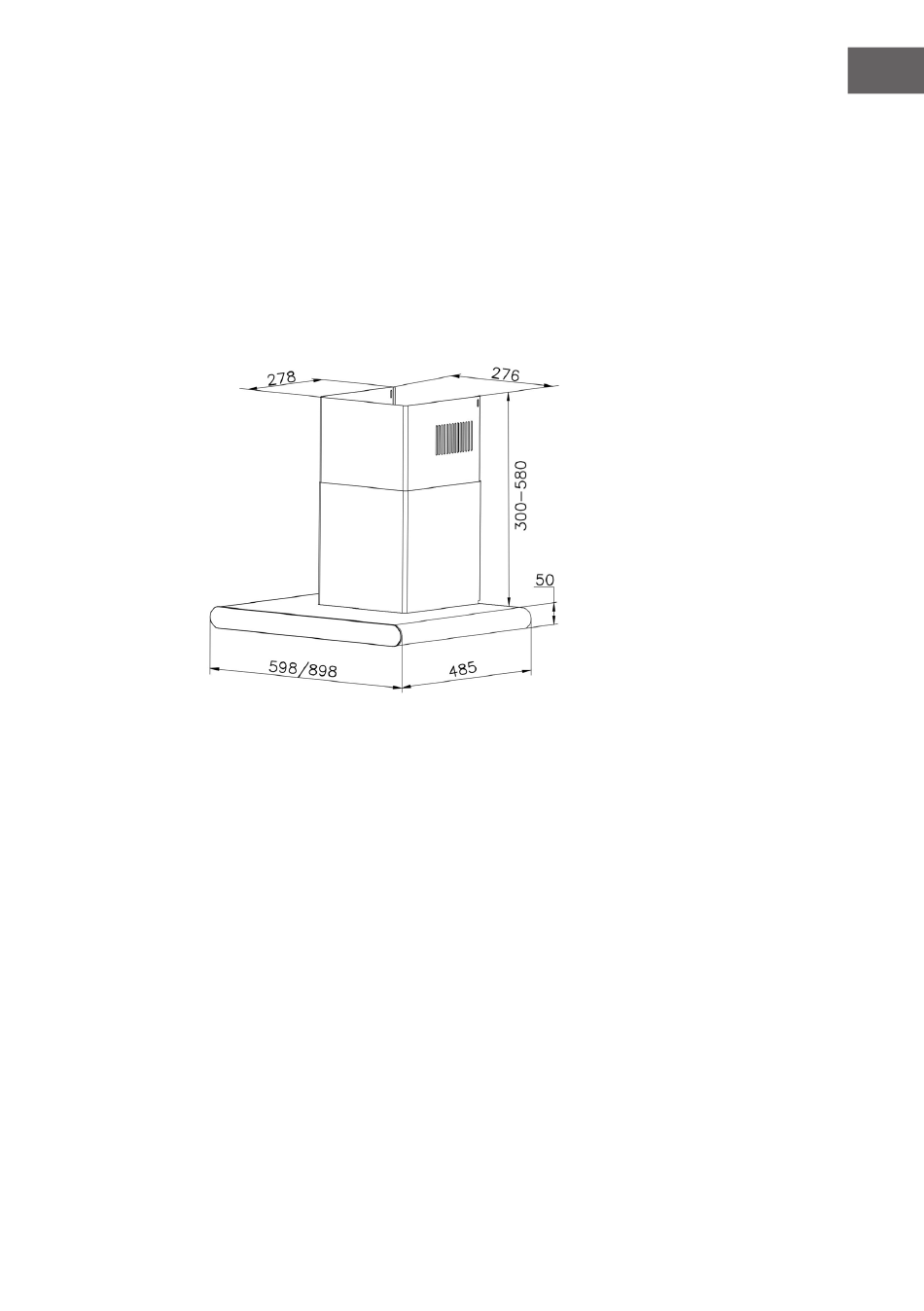

Dimensions
1.
Drill 3 holes in the wall and put three plastic tubes (⌀10x45) on. Use three
ST5x45 screws to fix the hood body top.
2.
Fix the discharge ducting into the air outlet adapter and use two ST2.9x6
screws to fasten.
3.
Hang on the appliance by using hood mounting bracket.
4.
Carefully place the decorative chimney bottom into the recessed area of the
hood body top. Drill two holes in the wall and put two plastic tubes (⌀7x27)
on. Use two ST2.9x14 screws fix in chimney cover I place above.
5.
Carefully slide the decorative chimney top down inside the decorative chimney
bottom. Drill 2 hole in the wall and put 2 plastic tube (⌀6x40) on. Secure the
chimney mounting bracket to the wall by using two ST4.2X30 screws.
6.
Level the hood and secure the chimney with two chimney bracket screws
M4x6.
7.
Drill two holes in the wall and fix hood body bottom by using 2 plastic tube
(⌀6x40) and 2 ST4.2*30 to prevent the appliance from moving.
EN
23
