These instructions apply to all T5S E drives, in all torque/speed.
Field of application: T5S E drive are designed to all types of roller shutters. The installer, who must be a
motorisation and home automation professional, must ensure that the drive product is installed in accordance
with the standards in force in the country in which it is installed such as EN 13659 relating to roller shutters.
Liability: Please read these instructions carefully before installing and using the drive. In addition to
following the instructions given in this guide, the instructions detailed in the attached Safety instructions
document must also be observed. The drive must be installed by a motorisation and home automation
professional, according to instructions from SIMU and the regulations applicable in the country in which it
is commissioned. It is prohibited to use the drive outside the field of application described above. Such use,
and any failure to comply with the instructions given in this guide and in the attached Safety instructions
document, absolves SIMU of any liability and invalidates the warranty. The installer must inform its customers
of the operating and maintenance conditions for the drive and must provide them with the instructions for use
and maintenance, and the attached Safety instructions document, after installing the drive. Any After-Sales
Service operation on the drive must be performed by a motorisation and home automation professional. If in
doubt when installing the drive, or to obtain additional information, contact a SIMU adviser or go to the website
www.simu.com.

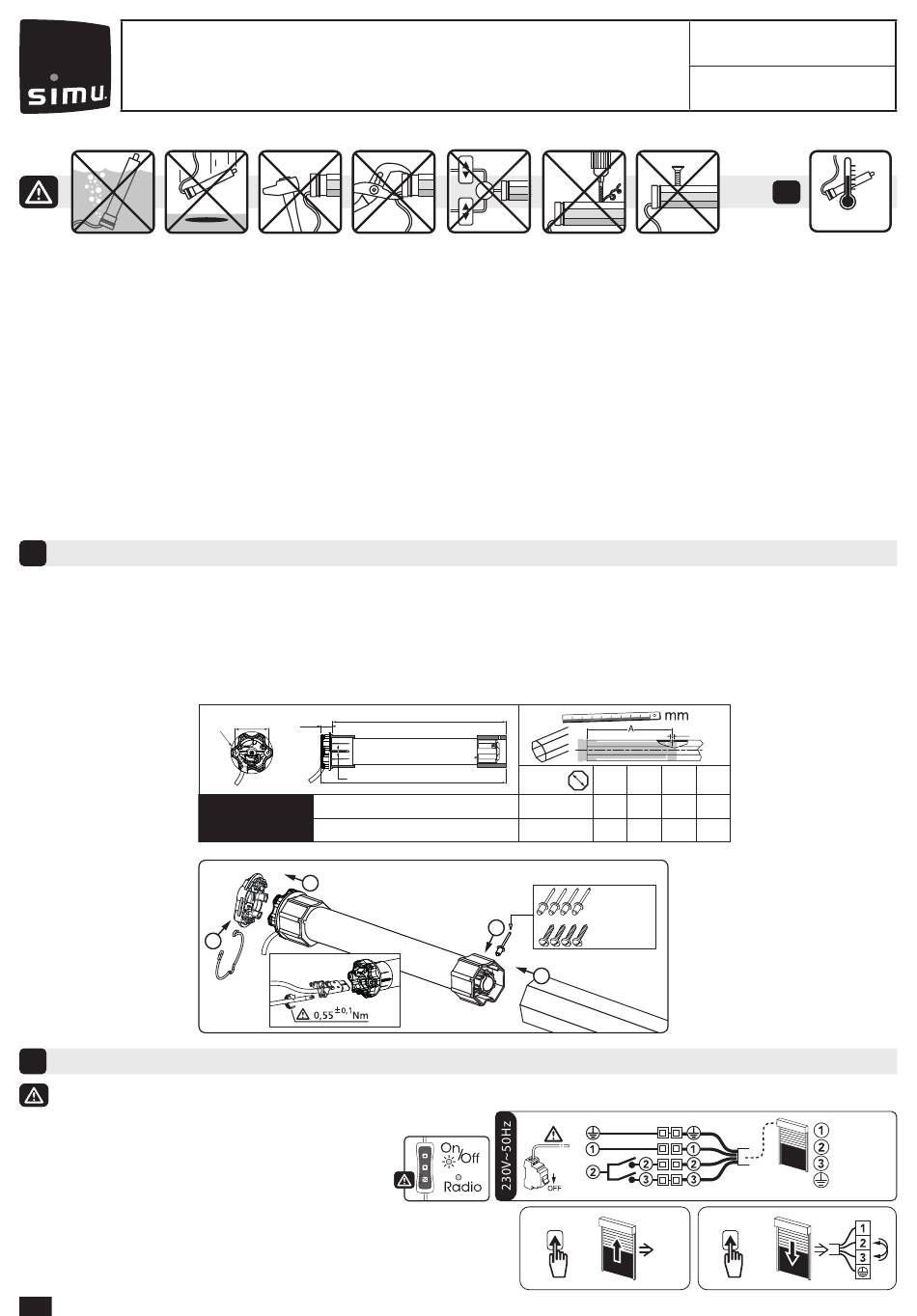

1 INSTALLATION
Instructions which must be followed by the drive and home automation professional installing the
drive:
- Methods of wiring are given by national standards or IEC 60364 standard.
- Cables which pass through a metal wall must be protected and isolated using a sheath or sleeve.
- The cable for the motor can be removed. If it is damaged, replace by the same. The cable may only be
connected to the motor by qualified personnel. The connector is to be assembled without damaging the
contacts. The continuity of the earth connection must be ensured.
Drilling of the tube:
Assembly:
2 ADJUSTMENT OF END LIMITS
During the End limits adjustment, there is a one-second delay in motor operation.
2.1. Connect the motor to the settings switch
(ref.: 2008901).
2.2. Check the rotation direction:
Connect the switch to the mains, then press ▲:
a. If the tube turns in the «up» direction, go to step 2.3.
b. If the tube turns in the «down» direction, invert the Brown
(2) and Black (3) wires on the motor, and repeat the test.
EN
2/4
T5S E
(230V~50HZ)
21
Ø62 48
4
T5S E 08/17 • 10/17 • 15/17
230V~50Hz 20/17 • 25/17 • 35/17 • 50/12
3
4
L1
IP44
L2
Ø min.
47
47
2
1
a
5157764A
EN- ORIGINAL INSTRUCTIONS
4 x ØB / 90°
A ØB L1 L2
583 5 596 617
657 5 670 691
Ø4,8 x 10
STEEL
Ø5 x 10
*
PE
N
L
b
>> OK
i
-20°C / +60°C
Blue
Brown
Black
Green / Yellow
>>
