Part

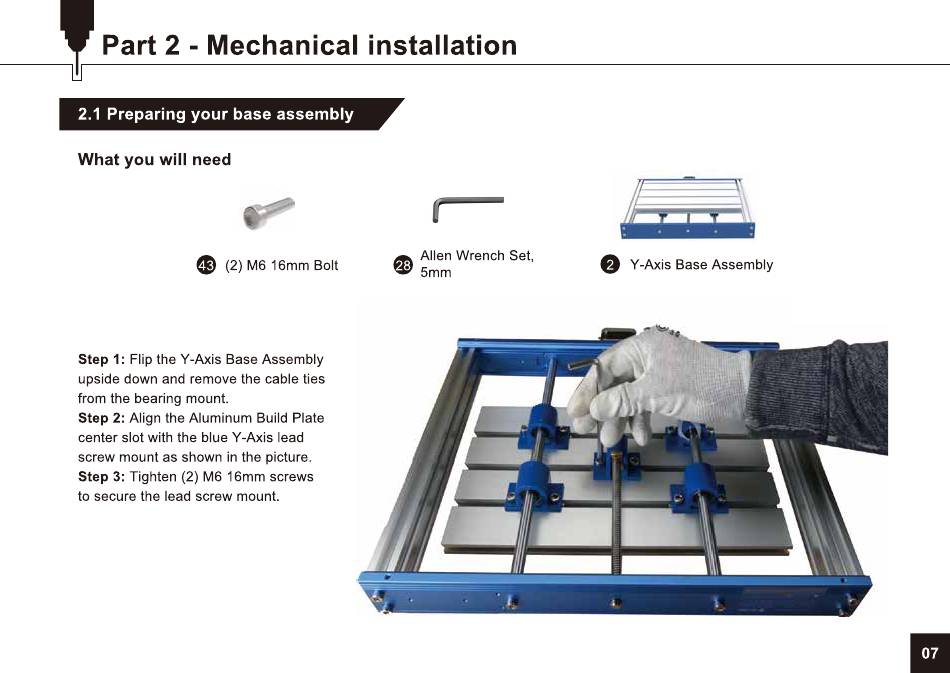

2 - Mechanical
2.1 Preparing
your base assembly
What you will need
2) M6 16mm Bolt
Step 1: Flip the Y-Axis Base Assembly
upside down and remove the cable ties
from the bearing mount.
Step 2: Align the Aluminum
Build Plate
center
slot
with
the
blue
Y-Axis
screw mount as shown in the picture.
Step 3: Tighten (2) M6 16mm screws
to secure
the
lead
screw
mount.
installation
Allen Wrench
lead
Set,
Y-Axis Base Assembly
07
