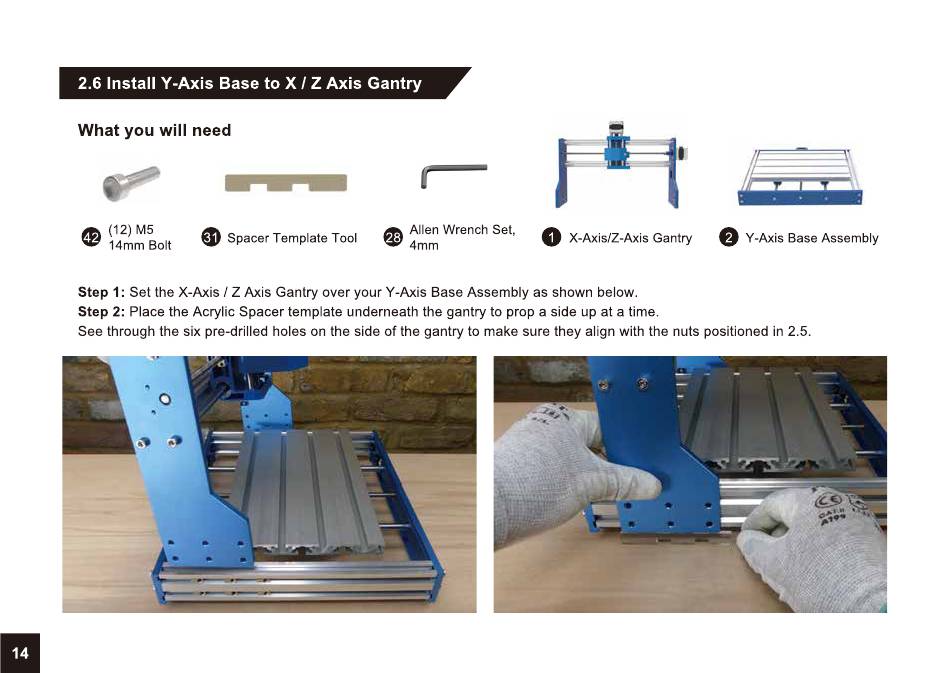

2.6 Install Y-Axis Base to X/ Z Axis Gantry
What you will need
(12) M5
42
14mm
Bolt
Step 1: Set the X-Axis / Z Axis Gantry over your Y-Axis Base Assembly
Step 2: Place the Acrylic Spacer template underneath
See through the six pre-drilled
14
31
Spacer Template Tool
holes on the side of the gantry to make sure they align with the nuts positioned
Allen Wrench
Set,
28
4mm
as shown below.
the gantry to prop a side up at a time.
X-Axis/Z-Axis
Gantry
Y-Axis Base Assembly
in 2.5.
