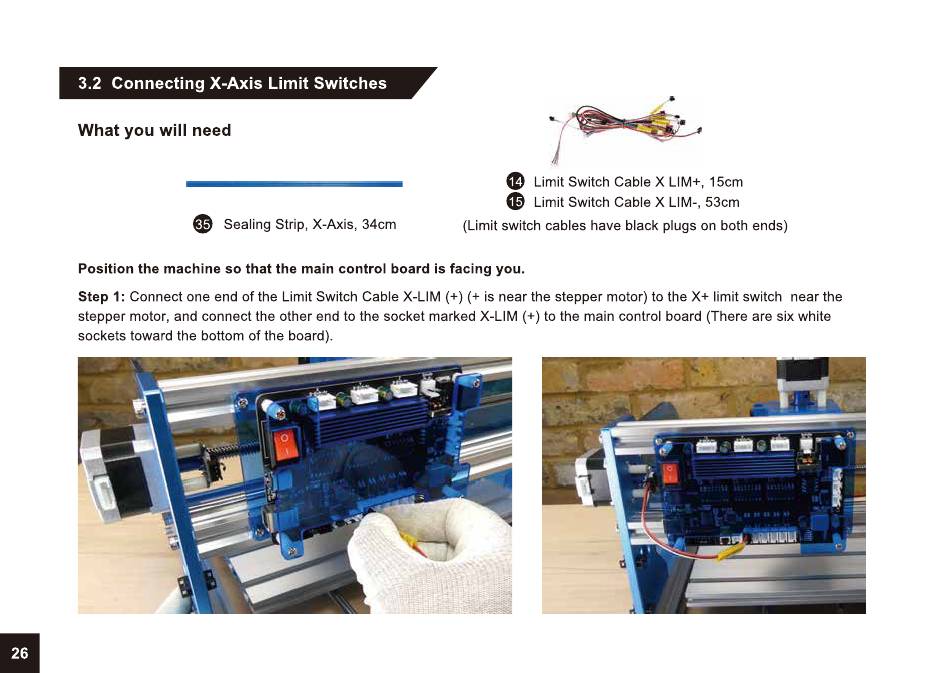

3.2 Connecting X-Axis Limit Switches
What you will need
O LimitSwitch Cable X LIM+, 1 5cm
Limit Switch Cable X LIM-, 53cm
Sealing Strip, X-Axis, 34cm
(Limit switch cables have black plugs on both ends)
Position the machine so that the main control board is facing you.
Step 1: Connect one end of the Limit Switch Cable X-LIM (+) (+ is near the stepper motor) to the X+ limit switch near the
stepper motor, and connect the other end to the socket marked X-LIM (+) to the main control board (There are six white
sockets toward the bottom of the board).
