Part 3 - Wiring

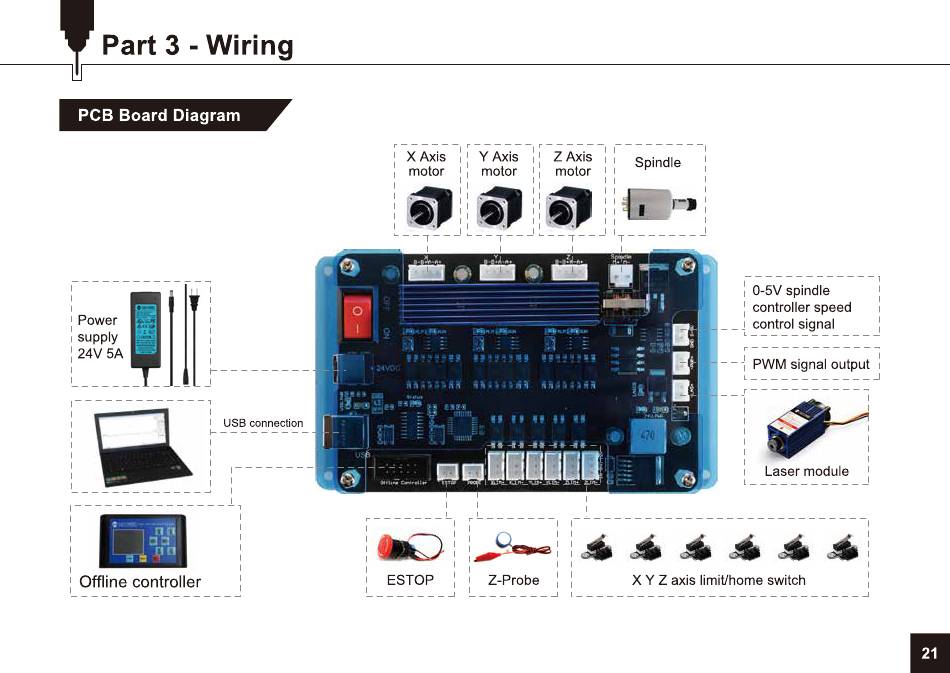

PCB Board Diagram
Power
supply
24V 5A
USB connection
Offline controller
X Axis Y Axis Z Axis
motor motor motor
ESTOP Z-Probe
Spindle
0-5V spindle
controller speed
control signal
PWM signal output
Laser module
X Y Z axis limit/home switch
