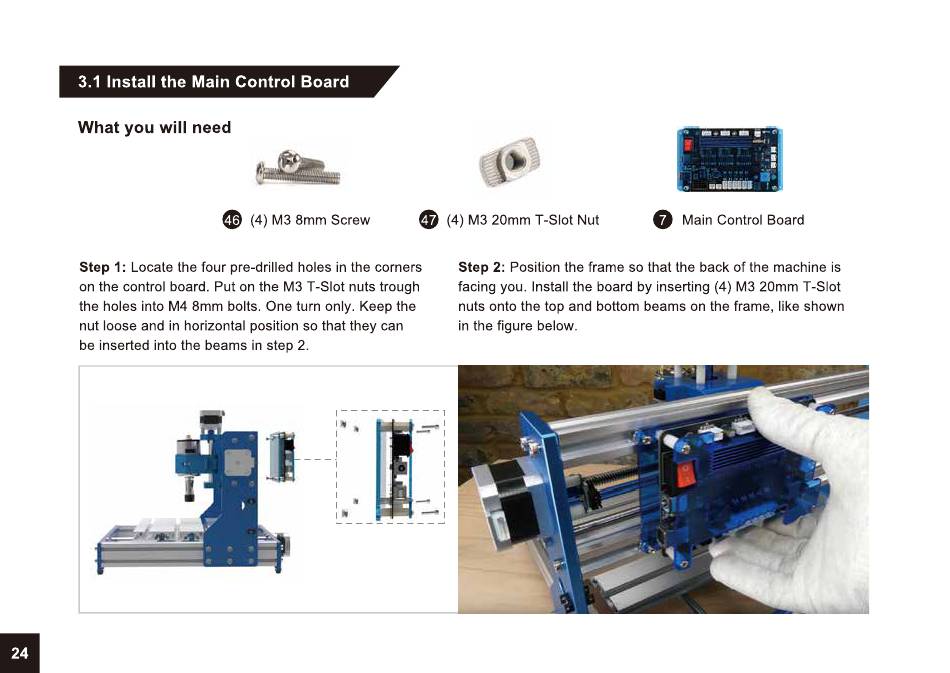

3.1 Install
the
What you will need
Step 1: Locate the four pre-drilled holes in the corners
on the control board. Put on the M3 T -Slot nuts trough
the holes into M4 8mm bolts. One turn only. Keep the
nut loose and in horizontal position so that they can
be inserted into the beams in step 2.
24
Main
Control
Board
(4) M3 8mm Screw
4) M3 20mm T-Slot Nut
Step 2: Position the frame so that the back of the machine is
facing you. Install the board by inserting (4) M3 20mm T-Slot
nuts onto the top and bottom beams on the frame, like shown
in the figure below.
Main
Control
Board
