2.5
Install
T-Slot
Tension
What you will need
Inbusschlüssel,

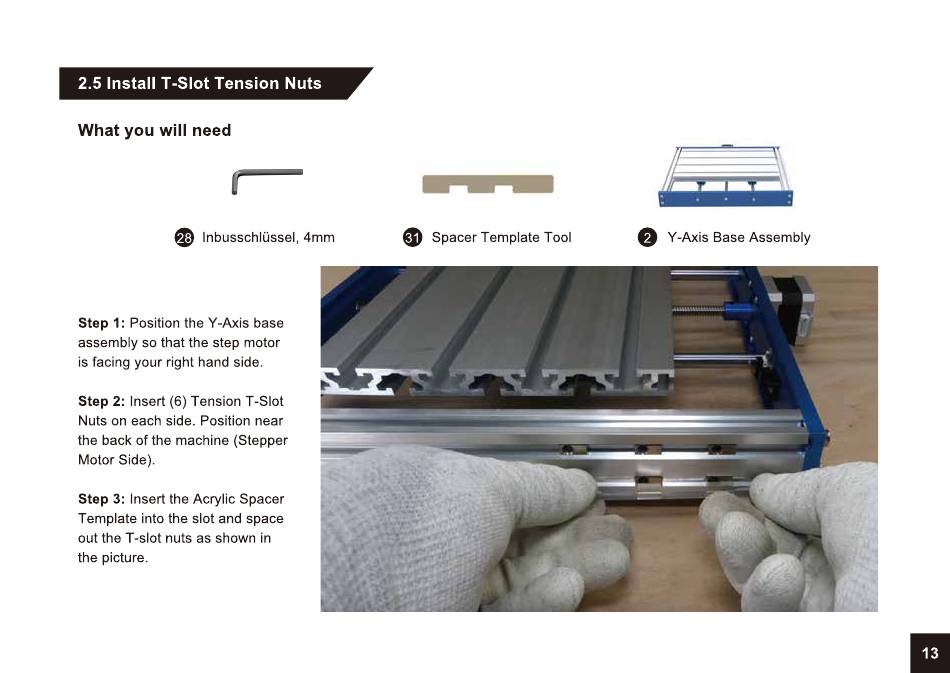

Step 1: Position the Y-Axis base
assembly so that the step motor
is facing your right hand side.
Step 2: Insert (6) Tension T-Slot
Nuts
on each
side.
Position
near
the back of the machine (Stepper
Motor Side).
Step 3: Insert the Acrylic Spacer
Template
into the slot and space
out
the
T-slot
nuts
as shown
the picture
Nuts
Spacer Template
4mm
in
Tool
Y Axis Base Assembly
13
